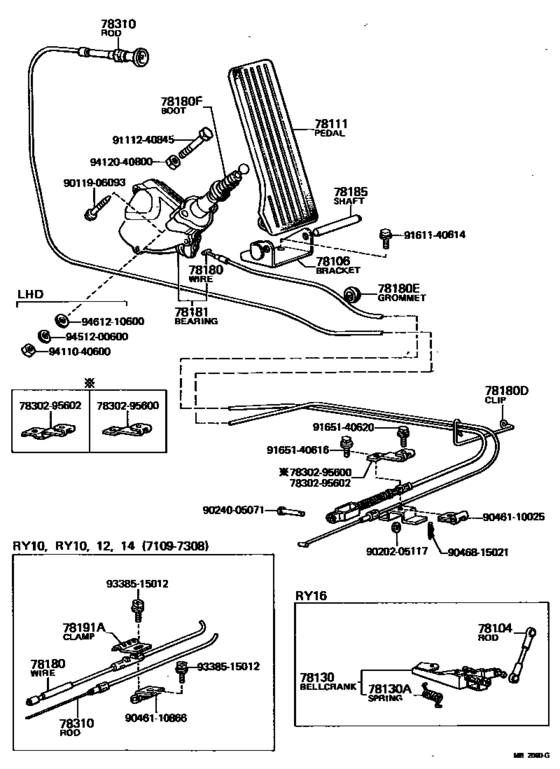

Accelerator Link ([09.1971 - 02.1979] (7109-7902)RY1#) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78106
|
78106
78105-95020
Bracket Sub-Assy, Accelerator Pedal Support
[09.1971 - 02.1979] JY16,RY1#..LHD |
78105-95020 |
— | ||
|
78111
|
78111
78111-95020 Pedal, AcceleratorACCELERATOR [09.1971 - 02.1979] JY16,RY1# |
78111-95020 |
US $23.44 |
||
|
78180
|
78180
78150-95022
Wire Assy, Accelerator
[09.1971 - 03.1973] RY10,12..LHD |
78150-95022 |
— | ||
|
78180
|
78180
78150-95031
Wire Assy, Accelerator
[03.1973 - 09.1973] RY10,12..LHD |
78150-95031 |
— | ||
|
78180
|
78180
78150-95039 Wire Assy, AcceleratorACCELERATOR [09.1973 - 11.1975] RY10,12..LHD |
78150-95039 |
US $85.90 |
||
|
78180
|
78180
78150-95041
Wire Assy, Accelerator
[11.1975 - 02.1979] RY10,12..LHD |
78150-95041 |
— | ||
|
78180D
|
78180D
78169-95010 Clip (For Accelerator Wire)[09.1971 - 02.1975] RY1# |
78169-95010 |
US $6.26 |
||
| replacement | |||||
|
78180D
|
78180D
78169-95011
Clip (For Accelerator Wire)
[09.1971 - 02.1975] RY1# |
78169-95011 |
— | ||
|
78180D
|
78180D
78169-95011
Clip (For Accelerator Wire)
[02.1975 - 11.1975] RY1# |
78169-95011 |
— | ||
|
78180D
|
78180D
78169-95012
Clip (For Accelerator Wire)
[11.1975 - 02.1979] RY1# |
78169-95012 |
— | ||
|
78180E
|
78180E
90480-26043
Grommet (For Accelerator Wire)
[09.1971 - 02.1979] JY16,RY1# |
90480-26043 |
— | ||
|
78180F
|
78180F
78199-95010
Boot (For Accelerator Wire)
[03.1972 - 02.1979] JY16,RY1# |
78199-95010 |
— | ||
|
78181
|
78181
78180-95022
Bearing, Accelerator Pedal Rod Support
[09.1971 - 01.1973] RY10,12..LHD |
78180-95022 |
— | ||
|
78181
|
78181
78180-95027
Bearing, Accelerator Pedal Rod Support
[03.1973 - 09.1973] RY10,12..LHD |
78180-95027 |
— | ||
|
78181
|
78181
78180-95033
Bearing, Accelerator Pedal Rod Support
[09.1973 - 11.1975] RY10,12..LHD |
78180-95033 |
— | ||
|
78181
|
78181
78180-95035
Bearing, Accelerator Pedal Rod Support
[11.1975 - 02.1979] RY10,12..LHD |
78180-95035 |
— | ||
|
78181
|
78181
78180-95092 Bearing, Accelerator Pedal Rod SupportACCELERATOR PEDAL ROD SUPPORT [01.1973 - 03.1973] RY10,12..LHD |
78180-95092 |
US $139.78 |
||
| replacement | |||||
|
78181
|
78181
78180-95027
Bearing, Accelerator Pedal Rod Support
[01.1973 - 03.1973] RY10,12..LHD |
78180-95027 |
— | ||
|
78185
|
78185
90250-06164 Shaft, Accelerator Pedal SupportACCELERATOR PEDAL SUPPORT [09.1971 - 02.1979] JY16,RY1# |
90250-06164 |
US $2.77 |
||
|
78191A
|
78191A
90462-12176
Clamp (For Accelerator Wire Set)
[09.1971 - 02.1979] RY10,12 |
90462-12176 |
— | ||
|
78310
|
78310
78310-95023
Cable Assy, Choke
[09.1971 - 09.1973] RY1#..LHD |
78310-95023 |
— | ||
|
78310
|
78310
78310-95025
Cable Assy, Choke
[09.1973 - 02.1979] RY10,12..LHD |
78310-95025 |
— | ||
|
7830295600
|
7830295600
78302-95600
Knob Sub-assy, Choke Rod
|
78302-95600 |
— | ||
|
7830295602
|
7830295602
78302-95602
Bracket, Choke Rod
|
78302-95602 |
— | ||
|
9011906093
|
9011906093
90119-06093 New Genuine Part |
90119-06093 |
US $2.18 |
||
| replacement | |||||
|
9011906093
|
9011906093
91651-60645 BOLT |
91651-60645 |
US $1.79 |
||
|
9020205117
|
9020205117
90202-05117 New Genuine Part |
90202-05117 |
US $2.18 |
||
|
9024005071
|
9024005071
90240-05071
Pin, Accelerator Wire Set
|
90240-05071 |
— | ||
|
9046110025
|
9046110025
90461-10025 Clamp (For Accelerator Wire Set) |
90461-10025 |
US $3.35 |
||
|
9046110866
|
9046110866
90461-10866
New Genuine Part
|
90461-10866 |
— | ||
|
9046815021
|
9046815021
90468-15021 Clip(For Front Disc Brake Anti-Rattle) |
90468-15021 |
US $1.75 |
||
|
9111240845
|
9111240845
91112-40845 New Genuine Part |
91112-40845 |
US $2.18 |
||
| replacement | |||||
|
9111240845
|
9111240845
91111-50845 BOLT |
91111-50845 |
US $3.06 |
||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9338515012
|
9338515012
93385-15012 SCREW |
93385-15012 |
US $2.87 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9461210600
|
9461210600
94612-10600 New Genuine Part |
94612-10600 |
US $4.30 |
||
