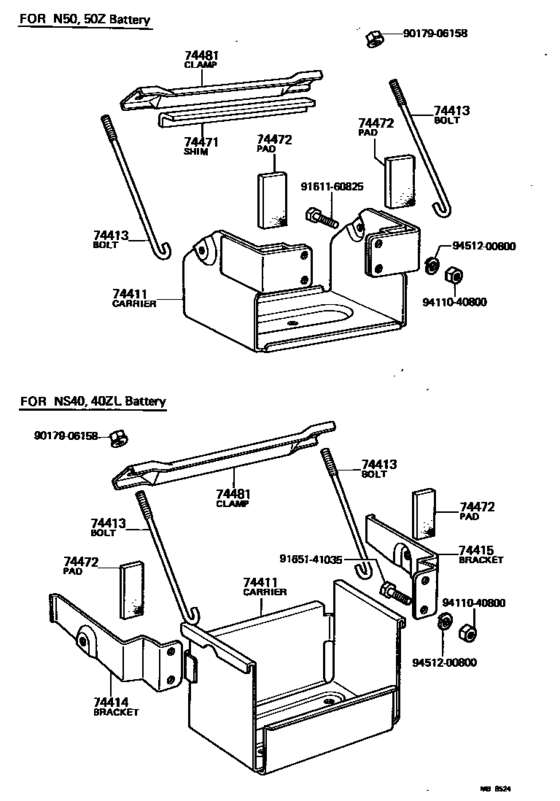

Battery Carrier ([09.1971 - 02.1979] (7109-7902)RY1#) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74411
|
74411
74411-25020 Carrier, BatteryBATTERY [09.1971 - 02.1979] RY1# N50 |
74411-25020 |
US $193.65 |
||
|
74411
|
74411
74421-25010 Carrier, Battery[09.1971 - 02.1979] RY1# NS40ZL |
74421-25010 |
US $109.20 |
||
|
74413
|
74413
74451-25020 Bolt, Battery Clamp[09.1971 - 02.1979] RY1# |
74451-25020 |
US $4.30 |
||
|
74414
|
74414
74411-25010 Bracket, Battery, FrontBATTERY, FR [09.1971 - 11.1976] RY1# 12V.NS40ZL |
74411-25010 |
US $9.46 |
||
| replacement | |||||
|
74414
|
74414
74411-25011 Bracket, Battery, Front[09.1971 - 11.1976] RY1# 12V.NS40ZL |
74411-25011 |
US $8.74 |
||
|
74414
|
74414
74411-25011 Bracket, Battery, Front[11.1976 - 02.1979] RY1# 12V.NS40ZAL |
74411-25011 |
US $8.74 |
||
|
74415
|
74415
74412-25010 Bracket, Battery, RearBATTERY, REAR [09.1971 - 11.1976] RY1# 12V.NS40ZL |
74412-25010 |
US $10.63 |
||
| replacement | |||||
|
74415
|
74415
74412-25011 Bracket, Battery, Rear[09.1971 - 11.1976] RY1# 12V.NS40ZL |
74412-25011 |
US $9.76 |
||
|
74415
|
74415
74412-25011 Bracket, Battery, Rear[11.1976 - 02.1979] RY1# 12V.NS40ZAL |
74412-25011 |
US $9.76 |
||
|
74471
|
74471
74471-35010
Shim, Battery Set Angle
[09.1971 - 02.1979] RY1# N50 |
74471-35010 |
— | ||
|
74472
|
74472
74472-25010 Pad, Battery Side[09.1971 - 02.1979] RY1# 54X20 |
74472-25010 |
US $3.20 |
||
|
74472
|
74472
74472-25020
Pad, Battery Side
[09.1971 - 02.1979] RY1# 70X40 |
74472-25020 |
— | ||
|
74481
|
74481
74413-36010
Clamp, Battery Hold Down
[09.1971 - 02.1979] RY1# N50 |
74413-36010 |
— | ||
|
74481
|
74481
74453-25020 Clamp, Battery Hold Down[09.1971 - 02.1979] RY1# NS40ZL |
74453-25020 |
US $33.34 |
||
| replacement | |||||
|
74481
|
74481
74453-25080 Bar, Battery Set Plate[09.1971 - 02.1979] RY1# NS40ZL |
74453-25080 |
US $34.78 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9165141035
|
9165141035
91651-41035 New Genuine Part |
91651-41035 |
US $1.46 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9451200808
|
9451200808
94512-00808
New Genuine Part
|
94512-00808 |
— | ||
