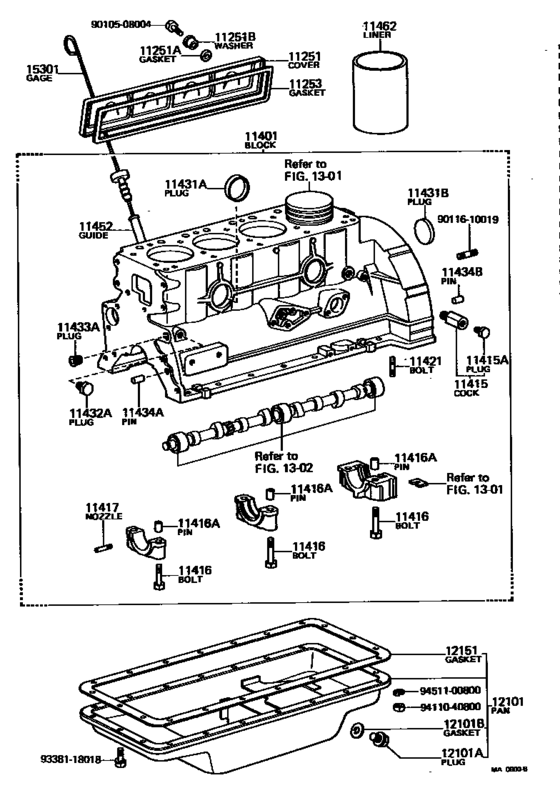

Cylinder Block ([09.1971 - 11.1975] (7109-7511)12R) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11251
|
11251
11203-31010
Cover, Valve Push Rod
[11.1975 - 08.1978] 12R..RY10,12 |
11203-31010 |
— | ||
| replacement | |||||
|
11251
|
11251
11203-31011
Cover, Valve Push Rod
[11.1975 - 08.1978] 12R..RY10,12 |
11203-31011 |
— | ||
|
11251
|
11251
11203-31011
Cover, Valve Push Rod
[08.1978 - 02.1979] 12R..RY10,12 |
11203-31011 |
— | ||
|
11251
|
11251
11251-31010
Cover, Valve Push Rod
[09.1971 - 11.1975] 12R..RY10,12 |
11251-31010 |
— | ||
|
11251A
|
11251A
90430-07002
Gasket(For Valve Push Rod Cover Bolt)
[08.1978 - 02.1979] 12R..RY10,12 |
90430-07002 |
— | ||
|
11251A
|
11251A
90430-07121
Gasket(For Valve Push Rod Cover Bolt)
[09.1971 - 08.1978] 12R,5R..RY1# |
90430-07121 |
— | ||
|
11251B
|
11251B
90210-08006 Washer, Seal(For Valve Push Rod Cover Bolt)[09.1971 - 02.1979] 12R,5R..RY1# |
90210-08006 |
US $2.48 |
||
|
11253
|
11253
11253-31010
Gasket, Valve Push Rod Cover
[09.1971 - 02.1978] 12R..RY10,12 |
11253-31010 |
— | ||
| replacement | |||||
|
11253
|
11253
11253-31011
Gasket, Valve Push Rod Cover
[09.1971 - 02.1978] 12R..RY10,12 |
11253-31011 |
— | ||
|
11253
|
11253
11253-31011
Gasket, Valve Push Rod Cover
[02.1978 - 02.1979] 12R..RY10,12 |
11253-31011 |
— | ||
|
11401
|
11401
11401-39125
Block Sub-Assy, Cylinder
[09.1971 - 11.1975] 12R..RY10,12 |
11401-39125 |
— | ||
|
11401
|
11401
11401-39126 Block Sub-Assy, CylinderCYLINDER [11.1975 - 08.1978] 12R..RY10,12 |
11401-39126 |
US $2,387.84 |
||
| replacement | |||||
|
11401
|
11401
11401-39127 Block Sub-Assy, Cylinder[11.1975 - 08.1978] 12R..RY10,12 |
11401-39127 |
US $2,387.84 |
||
|
11401
|
11401
11401-39127 Block Sub-Assy, Cylinder[08.1978 - 02.1979] 12R..RY10,12 |
11401-39127 |
US $2,387.84 |
||
|
11415
|
11415
96431-03833
Cock Sub-Assy, Water Drain(For Cylinder Block)
[09.1971 - 02.1979] 12R..RY10,12 |
96431-03833 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[09.1971 - 02.1979] 12R..RY10,12 |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[09.1971 - 02.1979] 2J..JY16; 12R,5R..RY1# |
96431-23814 |
from US $6.94 |
||
|
11416
|
11416
90910-02032 Bolt(For Crankshaft Bearing Cap Set)[09.1971 - 08.1978] 12R..RY10,12 12-1.25PX62-21 |
90910-02032 |
US $3.99 |
||
|
11416
|
11416
90910-02064 Bolt(For Crankshaft Bearing Cap Set)[08.1978 - 02.1979] 12R..RY10,12 12-1.25PX62-21 |
90910-02064 |
US $4.22 |
||
| replacement | |||||
|
11416
|
11416
90910-02032 Bolt(For Crankshaft Bearing Cap Set)[08.1978 - 02.1979] 12R..RY10,12 12-1.25PX62-21 |
90910-02032 |
US $3.99 |
||
|
11416A
|
11416A
90253-15005 Pin, Ring(For Crankshaft Bearing Cap Set)[09.1971 - 02.1979] 2J..JY16; 12R..RY10,12 |
90253-15005 |
from US $1.56 |
||
|
11417
|
11417
90915-01002 Nozzle, Oil[09.1971 - 02.1979] 12R..RY10,12 |
90915-01002 |
US $4.51 |
||
|
11421
|
11421
90116-08229 Bolt, Stud(For Oil Pan)[09.1971 - 02.1979] 12R..RY10,12 L=27,S=14&8 |
90116-08229 |
US $2.48 |
||
|
11431A
|
11431A
90331-50015
Plug, Tight, No.1
[09.1971 - 01.1974] 2J..JY16 OD=50; 12R..RY10,12 OD=50 |
90331-50015 |
— | ||
| replacement | |||||
|
11431A
|
11431A
96411-45000 Plug, Tight, No.1(For Cam Housing)[09.1971 - 01.1974] 2J..JY16 OD=50; 12R..RY10,12 OD=50 |
96411-45000 |
from US $3.84 |
||
|
11431A
|
11431A
96411-45000 Plug, Tight, No.1(For Cam Housing)[01.1974 - 08.1977] 2J..JY16 OD=50; 12R..RY10,12 OD=50 |
96411-45000 |
from US $3.84 |
||
|
11431B
|
11431B
90331-30013
Plug, Tight, No.1
[09.1971 - 01.1974] 12R..RY10,12 OD=30 |
90331-30013 |
— | ||
| replacement | |||||
|
11431B
|
11431B
96411-43000 Plug, Tight, No.1[09.1971 - 01.1974] 12R..RY10,12 OD=30 |
96411-43000 |
from US $3.67 |
||
|
11431B
|
11431B
96411-43000 Plug, Tight, No.1[01.1974 - 02.1979] 12R..RY10,12 OD=30 |
96411-43000 |
from US $3.67 |
||
|
11432A
|
11432A
90345-51025 Plug, W/head Taper Screw, No.2[09.1971 - 02.1979] 12R..RY10,12 |
90345-51025 |
US $3.76 |
||
|
11433A
|
11433A
90344-53011 Plug, W/head Taper Screw, No.1[08.1978 - 02.1979] 12R..RY10,12 |
90344-53011 |
US $4.30 |
||
|
11433A
|
11433A
90345-53026 Cock Sub-Assy, Water Drain(For Cylinder Block)STRAIGHT, NO.1 [09.1971 - 11.1972] 12R..RY10,12 |
90345-53026 |
US $7.28 |
||
| replacement | |||||
|
11433A
|
11433A
90345-53030 Cock Sub-Assy, Water Drain(For Cylinder Block)[09.1971 - 11.1972] 12R..RY10,12 |
90345-53030 |
US $8.21 |
||
|
11433A
|
11433A
90345-53030 Cock Sub-Assy, Water Drain(For Cylinder Block)[11.1972 - 08.1978] 12R..RY10,12 |
90345-53030 |
US $8.21 |
||
|
11434A
|
11434A
90250-10052 Pin, Straight(For Flywheel Housing)[09.1971 - 06.1974] 12R..RY10,12 L=20,OD=10,L=20,OD=10 |
90250-10052 |
US $3.06 |
||
|
11434A
|
11434A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[06.1974 - 02.1979] 12R..RY10,12 L=22,OD=10,L=22,OD=10 |
90250-10192 |
from US $0.99 |
||
|
11434B
|
11434B
90250-10052 Pin, Straight(For Flywheel Housing)[09.1971 - 06.1974] 12R,5R..RY1# L=20,OD=10,L=20,OD=10 |
90250-10052 |
US $3.06 |
||
|
11434B
|
11434B
90250-10192 Pin, Straight(For Timing Gear Cover Set)[06.1974 - 02.1979] 12R..RY10,12 L=22,OD=10,L=22,OD=10 |
90250-10192 |
from US $0.99 |
||
|
11452
|
11452
11452-31010
Guide, Oil Level Gage
[03.1972 - 11.1978] 12R..RY10,12 |
11452-31010 |
— | ||
|
11452
|
11452
11452-31020 Guide, Oil Level Gage[11.1978 - 02.1979] 12R..RY10,12 |
11452-31020 |
US $12.23 |
||
|
11452
|
11452
11452-40010 Guide, Oil Level Gage[09.1971 - 03.1972] 12R..RY1# |
11452-40010 |
US $10.31 |
||
|
11462
|
11462
11462-31020 Liner, CylinderCYLINDER [09.1971 - 11.1975] 12R..RY10,12 O/S 4.00 |
11462-31020 |
US $93.18 |
||
|
12101
|
12101
12101-39025
Pan Sub-Assy, Oil
[09.1971 - 12.1972] 12R..RY10,12 |
12101-39025 |
— | ||
| replacement | |||||
|
12101
|
12101
12101-39028 Pan Sub-Assy, Oil[09.1971 - 12.1972] 12R..RY10,12 |
12101-39028 |
US $234.42 |
||
|
12101
|
12101
12101-39026 Pan Sub-Assy, OilOIL [12.1972 - 03.1975] 12R..RY10,12 |
12101-39026 |
US $214.03 |
||
| replacement | |||||
|
12101
|
12101
12101-39028 Pan Sub-Assy, Oil[12.1972 - 03.1975] 12R..RY10,12 |
12101-39028 |
US $234.42 |
||
|
12101
|
12101
12101-39027 Pan Sub-Assy, OilOIL [03.1975 - 11.1978] 12R..RY10,12 |
12101-39027 |
US $230.05 |
||
| replacement | |||||
|
12101
|
12101
12101-39028 Pan Sub-Assy, Oil[03.1975 - 11.1978] 12R..RY10,12 |
12101-39028 |
US $234.42 |
||
|
12101
|
12101
12101-39245 Pan Sub-Assy, Oil[11.1978 - 02.1979] 12R..RY10,12 |
12101-39245 |
US $225.68 |
||
| replacement | |||||
|
12101
|
12101
12101-39246 Pan Sub-Assy, Oil[11.1978 - 02.1979] 12R..RY10,12 |
12101-39246 |
US $221.31 |
||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[03.1975 - 02.1979] 12R,5R..RY1# |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[03.1975 - 02.1979] 12R,5R..RY1# |
90033-41020 |
from US $2.18 |
||
|
12101A
|
12101A
90341-25054 Plug(For Oil Pan Drain)[09.1971 - 09.1974] 2J..JY16; 12R,5R..RY1# |
90341-25054 |
from US $8.99 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[03.1975 - 02.1979] 12R,5R..RY1# |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[03.1975 - 02.1979] 12R,5R..RY1# |
90430-18023 |
from US $1.03 |
||
|
12101B
|
12101B
90430-25013
Gasket(For Oil Pan Drain Plug)
[09.1971 - 09.1974] 2J..JY16; 12R,5R..RY1# |
90430-25013 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-25003 Gasket(For Oil Pan Drain Plug)[09.1971 - 09.1974] 2J..JY16; 12R,5R..RY1# |
90430-25003 |
from US $1.27 |
||
|
12151
|
12151
12151-30010
Gasket, Oil Pan
[09.1971 - 02.1979] 12R..RY10,12 |
12151-30010 |
— | ||
|
15301
|
15301
15301-31040 Gage Sub-Assy, Oil LevelOIL LEVEL [09.1971 - 11.1978] 12R..RY10,12 |
15301-31040 |
US $13.69 |
||
|
15301
|
15301
15301-31050 Gage Sub-Assy, Oil Level[11.1978 - 02.1979] 12R..RY10,12 |
15301-31050 |
US $12.23 |
||
|
9010508004
|
9010508004
90105-08004 New Genuine Part |
90105-08004 |
US $2.18 |
||
| replacement | |||||
|
9010508004
|
9010508004
90105-08024 New Genuine Part |
90105-08024 |
US $1.75 |
||
|
9011610019
|
9011610019
90116-10019 Bolt, Stud(For Manifold To Exhaust Pipe) |
90116-10019 |
US $2.48 |
||
|
9338118018
|
9338118018
93381-18018 New Genuine Part |
93381-18018 |
US $2.51 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
