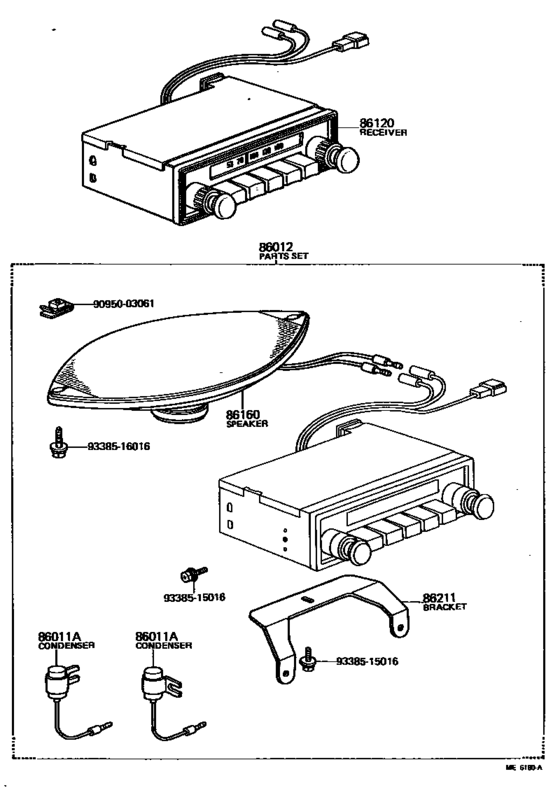

Radio Receiver & Amplifier & Condenser ([03.1975 - 02.1979] (7503-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86011A
|
86011A
90980-04011
Condenser, Radio Setting
[09.1971 - 02.1979] JY16,RY1# CONNECTOR : PLUG |
90980-04011 |
— | ||
|
86012
|
86012
86012-29015
Parts Set, Radio Setting
[03.1975 - 02.1979] JY16,RY1# |
86012-29015 |
— | ||
|
86120
|
86120
86120-35024
Receiver Assy, Radio
[09.1971 - 03.1975] JY16,RY1# |
86120-35024 |
— | ||
| replacements | |||||
|
86120
|
86120
86120-35025
Receiver Assy, Radio
[09.1971 - 03.1975] JY16,RY1# |
86120-35025 |
— | ||
|
86120
|
86120
86215-25020
Bracket, Radio, No.1
[09.1971 - 03.1975] JY16,RY1# |
86215-25020 |
— | ||
|
86120
|
86120
86215-36011
Bracket, Radio, No.3
[09.1971 - 03.1975] JY16,RY1# |
86215-36011 |
— | ||
|
86120
|
86120
86215-89107
Bracket, Radio, No.3
[09.1971 - 03.1975] JY16,RY1# |
86215-89107 |
— | ||
|
86120
|
86120
86120-35025
Receiver Assy, Radio
[03.1975 - 02.1979] JY16,RY1# |
86120-35025 |
— | ||
|
86160
|
86160
86160-25010
Speaker Assy, Front No.1
[09.1971 - 03.1975] JY16,RY1# |
86160-25010 |
— | ||
| replacement | |||||
|
86160
|
86160
86160-25011
Speaker Assy, Front No.1
[09.1971 - 03.1975] JY16,RY1# |
86160-25011 |
— | ||
|
86160
|
86160
86160-25011
Speaker Assy, Front No.1
[03.1975 - 02.1979] JY16,RY1# |
86160-25011 |
— | ||
|
86211
|
86211
86215-25020
Bracket, Radio, No.1
[03.1975 - 02.1979] JY16,RY1# |
86215-25020 |
— | ||
|
9095003061
|
9095003061
90950-03061
New Genuine Part
|
90950-03061 |
— | ||
|
9338515016
|
9338515016
93385-15016 New Genuine Part |
93385-15016 |
US $1.43 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
