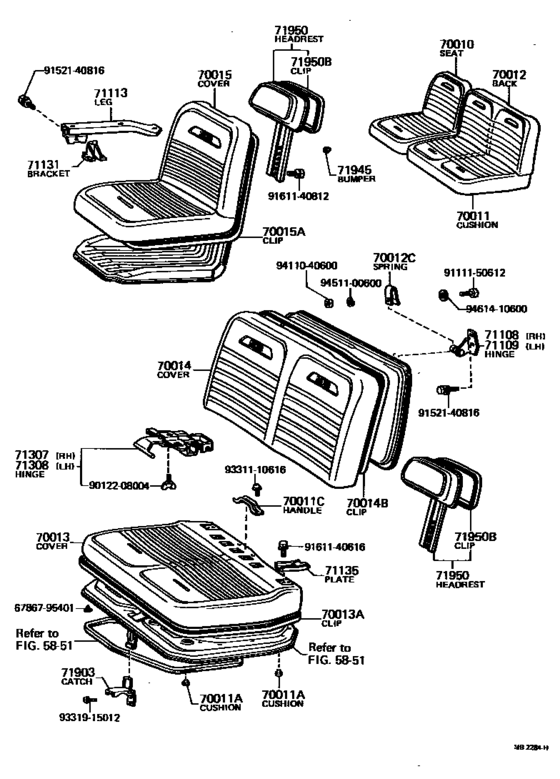

Seat & Seat Track ([09.1971 - 05.1976] (7109-7605)LHD) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
70010
|
70010
71100-95035-01
Seat Assy, No.1
[09.1971 - 05.1976] JY16,RY1#..LHD RH. BLACK,BLACK |
71100-95035-01 |
— | ||
|
70011
|
70011
71410-95024
Cushion Assy, No.1 Seat
[05.1976 - 02.1979] JY16,RY1#..LHD LH. |
71410-95024 |
— | ||
|
70011
|
70011
71420-95024-01
Cushion Assy, No.1 Seat
[09.1971 - 05.1976] RY1#..LHD BLACK,LH.,BLACK |
71420-95024-01 |
— | ||
|
70011
|
70011
71420-95027
Cushion Assy, No.1 Seat
[05.1976 - 02.1979] JY16,RY1#..LHD RH. |
71420-95027 |
— | ||
|
70011
|
70011
71450-95010
Cushion Assy, No.1 Seat
[05.1976 - 02.1979] JY16,RY1#..LHD CENTER |
71450-95010 |
— | ||
|
70011A
|
70011A
90541-12097
Cushion, Rubber (For Seat Cushion Assy)
[09.1971 - 02.1979] JY16,RY1# OD=25,L=22 |
90541-12097 |
— | ||
|
70011A
|
70011A
90541-12098
Cushion, Rubber (For Seat Cushion Assy)
[09.1971 - 02.1979] JY16,RY1# OD=30,L=33 |
90541-12098 |
— | ||
|
70011C
|
70011C
71144-95011
Handle, Seat Cushion
[09.1971 - 05.1976] JY16,RY1#..LHD |
71144-95011 |
— | ||
|
70012
|
70012
71440-95014-01
Back Assy, No.1 Seat
[09.1971 - 05.1976] JY16,RY1#..LHD BLACK,LH.,BLACK |
71440-95014-01 |
— | ||
|
70012
|
70012
71440-95015
Back Assy, No.1 Seat
[05.1976 - 02.1979] JY16,RY1#..LHD RH. |
71440-95015 |
— | ||
|
70012
|
70012
71440-95016
Back Assy, No.1 Seat
[05.1976 - 02.1979] JY16,RY1#..LHD LH. |
71440-95016 |
— | ||
|
70012
|
70012
71590-95010
Back Assy, No.1 Seat
[05.1976 - 02.1979] JY16,RY1#..LHD CENTER |
71590-95010 |
— | ||
|
70012C
|
70012C
71296-95013
Spring(For Seat Back)
[04.1972 - 05.1976] JY16,RY1# |
71296-95013 |
— | ||
|
70013
|
70013
71072-95024-01
Cover Assy, No.1 Seat Cushion
[09.1971 - 05.1976] JY16,RY1#..LHD LH. BLACK,BLACK |
71072-95024-01 |
— | ||
|
70013
|
70013
71072-95606
Cover Assy, No.1 Seat Cushion
[05.1976 - 02.1979] JY16,RY1#..LHD RH.&LH. |
71072-95606 |
— | ||
|
70013
|
70013
71075-95606
Cover Assy, No.1 Seat Cushion
[05.1976 - 02.1979] JY16,RY1#..LHD CENTER |
71075-95606 |
— | ||
|
70013A
|
70013A
71414-95010-01
Clip, Leather (For Seat Cushion Cover)
[09.1971 - 05.1976] JY16,RY1# LH. BLACK,BLACK |
71414-95010-01 |
— | ||
|
70014
|
70014
71073-95604-01
Cover Assy, No.1 Seat Back
[05.1976 - 02.1979] JY16,RY1#..LHD RH.&LH.,BLACK |
71073-95604-01 |
— | ||
|
70014
|
70014
71074-95012-01
Cover Assy, No.1 Seat Back
[09.1971 - 05.1976] JY16,RY1# LH. BLACK,BLACK |
71074-95012-01 |
— | ||
|
70014
|
70014
71076-95010
Cover Assy, No.1 Seat Back
[05.1976 - 02.1979] JY16,RY1#..LHD CENTER |
71076-95010 |
— | ||
|
70014B
|
70014B
71415-95010-01
Clip, Leather(For Seat Back Cover)
[09.1971 - 05.1976] JY16,RY1# LH. BLACK,BLACK |
71415-95010-01 |
— | ||
|
70014B
|
70014B
90468-06045 Clip, Leather(For Seat Back Cover)LEATHER(FOR SEAT BACK COVER) [05.1976 - 02.1979] JY16,RY1#..LHD |
90468-06045 |
US $1.75 |
||
|
70015
|
70015
71071-95024-01
Cover Assy, No.1 Seat
[09.1971 - 05.1976] JY16,RY1# RH. BLACK,BLACK |
71071-95024-01 |
— | ||
|
70015A
|
70015A
71413-95010-01
Clip, Leather (For Seat Cover)
[09.1971 - 05.1976] JY16,RY1# RH. BLACK,BLACK |
71413-95010-01 |
— | ||
|
71108
|
71108
71108-95013
Hinge Sub-Assy, Front Seat Back, Upper Rh
[09.1971 - 10.1972] JY16,RY1#..LHD |
71108-95013 |
— | ||
|
71108
|
71108
71108-95015
Hinge Sub-Assy, Front Seat Back, Upper Rh
[10.1972 - 05.1976] JY16,RY1#..LHD |
71108-95015 |
— | ||
|
71108
|
71108
71109-95016
Hinge Sub-Assy, Front Seat Back, Upper Rh
[05.1976 - 02.1979] JY16,RY1#..LHD FOR CENTER SEAT |
71109-95016 |
— | ||
|
71109
|
71109
71108-95016
Hinge Sub-Assy, Front Seat Back, Upper Lh
[05.1976 - 02.1979] JY16,RY1#..LHD FOR CENTER SEAT |
71108-95016 |
— | ||
|
71109
|
71109
71109-95013
Hinge Sub-Assy, Front Seat Back, Upper Lh
[09.1971 - 10.1972] JY16,RY1#..LHD |
71109-95013 |
— | ||
|
71109
|
71109
71109-95015
Hinge Sub-Assy, Front Seat Back, Upper Lh
[10.1972 - 05.1976] JY16,RY1#..LHD |
71109-95015 |
— | ||
|
71113
|
71113
71107-95010
Leg, Front Seat Cushion, Rh
[09.1971 - 05.1976] JY16,RY1#..LHD |
71107-95010 |
— | ||
|
71131
|
71131
72407-95010
Bracket, Front Seat Set, Outer Rh
[09.1971 - 05.1976] JY16,RY1# |
72407-95010 |
— | ||
|
71135
|
71135
71135-95010
Plate, Seat Cushion Set
[09.1971 - 05.1976] JY16,RY1#..LHD |
71135-95010 |
— | ||
|
71307
|
71307
71051-95010
Hinge Sub-Assy, Driver Seat, Rh
[05.1976 - 02.1979] JY16,RY1#..LHD |
71051-95010 |
— | ||
|
71307
|
71307
71301-95013
Hinge Sub-Assy, Driver Seat, Rh
[09.1971 - 10.1972] JY16,RY1#..LHD |
71301-95013 |
— | ||
|
71307
|
71307
71301-95014
Hinge Sub-Assy, Driver Seat, Rh
[10.1972 - 05.1976] JY16,RY1#..LHD |
71301-95014 |
— | ||
|
71308
|
71308
71052-95010
Hinge Sub-Assy, Driver Seat, Lh
[05.1976 - 02.1979] JY16,RY1#..LHD |
71052-95010 |
— | ||
|
71308
|
71308
71302-95011
Hinge Sub-Assy, Driver Seat, Lh
[09.1971 - 10.1972] JY16,RY1#..LHD |
71302-95011 |
— | ||
|
71308
|
71308
71302-95012
Hinge Sub-Assy, Driver Seat, Lh
[10.1972 - 05.1976] JY16,RY1#..LHD |
71302-95012 |
— | ||
|
71903
|
71903
71901-95010 Catch Sub-Assy, Seat Cushion, RearSEAT CUSHION, FRONT [09.1971 - 08.1973] JY16,RY1# |
71901-95010 |
US $11.94 |
||
| replacement | |||||
|
71903
|
71903
71901-95016 Catch Sub-Assy, Seat Cushion, RearSEAT CUSHION, REAR [09.1971 - 08.1973] JY16,RY1# |
71901-95016 |
US $11.36 |
||
|
71903
|
71903
71901-95016 Catch Sub-Assy, Seat Cushion, RearSEAT CUSHION, REAR [08.1973 - 05.1976] JY16,RY1# |
71901-95016 |
US $11.36 |
||
|
71945
|
71945
90541-12097
Cushion, Rubber (For Seat Cushion Assy)
[09.1971 - 05.1976] JY16,RY1# OD=25,L=22 |
90541-12097 |
— | ||
|
71950
|
71950
71950-95011-01
Headrest Assy, Front Seat
[09.1971 - 05.1976] JY16,RY1# BLACK,BLACK |
71950-95011-01 |
— | ||
|
71950B
|
71950B
71952-95011-01
Clip (For Headrest)
[09.1971 - 05.1976] JY16,RY1# BLACK,BLACK |
71952-95011-01 |
— | ||
|
6786795401
|
6786795401
67867-95401 Clip, Door Weatherstrip |
67867-95401 |
US $2.77 |
||
|
9012208004
|
9012208004
90122-08004 New Genuine Part |
90122-08004 |
US $8.15 |
||
| replacement | |||||
|
9012208004
|
9012208004
90122-08010 New Genuine Part |
90122-08010 |
US $7.28 |
||
|
9111150612
|
9111150612
91111-50612 Bolt (for Rear Differential Breather Plug Oil Deflector) |
91111-50612 |
US $2.62 |
||
| replacement | |||||
|
9111150612
|
9111150612
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9152140816
|
9152140816
91521-40816 New Genuine Part |
91521-40816 |
US $1.89 |
||
| replacement | |||||
|
9152140816
|
9152140816
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9331110616
|
9331110616
93311-10616
New Genuine Part
|
93311-10616 |
— | ||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
