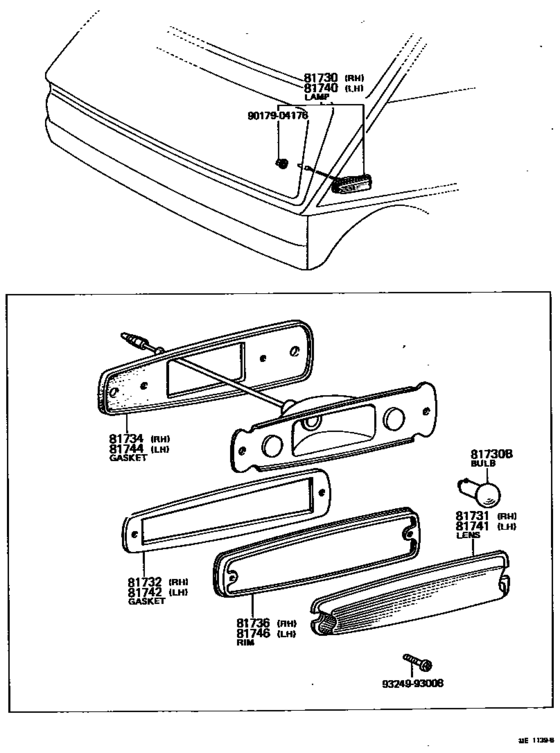

Side Turn Signal Lamp & Outer Mirror Lamp ([09.1971 - 03.1975] (7109-7503)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81730
|
81730
81730-29105 Lamp Assy, Side Turn Signal, RhSIDE TURN SIGNAL, RH [09.1971 - 03.1975] JY16,RY1# |
81730-29105 |
US $48.34 |
||
| replacement | |||||
|
81730
|
81730
81730-19175
Lamp Assy, Side Turn Signal, Rh
[09.1971 - 03.1975] JY16,RY1# |
81730-19175 |
— | ||
|
81730
|
81730
81730-29106 Lamp Assy, Side Turn Signal, RhSIDE TURN SIGNAL, RH [03.1975 - 02.1979] JY16,RY1# |
81730-29106 |
US $48.34 |
||
|
81730B
|
81730B
99132-13060 Bulb, Room Lamp, No.1[09.1971 - 02.1979] JY16,RY1# 12V 6W,12V 6W |
99132-13060 |
US $0.96 |
||
|
81731
|
81731
81731-20010
Lens, Side Turn Signal Lamp, Rh
[09.1971 - 02.1979] JY16,RY1# |
81731-20010 |
— | ||
|
81732
|
81732
81732-20010 Gasket, Side Turn Signal Lamp Lens, RhPARKING AND CLEARANCE LAMP LENS, RH [09.1971 - 03.1975] JY16,RY1# |
81732-20010 |
US $4.08 |
||
|
81734
|
81734
81732-25020
Gasket, Side Turn Signal Lamp Body, Rh
[03.1975 - 02.1979] JY16,RY1# |
81732-25020 |
— | ||
|
81734
|
81734
81734-20010 Gasket, Side Turn Signal Lamp Body, RhPARKING AND CLEARANCE LAMP BODY, RH [09.1971 - 03.1975] JY16,RY1# |
81734-20010 |
US $7.28 |
||
|
81736
|
81736
81736-20010 Rim, Side Turn Signal Lamp, RhPARKING AND CLEARANCE LAMP, RH [09.1971 - 03.1975] JY16,RY1# |
81736-20010 |
US $10.92 |
||
|
81740
|
81740
81740-29085 Lamp Assy, Side Turn Signal, LhSIDE TURN SIGNAL, LH [09.1971 - 03.1975] JY16,RY1# |
81740-29085 |
US $48.34 |
||
| replacement | |||||
|
81740
|
81740
81740-19155
Lamp Assy, Side Turn Signal, Lh
[09.1971 - 03.1975] JY16,RY1# |
81740-19155 |
— | ||
|
81740
|
81740
81740-29086 Lamp Assy, Side Turn Signal, LhSIDE TURN SIGNAL, LH [03.1975 - 02.1979] JY16,RY1# |
81740-29086 |
US $48.34 |
||
|
81741
|
81741
81731-20010
Lens, Side Turn Signal Lamp, Rh
[09.1971 - 02.1979] JY16,RY1# |
81731-20010 |
— | ||
|
81742
|
81742
81732-20010 Gasket, Side Turn Signal Lamp Lens, RhPARKING AND CLEARANCE LAMP LENS, RH [09.1971 - 03.1975] JY16,RY1# |
81732-20010 |
US $4.08 |
||
|
81744
|
81744
81742-25010
Gasket, Side Turn Signal Lamp Body, Lh
[03.1975 - 02.1979] JY16,RY1# |
81742-25010 |
— | ||
|
81744
|
81744
81744-20010
Gasket, Side Turn Signal Lamp Body, Lh
[09.1971 - 03.1975] JY16,RY1# |
81744-20010 |
— | ||
|
81746
|
81746
81736-20010 Rim, Side Turn Signal Lamp, RhPARKING AND CLEARANCE LAMP, RH [09.1971 - 03.1975] JY16,RY1# |
81736-20010 |
US $10.92 |
||
|
9017904176
|
9017904176
90179-04176 New Genuine Part |
90179-04176 |
US $2.18 |
||
|
9324993008
|
9324993008
93249-93008 New Genuine Part |
93249-93008 |
US $2.18 |
||
| replacement | |||||
|
9324993008
|
9324993008
93249-63008 New Genuine Part |
93249-63008 |
US $1.60 |
||
