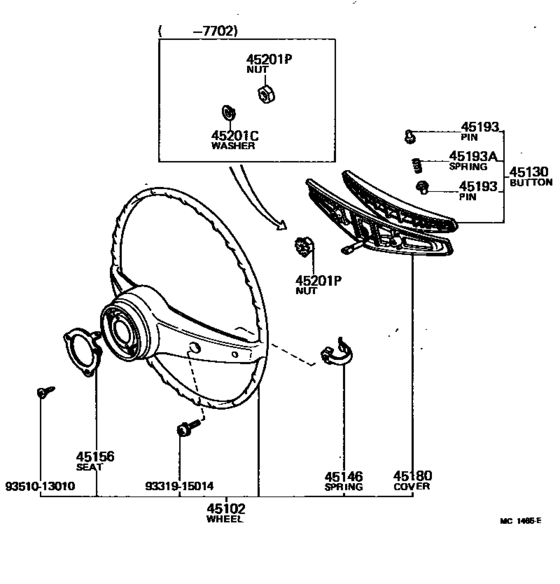

Steering Wheel ([09.1971 - 02.1979] (7109-7902)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45102
|
45102
45100-25040 Wheel Sub-Assy, SteeringSTEERING [09.1971 - 09.1977] JY16,RY1# |
45100-25040 |
US $449.90 |
||
| replacement | |||||
|
45102
|
45102
45100-25041
Wheel Sub-Assy, Steering
[09.1971 - 09.1977] JY16,RY1# |
45100-25041 |
— | ||
|
45102
|
45102
45100-25041
Wheel Sub-Assy, Steering
[09.1977 - 02.1979] JY16,RY1# |
45100-25041 |
— | ||
|
45130
|
45130
45130-25020 Button Assy, HornHORN [09.1971 - 09.1973] JY16,RY1# |
45130-25020 |
US $65.81 |
||
| replacement | |||||
|
45130
|
45130
45130-25021
Button Assy, Horn
[09.1971 - 09.1973] JY16,RY1# |
45130-25021 |
— | ||
|
45130
|
45130
45130-25021
Button Assy, Horn
[09.1973 - 02.1979] JY16,RY1# W/TRUMPET MARK |
45130-25021 |
— | ||
|
45146
|
45146
45146-12010 Spring, Horn Button ContactHORN BUTTON CONTACT [09.1971 - 02.1979] JY16,RY1# |
45146-12010 |
US $7.43 |
||
|
45156
|
45156
45176-25010
Ring, Horn Contact
[09.1971 - 02.1979] JY16,RY1# |
45176-25010 |
— | ||
|
45180
|
45180
45180-25010
Cover Sub-Assy, Steering Wheel
[09.1971 - 02.1979] JY16,RY1# |
45180-25010 |
— | ||
|
45193
|
45193
45193-12010
Pin, Horn Button
[09.1971 - 02.1979] JY16,RY1# |
45193-12010 |
— | ||
|
45193A
|
45193A
90501-07220
Spring, Horn Button Pin
[09.1971 - 02.1979] JY16,RY1# |
90501-07220 |
— | ||
|
45201C
|
45201C
90204-12029
Washer, Spring(For Steering Wheel Set)
[09.1971 - 02.1977] JY16,RY1# |
90204-12029 |
— | ||
|
45201P
|
45201P
90179-12086 Nut, Steering Wheel Set[02.1977 - 02.1979] JY16,RY1# |
90179-12086 |
US $5.38 |
||
|
45201P
|
45201P
94125-41200 Nut, Steering Wheel Set[09.1971 - 02.1977] JY16,RY1# |
94125-41200 |
from US $1.27 |
||
|
9331915014
|
9331915014
93319-15014 Screw, Cover Set, No.1 |
93319-15014 |
US $2.51 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.97 |
||
