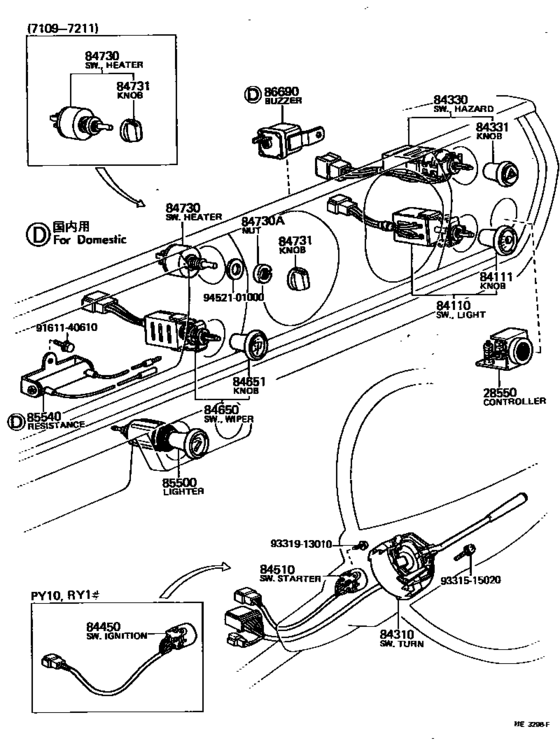

Switch & Relay & Computer ([09.1971 - 03.1975] (7109-7503)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- Europe
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84110-25030
Switch Assy, Light Control, No.1
[09.1971 - 03.1975] JY16,RY1# |
84110-25030 |
— | ||
| replacements | |||||
|
84110
|
84110
84111-11020 Knob, Light Control SwitchLIGHT CONTROL SWITCH [09.1971 - 03.1975] JY16,RY1# |
84111-11020 |
US $10.63 |
||
|
84110
|
84110
84112-25010 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [09.1971 - 03.1975] JY16,RY1# |
84112-25010 |
US $40.19 |
||
|
84110
|
84110
90984-01007 Bolt, Rheostat Control Set[09.1971 - 03.1975] JY16,RY1# |
90984-01007 |
from US $11.47 |
||
|
84110
|
84110
84112-10010
Switch Assy, Light Control, No.1
[11.1975 - 02.1979] JY16,RY1# |
84112-10010 |
— | ||
|
84110
|
84110
84112-25010 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [03.1975 - 11.1975] JY16,RY1# |
84112-25010 |
US $40.19 |
||
|
84111
|
84111
84111-10021 Knob, Light Control SwitchLIGHT CONTROL SWITCH [09.1971 - 03.1975] JY16,RY1# |
84111-10021 |
US $11.21 |
||
| replacement | |||||
|
84111
|
84111
84111-10030
Knob, Light Control Switch
[09.1971 - 03.1975] JY16,RY1# |
84111-10030 |
— | ||
|
84111
|
84111
84111-11020 Knob, Light Control SwitchLIGHT CONTROL SWITCH [03.1975 - 02.1979] JY16,RY1# |
84111-11020 |
US $10.63 |
||
|
84310
|
84310
84310-25050
Switch Assy, Turn Signal
[09.1971 - 06.1972] RY1#..LHD |
84310-25050 |
— | ||
|
84310
|
84310
84310-25060 Switch Assy, Turn SignalTURN SIGNAL [06.1972 - 02.1979] JY16,RY1#..LHD |
84310-25060 |
US $122.30 |
||
|
84330
|
84330
84330-35030
Switch Assy, Hazard Warning Signal
[09.1971 - 03.1975] JY16,RY1# |
84330-35030 |
— | ||
| replacements | |||||
|
84330
|
84330
84331-10012
Knob, Hazard Warning Signal Switch
[09.1971 - 03.1975] JY16,RY1# |
84331-10012 |
— | ||
|
84330
|
84330
84332-26010 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [09.1971 - 03.1975] JY16,RY1# |
84332-26010 |
US $57.66 |
||
|
84330
|
84330
90984-01007 Bolt, Rheostat Control Set[09.1971 - 03.1975] JY16,RY1# |
90984-01007 |
from US $11.47 |
||
|
84330
|
84330
84332-26010 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [03.1975 - 02.1979] JY16,RY1# |
84332-26010 |
US $57.66 |
||
|
84331
|
84331
84331-10012
Knob, Hazard Warning Signal Switch
[03.1975 - 02.1979] JY16,RY1# |
84331-10012 |
— | ||
|
84331
|
84331
84331-12011 Knob, Hazard Warning Signal SwitchHAZARD WARNING SIGNAL SWITCH [09.1971 - 03.1975] JY16,RY1# |
84331-12011 |
US $11.21 |
||
| replacement | |||||
|
84331
|
84331
84331-10012
Knob, Hazard Warning Signal Switch
[09.1971 - 03.1975] JY16,RY1# |
84331-10012 |
— | ||
|
84450
|
84450
84450-25020 Switch Assy, Ignition Or StarterIGNITION OR STARTER [06.1972 - 02.1979] RY1# |
84450-25020 |
US $51.25 |
||
|
84650
|
84650
84650-27011
Switch Assy, Windshield Wiper
[09.1971 - 03.1975] JY16,RY1# |
84650-27011 |
— | ||
| replacements | |||||
|
84650
|
84650
84651-10030
Knob, Windshield Wiper Switch
[09.1971 - 03.1975] JY16,RY1# |
84651-10030 |
— | ||
|
84650
|
84650
84652-27010 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.1971 - 03.1975] JY16,RY1# |
84652-27010 |
from US $45.36 |
||
|
84650
|
84650
84652-27010 Switch Assy, Windshield WiperWINDSHIELD WIPER [03.1975 - 02.1979] JY16,RY1# |
84652-27010 |
from US $45.36 |
||
|
84651
|
84651
84651-10021 Knob, Windshield Wiper SwitchWINDSHIELD WIPER SWITCH [09.1971 - 03.1975] JY16,RY1# |
84651-10021 |
US $12.23 |
||
| replacement | |||||
|
84651
|
84651
84651-10030
Knob, Windshield Wiper Switch
[09.1971 - 03.1975] JY16,RY1# |
84651-10030 |
— | ||
|
84651
|
84651
84651-11010 Knob, Windshield Wiper SwitchWINDSHIELD WIPER SWITCH [03.1975 - 09.1975] JY16,RY1# |
84651-11010 |
US $10.48 |
||
| replacement | |||||
|
84651
|
84651
84651-11020
Knob, Windshield Wiper Switch
[03.1975 - 09.1975] JY16,RY1# |
84651-11020 |
— | ||
|
84651
|
84651
84651-11020
Knob, Windshield Wiper Switch
[09.1975 - 02.1979] JY16,RY1# |
84651-11020 |
— | ||
|
84730
|
84730
84730-10031
Switch Assy, Heater Blower
[09.1971 - 11.1972] JY16,RY1# |
84730-10031 |
— | ||
| replacement | |||||
|
84730
|
84730
84732-10020 Switch Assy, Heater BlowerHEATER BLOWER [09.1971 - 11.1972] JY16,RY1# |
84732-10020 |
US $33.63 |
||
|
84730
|
84730
84732-10020 Switch Assy, Heater BlowerHEATER BLOWER [11.1972 - 02.1979] JY16,RY1# |
84732-10020 |
US $33.63 |
||
|
84730A
|
84730A
90179-10155 Nut, Heater Blower Switch[11.1972 - 02.1979] JY16,RY1# |
90179-10155 |
US $8.59 |
||
|
84731
|
84731
84731-10011 Knob, Heater Blower SwitchHEATER BLOWER SWITCH [09.1971 - 02.1979] JY16,RY1# |
84731-10011 |
US $13.10 |
||
|
85500
|
85500
85500-10020 Lighter Assy, CigaretteCIGARETTE [09.1971 - 03.1975] JY16,RY1# |
85500-10020 |
US $54.60 |
||
| replacement | |||||
|
85500
|
85500
85500-20042 Lighter Assy, Cigarette[09.1971 - 03.1975] JY16,RY1# |
85500-20042 |
US $67.70 |
||
|
85500
|
85500
85500-10030
Lighter Assy, Cigarette
[03.1975 - 02.1979] JY16,RY1# |
85500-10030 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-20042 Lighter Assy, Cigarette[03.1975 - 02.1979] JY16,RY1# |
85500-20042 |
US $67.70 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9331515020
|
9331515020
93315-15020
New Genuine Part
|
93315-15020 |
— | ||
|
9331913010
|
9331913010
93319-13010 New Genuine Part |
93319-13010 |
US $2.15 |
||
|
9452101000
|
9452101000
94521-01000 New Genuine Part |
94521-01000 |
US $1.16 |
||
