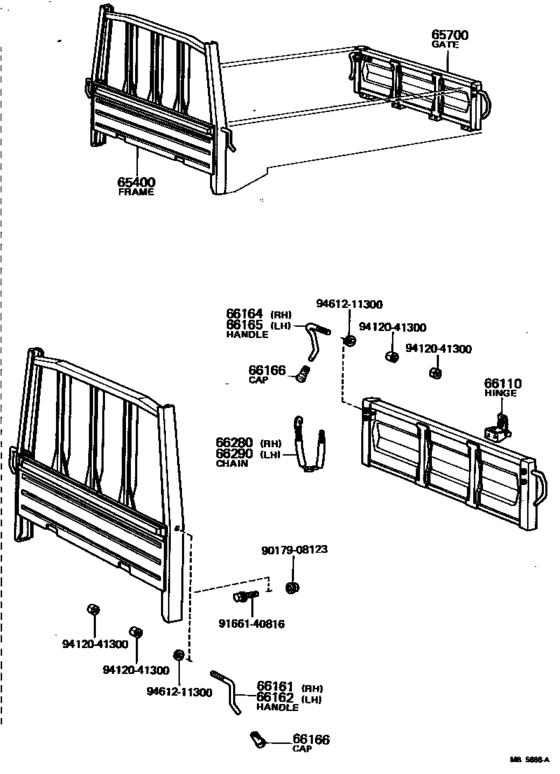

Rear Body Guard Frame & Tail Gate ([09.1971 - 02.1979] (7109-7902)T3..TS) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1971 - 1979
- Sales region
- General
- Frame
- RY10
- body
- T3
- ENGINE
- 12R
- Model
- TOYO ACE
- From
- 09.1971
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Driver's Position
- LHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65400
|
65400
65400-95024 Frame Assy, Rear Body GuardREAR BODY GUARD [09.1971 - 02.1979] RY10,12..T3 |
65400-95024 |
US $1,306.03 |
||
| replacement | |||||
|
65400
|
65400
65400-95A04
Frame Assy, Rear Body Guard
[09.1971 - 02.1979] RY10,12..T3 |
65400-95A04 |
— | ||
|
65700
|
65700
65700-95021
Gate Assy, Rear Body Tail
[09.1971 - 11.1976] JY16,RY1#..T3..TS |
65700-95021 |
— | ||
|
65700
|
65700
65700-95022
Gate Assy, Rear Body Tail
[11.1976 - 02.1979] JY16,RY1#..T3..TS |
65700-95022 |
— | ||
|
66110
|
66110
66110-95015
Hinge Assy, Tail Gate
[09.1971 - 11.1976] JY16,RY1#..T3..TS |
66110-95015 |
— | ||
|
66110
|
66110
66110-95016
Hinge Assy, Tail Gate
[11.1976 - 02.1979] JY16,RY1#..T3..TS |
66110-95016 |
— | ||
|
66161
|
66161
66161-95011 Handle, Side Gate Latch, RhSIDE GATE LATCH, RH [09.1971 - 02.1979] JY16,RY1#..T3..TS |
66161-95011 |
US $15.87 |
||
|
66162
|
66162
66162-95010 Handle, Side Gate Latch, LhSIDE GATE LATCH, LH [09.1971 - 02.1979] JY16,RY1#..T3..TS |
66162-95010 |
US $27.37 |
||
|
66164
|
66164
66163-95010
Handle, Tail Gate Latch, Rh
[09.1971 - 11.1976] JY16,RY1#..T3..TS |
66163-95010 |
— | ||
|
66164
|
66164
66163-95011 Handle, Tail Gate Latch, RhTAIL GATE LATCH, RH [11.1976 - 02.1979] JY16,RY1#..T3..TS |
66163-95011 |
US $14.56 |
||
|
66165
|
66165
66164-95010
Handle, Tail Gate Latch, Lh
[09.1971 - 11.1976] JY16,RY1#..T3..TS |
66164-95010 |
— | ||
|
66165
|
66165
66164-95011 Handle, Tail Gate Latch, LhTAIL GATE LATCH, LH [11.1976 - 02.1979] JY16,RY1#..T3..TS |
66164-95011 |
US $14.56 |
||
|
66166
|
66166
66165-95010 Cap, Gate Latch HandleGATE LATCH HANDLE [09.1971 - 02.1979] JY16,RY1#..T3..TS |
66165-95010 |
US $3.64 |
||
|
66280
|
66280
66280-95010
Chain Assy, Tail Gate, Rh
[09.1971 - 06.1972] RY1# |
66280-95010 |
— | ||
|
66280
|
66280
66280-95011 Chain Assy, Tail Gate, RhTAIL GATE, RH [07.1972 - 02.1979] JY16,RY1#..T3..TS |
66280-95011 |
US $21.84 |
||
| replacement | |||||
|
66280
|
66280
66280-25020 Chain Assy, Tail GateTAIL GATE [07.1972 - 02.1979] JY16,RY1#..T3..TS |
66280-25020 |
US $18.93 |
||
|
66290
|
66290
66280-95010
Chain Assy, Tail Gate, Rh
[09.1971 - 06.1972] RY1# |
66280-95010 |
— | ||
|
66290
|
66290
66280-95011 Chain Assy, Tail Gate, RhTAIL GATE, RH [07.1972 - 02.1979] JY16,RY1#..T3..TS |
66280-95011 |
US $21.84 |
||
| replacement | |||||
|
66290
|
66290
66280-25020 Chain Assy, Tail GateTAIL GATE [07.1972 - 02.1979] JY16,RY1#..T3..TS |
66280-25020 |
US $18.93 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9166140816
|
9166140816
91661-40816
New Genuine Part
|
91661-40816 |
— | ||
|
9412041300
|
9412041300
94120-41300 Nut, Steering Wheel SetSTEERING WHEEL SET |
94120-41300 |
US $2.04 |
||
|
9461211300
|
9461211300
94612-11300 Washer(For Outer Lever Oil Setting) |
94612-11300 |
from US $0.70 |
||
