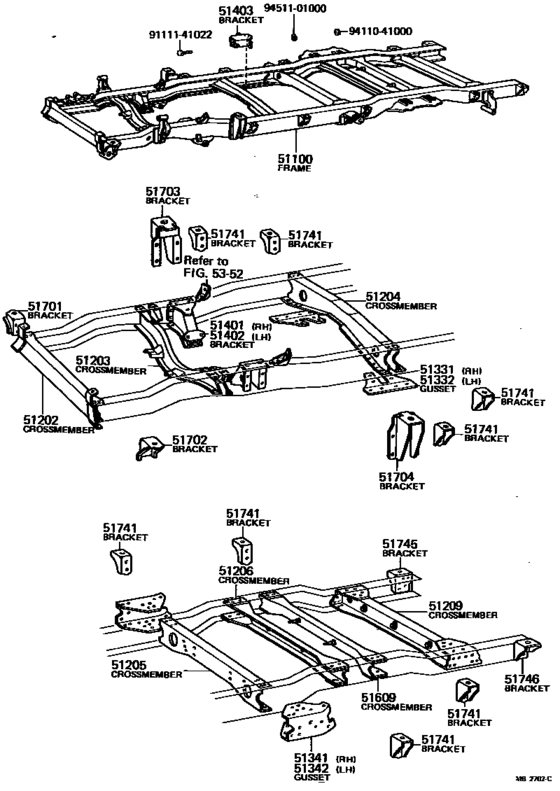

Frame ([07.1972 - 02.1979] (7207-7902)JY16,RY16) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1972 - 1979
- Sales region
- Europe
- Frame
- RY16
- body
- T1
- ENGINE
- 5R
- Model
- TOYO ACE
- From
- 07.1972
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Loading Capacity
- 20T
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51100
|
51100
51001-25460
Frame Assy
[07.1972 - 08.1977] RY16..RHD |
51001-25460 |
— | ||
|
51100
|
51100
51001-25461
Frame Assy
[08.1977 - 02.1979] RY16..RHD |
51001-25461 |
— | ||
|
51202
|
51202
51201-25040
Crossmember Sub-Assy, Frame, No.1
[07.1972 - 02.1979] JY16,RY16 |
51201-25040 |
— | ||
|
51203
|
51203
51202-25080
Crossmember Sub-Assy, Frame, No.2
[07.1972 - 02.1979] JY16,RY16 |
51202-25080 |
— | ||
|
51204
|
51204
51203-25040
Crossmember Sub-Assy, Frame, No.3
[07.1972 - 02.1979] RY16 |
51203-25040 |
— | ||
|
51205
|
51205
51241-36031 Crossmember Sub-Assy, Frame, No.4FRAME, NO.4 [07.1972 - 08.1977] JY16,RY16 |
51241-36031 |
US $133.95 |
||
| replacement | |||||
|
51205
|
51205
51241-36032
Crossmember Sub-Assy, Frame, No.4
[07.1972 - 08.1977] JY16,RY16 |
51241-36032 |
— | ||
|
51205
|
51205
51241-36032
Crossmember Sub-Assy, Frame, No.4
[08.1977 - 02.1979] JY16,RY16 |
51241-36032 |
— | ||
|
51206
|
51206
51205-36030
Crossmember Sub-Assy, Frame, No.5
[07.1972 - 09.1973] JY16,RY16 |
51205-36030 |
— | ||
|
51206
|
51206
51205-36050
Crossmember Sub-Assy, Frame, No.5
[09.1973 - 02.1979] JY16,RY16 |
51205-36050 |
— | ||
|
51209
|
51209
51209-36121
Crossmember Sub-Assy, Frame, No.8
[07.1972 - 02.1979] JY16,RY16 |
51209-36121 |
— | ||
|
51331
|
51331
51331-36030
Gusset, Frame No.3 Crossmember, Rh
[07.1972 - 02.1979] JY16,RY16 |
51331-36030 |
— | ||
|
51332
|
51332
51331-36030
Gusset, Frame No.3 Crossmember, Rh
[07.1972 - 02.1979] JY16,RY16 |
51331-36030 |
— | ||
|
51341
|
51341
51341-36011
Gusset, Frame No.4 Crossmember, Rh
[07.1972 - 02.1979] JY16,RY16 |
51341-36011 |
— | ||
|
51342
|
51342
51342-36011
Gusset, Frame No.4 Crossmember, Lh
[07.1972 - 02.1979] JY16,RY16 |
51342-36011 |
— | ||
|
51401
|
51401
51401-25080
Bracket Sub-Assy, Engine Front Mounting, Rh
[07.1972 - 02.1979] JY16,RY16 |
51401-25080 |
— | ||
|
51402
|
51402
51401-25080
Bracket Sub-Assy, Engine Front Mounting, Rh
[07.1972 - 02.1979] RY16 |
51401-25080 |
— | ||
|
51403
|
51403
51403-25030
Bracket Sub-Assy, Engine Rear Mounting
[07.1972 - 02.1979] RY16 |
51403-25030 |
— | ||
|
51609
|
51609
51206-25030
Crossmember Sub-Assy, Rear Shock Absorber Support
[10.1977 - 02.1979] JY16,RY16 |
51206-25030 |
— | ||
|
51609
|
51609
51506-36041 Crossmember Sub-Assy, Rear Shock Absorber SupportREAR SHOCK ABSORBER SUPPORT [07.1972 - 10.1977] JY16,RY16 |
51506-36041 |
US $158.70 |
||
| replacements | |||||
|
51609
|
51609
94130-61200 Nut[07.1972 - 10.1977] JY16,RY16 |
94130-61200 |
from US $1.03 |
||
|
51609
|
51609
51206-25030
Crossmember Sub-Assy, Rear Shock Absorber Support
[07.1972 - 10.1977] JY16,RY16 |
51206-25030 |
— | ||
|
51609
|
51609
94531-01200 WASHER[07.1972 - 10.1977] JY16,RY16 |
94531-01200 |
from US $0.80 |
||
|
51701
|
51701
51701-25040
Bracket Sub-Assy, Cab Mounting, No.1 Rh
[09.1971 - 02.1979] JY16,RY1# |
51701-25040 |
— | ||
|
51702
|
51702
51701-25040
Bracket Sub-Assy, Cab Mounting, No.1 Rh
[09.1971 - 02.1979] JY16,RY1# |
51701-25040 |
— | ||
|
51703
|
51703
51731-25040 Bracket Sub-Assy, Cab Mounting, No.2, RhCAB MOUNTING, NO.2, RH [07.1972 - 02.1979] JY16,RY16 |
51731-25040 |
US $116.48 |
||
| replacement | |||||
|
51703
|
51703
51732-25020
Bracket Sub-Assy, Cab Mounting, No.2 Lh
[07.1972 - 02.1979] JY16,RY16 |
51732-25020 |
— | ||
|
51704
|
51704
51732-25020
Bracket Sub-Assy, Cab Mounting, No.2 Lh
[07.1972 - 03.1975] RY16 |
51732-25020 |
— | ||
|
51741
|
51741
51751-36020 Bracket, Body MountingBODY MOUNTING, NO.3 [07.1972 - 02.1979] JY16,RY16 |
51751-36020 |
US $16.45 |
||
|
51745
|
51745
51768-25010
Bracket, Body Mounting, No.5
[07.1972 - 02.1979] JY16,RY16 |
51768-25010 |
— | ||
|
51746
|
51746
51769-25010
Bracket, Body Mounting, No.6
[07.1972 - 02.1979] JY16,RY16 |
51769-25010 |
— | ||
|
9111141022
|
9111141022
91111-41022 New Genuine Part |
91111-41022 |
US $2.91 |
||
| replacement | |||||
|
9111141022
|
9111141022
91111-51022 New Genuine Part |
91111-51022 |
US $2.91 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
