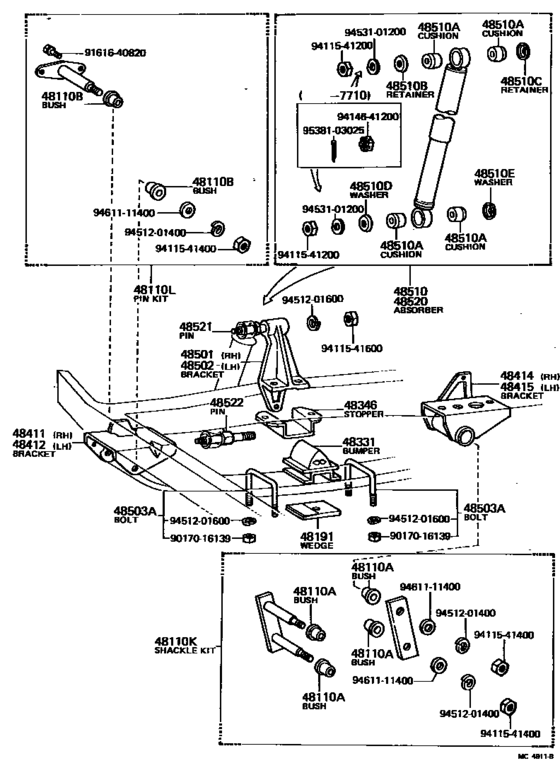

Front Spring & Shock Absorber ([07.1972 - 02.1979] (7207-7902)20T) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1972 - 1979
- Sales region
- General
- Frame
- RY16
- body
- T3
- ENGINE
- 5R
- Model
- TOYO ACE
- From
- 07.1972
- To
- 02.1979
- Vehicle Model
- TOYO ACE
- Loading Capacity
- 20T
- Driver's Position
- RHD
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48110A
|
48110A
90385-18025 Bush(For Front Spring Shackle)[07.1972 - 02.1979] JY16,RY16 |
90385-18025 |
US $5.28 |
||
|
48110B
|
48110B
90385-18025 Bush(For Front Spring Shackle)[07.1972 - 02.1979] JY16,RY16 |
90385-18025 |
US $5.28 |
||
|
48110K
|
48110K
04481-36020
Shackle Kit, Front Spring
[07.1972 - 02.1979] JY16,RY16 |
04481-36020 |
— | ||
|
48110L
|
48110L
04484-35020
Pin Kit, Front Spring
[07.1972 - 02.1979] JY16,RY16 |
04484-35020 |
— | ||
| replacement | |||||
|
48110L
|
48110L
04484-35040
Pin Kit, Rear Spring
[07.1972 - 02.1979] JY16,RY16 |
04484-35040 |
— | ||
|
48191
|
48191
48191-35010
Wedge, Caster(For Front Leaf Spring)
[07.1972 - 02.1979] JY16,RY16..T3..20T |
48191-35010 |
— | ||
|
48331
|
48331
48304-36021 Bumper Sub-Assy, Front Spring, No.1[07.1972 - 02.1979] JY16,RY16 |
48304-36021 |
US $21.43 |
||
|
48346
|
48346
48346-25050
Stopper, Bumper, Front
[08.1977 - 02.1979] JY16,RY16..20T |
48346-25050 |
— | ||
|
48346
|
48346
48346-36010
Stopper, Bumper, Front
[07.1972 - 08.1977] JY16,RY16 |
48346-36010 |
— | ||
|
48411
|
48411
48411-25040
Bracket, Front Spring(For Front Rh)
[07.1972 - 02.1979] JY16,RY16 |
48411-25040 |
— | ||
|
48412
|
48412
48412-25030
Bracket, Front Spring(For Front Lh)
[07.1972 - 02.1979] JY16,RY16 |
48412-25030 |
— | ||
|
48414
|
48414
48433-25030
Bracket, Front Spring(For Rear Rh)
[07.1972 - 02.1979] JY16,RY16 |
48433-25030 |
— | ||
|
48415
|
48415
48434-25020
Bracket, Front Spring(For Rear Lh)
[07.1972 - 02.1979] JY16,RY16 |
48434-25020 |
— | ||
|
48501
|
48501
48512-25040
Bracket Sub-Assy, Front Shock Absorber, Upper Rh
[07.1972 - 02.1979] JY16,RY16..20T |
48512-25040 |
— | ||
|
48502
|
48502
48513-25020
Bracket Sub-Assy, Front Shock Absorber, Upper Lh
[07.1972 - 02.1979] JY16,RY16..20T |
48513-25020 |
— | ||
|
48503A
|
48503A
90118-16057 Bolt, U(For Front Shock Absorber Bracket)U(FOR FRONT SHOCK ABSORBER BRACKET) [07.1972 - 02.1979] JY16,RY16..20T REAR |
90118-16057 |
US $22.86 |
||
| replacements | |||||
|
48503A
|
48503A
90204-16001 Washer(For Center Arm Shaft)[07.1972 - 02.1979] JY16,RY16..20T REAR |
90204-16001 |
US $2.72 |
||
|
48503A
|
48503A
90117-16032 Bolt, U(For Front Shock Absorber Bracket)[07.1972 - 02.1979] JY16,RY16..20T REAR |
90117-16032 |
US $19.22 |
||
|
48503A
|
48503A
90170-16139 Nut(For Rear Spring U Bolt)[07.1972 - 02.1979] JY16,RY16..20T REAR |
90170-16139 |
US $4.80 |
||
|
48503A
|
48503A
90118-16058 Bolt, U(For Front Shock Absorber Bracket)U(FOR FRONT SHOCK ABSORBER BRACKET) [07.1972 - 02.1979] JY16,RY16..20T FRONT |
90118-16058 |
US $18.78 |
||
| replacements | |||||
|
48503A
|
48503A
90117-16093 Bolt, U(For Front Shock Absorber Bracket)[07.1972 - 02.1979] JY16,RY16..20T FRONT |
90117-16093 |
US $15.58 |
||
|
48503A
|
48503A
90170-16139 Nut(For Rear Spring U Bolt)[07.1972 - 02.1979] JY16,RY16..20T FRONT |
90170-16139 |
US $4.80 |
||
|
48503A
|
48503A
94621-11600 Washer(For Rear Spring U Bolt)[07.1972 - 02.1979] JY16,RY16..20T FRONT |
94621-11600 |
US $5.12 |
||
|
48510
|
48510
48511-29055
Absorber Assy, Shock, Front Rh
[07.1972 - 02.1979] JY16,RY16..20T |
48511-29055 |
— | ||
| replacement | |||||
|
48510
|
48510
48511-29056
Absorber Assy, Shock, Front Rh
[07.1972 - 02.1979] JY16,RY16..20T |
48511-29056 |
— | ||
|
48510A
|
48510A
90385-16007 Cushion, Front Shock Absorber[07.1972 - 02.1979] JY16,RY16..20T |
90385-16007 |
from US $2.05 |
||
|
48510B
|
48510B
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)[07.1972 - 02.1979] JY16,RY16..20T |
90948-03003 |
from US $1.31 |
||
|
48510C
|
48510C
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[07.1972 - 02.1979] JY16,RY16..20T |
90948-03004 |
from US $1.42 |
||
|
48510D
|
48510D
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)[09.1971 - 02.1979] JY16,RY1# |
90948-03003 |
from US $1.31 |
||
|
48510E
|
48510E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[07.1972 - 02.1979] JY16,RY16 |
90948-03004 |
from US $1.42 |
||
|
48520
|
48520
48511-29055
Absorber Assy, Shock, Front Rh
[07.1972 - 02.1979] JY16,RY16..20T |
48511-29055 |
— | ||
| replacement | |||||
|
48520
|
48520
48511-29056
Absorber Assy, Shock, Front Rh
[07.1972 - 02.1979] JY16,RY16..20T |
48511-29056 |
— | ||
|
48521
|
48521
48522-36021 Pin, Front Shock Absorber Upper PivotFRONT SHOCK ABSORBER UPPER PIVOT [07.1972 - 10.1977] JY16,RY16 |
48522-36021 |
US $7.86 |
||
|
48521
|
48521
48522-36030 Pin, Front Shock Absorber Lower PivotFRONT SHOCK ABSORBER LOWER PIVOT [10.1977 - 02.1979] JY16,RY16 |
48522-36030 |
US $10.05 |
||
|
48522
|
48522
48522-36021 Pin, Front Shock Absorber Upper PivotFRONT SHOCK ABSORBER UPPER PIVOT [07.1972 - 10.1977] JY16,RY16 |
48522-36021 |
US $7.86 |
||
|
48522
|
48522
48522-36030 Pin, Front Shock Absorber Lower PivotFRONT SHOCK ABSORBER LOWER PIVOT [10.1977 - 02.1979] JY16,RY16 |
48522-36030 |
US $10.05 |
||
|
9017016139
|
9017016139
90170-16139 Nut(For Rear Spring U Bolt) |
90170-16139 |
US $4.80 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.40 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9411541400
|
9411541400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $2.62 |
||
|
9411541600
|
9411541600
94115-41600
Nut, Hexagon(for Sector Shaft To Pitman Arm Setting)
|
94115-41600 |
— | ||
| replacement | |||||
|
9411541600
|
9411541600
94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting) |
94130-61600 |
US $1.92 |
||
|
9414641200
|
9414641200
94146-41200 New Genuine Part |
94146-41200 |
US $4.89 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.60 |
||
|
9451201600
|
9451201600
94512-01600
Washer(For Center Arm Shaft)
|
94512-01600 |
— | ||
| replacement | |||||
|
9451201600
|
9451201600
90204-16001 Washer(For Center Arm Shaft) |
90204-16001 |
US $2.72 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.80 |
||
|
9461111400
|
9461111400
94611-11400 Washer, Plate (For Front Power Take-Off Shaft) |
94611-11400 |
US $0.87 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
||
