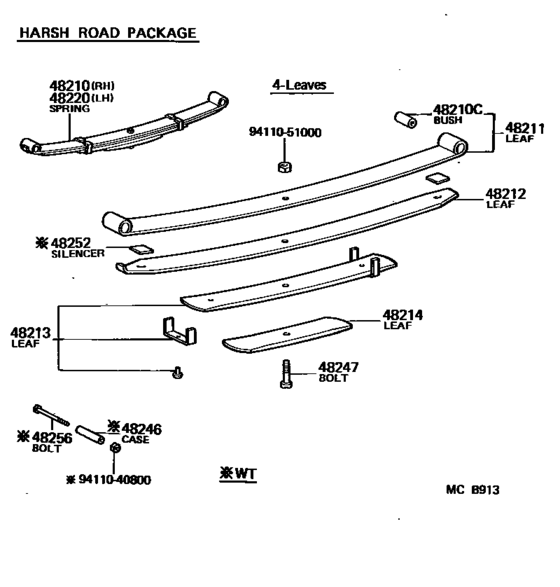

Rear Spring & Shock Absorber ([08.1984 - ] (8408- )) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- RY32
- body
- TR
- ENGINE
- 5R
- Model
- TOYO ACE
- From
- 01.1982
- To
- 07.1985
- Gear Shift Type
- 4H
- Vehicle Model
- TOYO ACE
- Deck,cab
- T3
- Loading Capacity
- 15T
- Building Condition
- CBU
- Deck(Material)
- TS
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-25160 Spring Assy, Rear RhREAR RH [03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48210-25160 |
US $559.10 |
||
| replacement | |||||
|
48210
|
48210
48210-25210 Spring Assy, Rear RhREAR LH [03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48210-25210 |
US $567.84 |
||
|
48211
|
48211
48201-25160 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48201-25160 |
US $218.40 |
||
| replacement | |||||
|
48211
|
48211
48201-25360 Leaf, Rear Spring, No.1[03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48201-25360 |
US $224.22 |
||
|
48212
|
48212
48212-25160 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48212-25160 |
US $168.90 |
||
| replacement | |||||
|
48212
|
48212
48212-25180 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48212-25180 |
US $170.35 |
||
|
48213
|
48213
48202-25160 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48202-25160 |
US $96.10 |
||
| replacement | |||||
|
48213
|
48213
48202-25530 Leaf, Rear Spring, No.3[03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48202-25530 |
US $123.76 |
||
|
48214
|
48214
48214-25160 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48214-25160 |
US $59.55 |
||
| replacement | |||||
|
48214
|
48214
48214-25530 Leaf, Rear Spring, No.4[03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48214-25530 |
US $64.21 |
||
|
48220
|
48220
48210-25160 Spring Assy, Rear RhREAR RH [03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48210-25160 |
US $559.10 |
||
| replacement | |||||
|
48220
|
48220
48210-25210 Spring Assy, Rear RhREAR LH [03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48210-25210 |
US $567.84 |
||
|
48247
|
48247
48247-25160 Bolt, Front Spring, Center[03.1979 - 07.1985] LY2#,3#,RY2#,3#..ST..15T |
48247-25160 |
US $2.62 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.86 |
||
