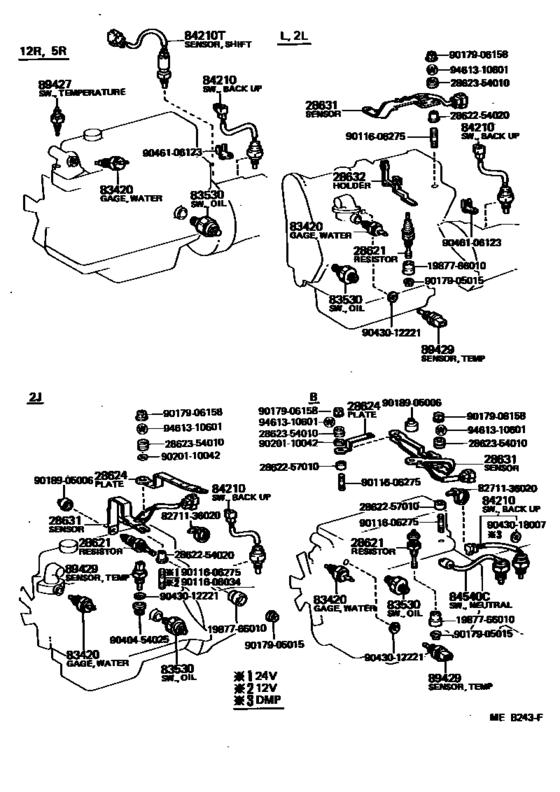

Switch & Relay & Computer ([01.1982 - ] (8201- )) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- RY32
- body
- TR
- ENGINE
- 5R
- Model
- TOYO ACE
- From
- 01.1982
- To
- 07.1985
- Gear Shift Type
- 4H
- Vehicle Model
- TOYO ACE
- Deck,cab
- T3
- Loading Capacity
- 15T
- Building Condition
- CBU
- Deck(Material)
- TS
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16010
Gage Assy, Water Temperature Sender
[12.1979 - 07.1985] BY3#,JY30,LY2#,3#,RY2#,3# DENSO |
83420-16010 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1979 - 07.1985] BY3#,JY30,LY2#,3#,RY2#,3# DENSO |
83420-20020 |
from US $29.21 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1979 - 07.1985] BY3#,JY30,LY2#,3#,RY2#,3# PINK,YAZAKI |
83420-20020 |
from US $29.21 |
||
|
83530
|
83530
83530-14010
Switch Assy, Oil Pressure (For Engine)
[01.1982 - 03.1985] BY3#,JY30,RY21,32 |
83530-14010 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[01.1982 - 03.1985] BY3#,JY30,RY21,32 |
83530-28030 |
from US $23.97 |
||
|
83530
|
83530
83530-14030
Switch Assy, Oil Pressure (For Engine)
[03.1985 - 07.1985] BY31,RY21,32 |
83530-14030 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[03.1985 - 07.1985] BY31,RY21,32 |
83530-28030 |
from US $23.97 |
||
|
84210
|
84210
84210-25020 Switch Assy, Back-Up LampBACK-UP LAMP [03.1979 - 07.1985] LY2#,3#,RY2#,3# |
84210-25020 |
US $41.35 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2862254020
|
2862254020
28622-54020
Insulator, Glow Plug Resistor, No.1
|
28622-54020 |
— | ||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
8271136020
|
8271136020
82711-36020 Wire, Fuse To Fuse(for Combustion Heater) |
82711-36020 |
US $8.59 |
||
|
9011606034
|
9011606034
90116-06034 New Genuine Part |
90116-06034 |
US $1.89 |
||
|
9011606275
|
9011606275
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
|
90116-06275 |
— | ||
| replacement | |||||
|
9011606275
|
9011606275
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.61 |
||
|
9017905015
|
9017905015
90179-05015 New Genuine Part |
90179-05015 |
US $1.12 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9018905006
|
9018905006
90189-05006 GROMMET |
90189-05006 |
US $6.99 |
||
|
9020110042
|
9020110042
90201-10042 Washer, Plate (For Transfer Control Cable) |
90201-10042 |
US $1.61 |
||
|
9040454025
|
9040454025
90404-54025 New Genuine Part |
90404-54025 |
US $7.72 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
|
9046106123
|
9046106123
90461-06123 New Genuine Part |
90461-06123 |
US $3.35 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
