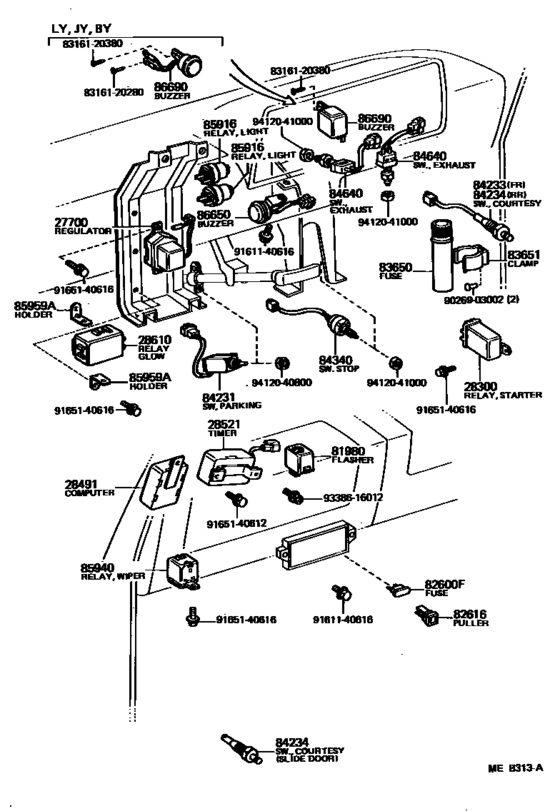

Switch & Relay & Computer ([01.1982 - ] (8201- )) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- RY32
- body
- TR
- ENGINE
- 5R
- Model
- TOYO ACE
- From
- 01.1982
- To
- 07.1985
- Gear Shift Type
- 4H
- Vehicle Model
- TOYO ACE
- Deck,cab
- T3
- Loading Capacity
- 15T
- Building Condition
- CBU
- Deck(Material)
- TS
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27700
|
27700
27700-44020
Regulator Assy, Generator
[09.1980 - 07.1985] L,12R,2J,2L,5R..JY30,LY2#,3#,RY2#,3# 12V |
27700-44020 |
— | ||
| replacement | |||||
|
27700
|
27700
27700-13040
Regulator Assy, Generator
[09.1980 - 07.1985] L,12R,2J,2L,5R..JY30,LY2#,3#,RY2#,3# 12V |
27700-13040 |
— | ||
|
81980
|
81980
81980-22070
Flasher Assy, Turn Signal
[10.1981 - 07.1985] JY30,LY2#,3#,RY2#,3# 12V |
81980-22070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[10.1981 - 07.1985] JY30,LY2#,3#,RY2#,3# 12V |
81980-16010 |
US $134.48 |
||
|
82600F
|
82600F
90982-09001 Fuse, Fuse Block[01.1982 - 07.1985] BY3#,JY30,LY2#,3#,RY21,32 ５Ａ,5A |
90982-09001 |
US $1.05 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[01.1982 - 07.1985] BY3#,JY30,LY2#,3#,RY21,32 １０Ａ,10A |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[01.1982 - 07.1985] BY3#,JY30,LY2#,3#,RY21,32 １５Ａ,15A |
90982-09003 |
from US $0.90 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[01.1982 - 07.1985] BY3#,JY30,LY2#,3#,RY21,32 |
82616-12010 |
US $3.40 |
||
|
83650
|
83650
90986-01003
Fusee
[03.1979 - 07.1985] BY3#,JY30,LY2#,3#,RY2#,3# |
90986-01003 |
— | ||
|
83651
|
83651
81711-95401 Clamp, Fusee[03.1979 - 07.1985] BY3#,JY30,LY2#,3#,RY2#,3# |
81711-95401 |
US $9.76 |
||
| replacement | |||||
|
83651
|
83651
81711-95412
Lens, Front Marker Lamp, Rh
[03.1979 - 07.1985] BY3#,JY30,LY2#,3#,RY2#,3# |
81711-95412 |
— | ||
|
84231
|
84231
84380-35010 Switch Assy, Courtesy Lamp (For Parking Brake)[03.1979 - 07.1985] RY2#,3# |
84380-35010 |
US $17.30 |
||
|
84233
|
84233
84230-22051
Switch Assy, Courtesy Lamp (For Front Door)
[01.1982 - 07.1985] BY3#,JY30,LY2#,3#,RY21,32 |
84230-22051 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-28010 Switch Assy, Courtesy Lamp[01.1982 - 07.1985] BY3#,JY30,LY2#,3#,RY21,32 |
84231-28010 |
from US $16.93 |
||
|
84340
|
84340
84340-22071
Switch Assy, Stop Lamp
[03.1979 - 02.1982] BY30,JY30,LY20,30,RY2#,3# |
84340-22071 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-22072 Switch Assy, Stop Lamp[03.1979 - 02.1982] BY30,JY30,LY20,30,RY2#,3# |
84340-22072 |
from US $25.97 |
||
|
84340
|
84340
84340-22072 Switch Assy, Stop Lamp[02.1982 - 07.1985] BY3#,JY30,LY2#,3#,RY21,32 |
84340-22072 |
from US $25.97 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[04.1980 - 07.1985] JY30,LY2#,3#,RY2#,3# 12V |
90987-01003 |
from US $35.65 |
||
|
85940
|
85940
85940-89101
Relay Assy, Windshield Wiper
[07.1979 - 07.1985] JY30,LY2#,3#,RY2#,3# 12V |
85940-89101 |
— | ||
|
86690
|
86690
86650-95010 Chime, Speed Warning[03.1979 - 07.1985] RY2#,3# |
86650-95010 |
US $18.93 |
||
| replacement | |||||
|
86690
|
86690
86650-28010
Buzzer Assy
[03.1979 - 07.1985] RY2#,3# |
86650-28010 |
— | ||
|
8316120280
|
8316120280
83161-20280 Case, Combination Meter Mirror, No.1 |
83161-20280 |
US $1.69 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
9026903002
|
9026903002
90269-03002 RIVET |
90269-03002 |
from US $1.19 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9338616012
|
9338616012
93386-16012 New Genuine Part |
93386-16012 |
US $1.02 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
