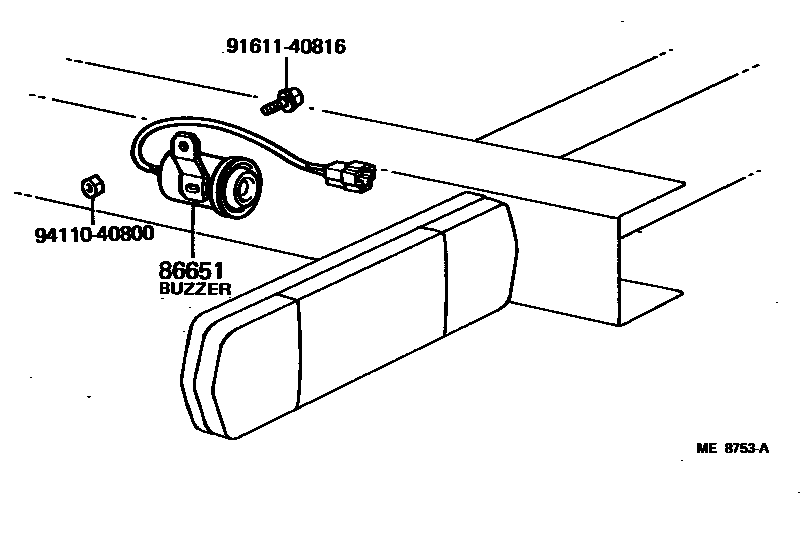

Switch & Relay & Computer ([03.1980 - ] (8003- )) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- RY32
- body
- TR
- ENGINE
- 5R
- Model
- TOYO ACE
- From
- 01.1982
- To
- 07.1985
- Gear Shift Type
- 4H
- Vehicle Model
- TOYO ACE
- Deck,cab
- T3
- Loading Capacity
- 15T
- Building Condition
- CBU
- Deck(Material)
- TS
- Rear Tire
- ST
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86651
|
86651
86650-95406 Buzzer Assy, Back[01.1982 - 07.1985] JY30,LY2#,3#,RY21,32 12V |
86650-95406 |
US $96.10 |
||
| replacement | |||||
|
86651
|
86651
86650-95409 Buzzer Assy, Reverse Warning[01.1982 - 07.1985] JY30,LY2#,3#,RY21,32 12V |
86650-95409 |
US $88.82 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
