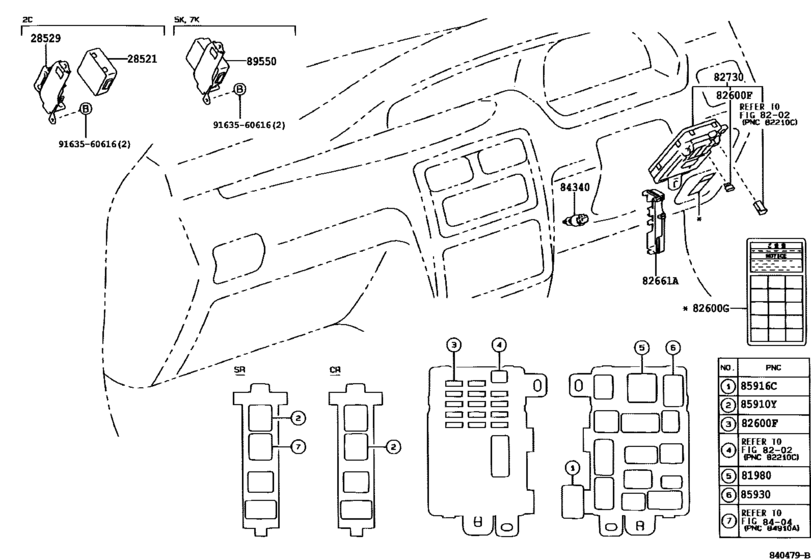

Switch & Relay & Computer ([11.1996 - 12.1998] COWL,INSTRUMENT PANEL RELAY (9611-9812)) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- SR40
- body
- WG
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- TOWN ACE/ LITE ACE
- From
- 11.1996
- To
- 11.2001
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[11.1996 - 12.1998] CR41,KR4#,SR40 |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[11.1996 - 12.1998] CR41,KR4#,SR40 |
81980-32010 |
from US $50.29 |
||
|
81980
|
81980
81980-28010 Flasher Assy, Turn Signal[05.2001 - 11.2001] SR40 |
81980-28010 |
US $92.40 |
||
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[12.1998 - 05.2001] CR4#,KR42,SR40 |
81980-50030 |
from US $50.96 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[11.1996 - 12.1998] CR41,KR4#,SR40 5A,MINI FUSE |
90982-09007 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[11.1996 - 12.1998] CR41,KR4#,SR40 10A,MINI FUSE |
90982-09009 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[11.1996 - 12.1998] CR41,KR4#,SR40 15A,MINI FUSE |
90982-09010 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[11.1996 - 12.1998] CR41,KR4#,SR40 20A,MINI FUSE |
90982-09011 |
from US $0.83 |
||
|
82600G
|
82600G
82683-28270 Plate, Caution(For Fuse)[12.1998 - 11.2001] SR40 |
82683-28270 |
US $3.64 |
||
|
82600G
|
82600G
82683-28420 Plate, Caution(For Fuse)[01.1998 - 12.1998] SR40..GEN |
82683-28420 |
US $3.64 |
||
|
82600G
|
82600G
82683-28430 Plate, Caution(For Fuse)[11.1996 - 01.1998] CR41,KR4#;SR40..GEN |
82683-28430 |
US $3.64 |
||
|
82661A
|
82661A
82661-28170 Cover, Relay Block, No.2[11.1996 - 12.1998] CR41,KR4#,SR40 |
82661-28170 |
US $13.40 |
||
|
82661A
|
82661A
82661-28290 Cover, Relay Block, No.2[12.1998 - 11.2001] SR40 |
82661-28290 |
US $8.30 |
||
|
82730
|
82730
82730-28010 Block Assy, Instrument Panel Junction[01.1998 - 12.1998] SR40 |
82730-28010 |
US $283.92 |
||
|
82730
|
82730
82730-28030 Block Assy, Instrument Panel Junction[11.1996 - 01.1998] CR41,KR4#;SR40..GEN |
82730-28030 |
US $283.92 |
||
|
82730
|
82730
82730-28090 Block Assy, Instrument Panel Junction[12.1998 - 11.2001] SR40 |
82730-28090 |
US $730.91 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[11.1996 - 12.1998] CR41,KR4#,SR40 |
84340-32050 |
from US $17.44 |
||
|
85910Y
|
85910Y
90987-02012 Relay, Ignition, No.1[11.1996 - 12.1998] SR40..GEN |
90987-02012 |
from US $24.99 |
||
|
85930
|
85930
90987-02012 Relay, Ignition, No.1[11.1996 - 12.1998] SR40 |
90987-02012 |
from US $24.99 |
||
|
9163560616
|
9163560616
91635-60616
New Genuine Part
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.68 |
||
