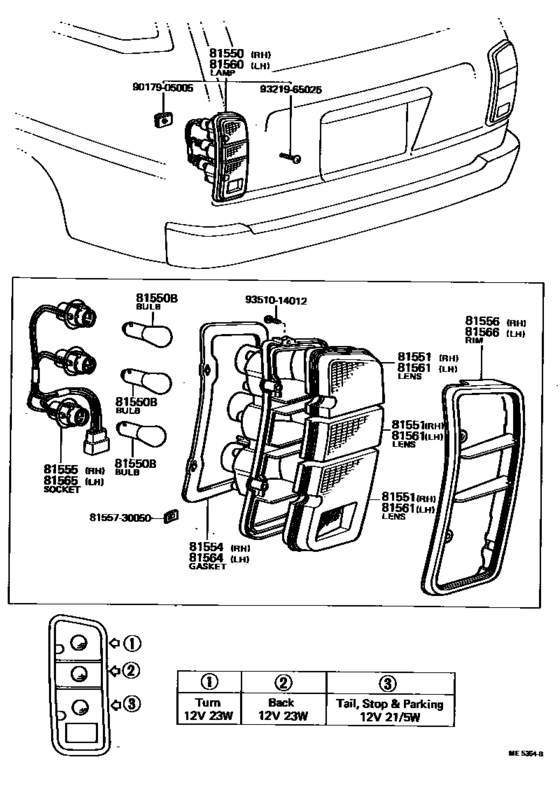

Rear Combination Lamp ([10.1976 - ] (7610- )KR1#,TR1#) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- TR11V
- body
- V
- Roof
- SRF
- ENGINE
- 2TJ
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 10.1981
- To
- 10.1982
- Grade
- DLX
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-80024 Lamp Assy, Rear Combination, Rh[01.1981 - 10.1982] KR12,TR1# |
81550-80024 |
US $168.90 |
||
| replacement | |||||
|
81550
|
81550
81550-87002
Lamp Assy, Rear Combination, Rh
[01.1981 - 10.1982] KR12,TR1# |
81550-87002 |
— | ||
|
81550B
|
81550B
99132-11230 Bulb, Fog Lamp[10.1976 - 10.1982] KR1#,RR1#,2#,TR1# １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
US $3.05 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[10.1976 - 10.1982] KR1#,RR1#,2#,TR1# １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $2.75 |
||
|
81551
|
81551
81551-87001 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [10.1976 - 10.1982] KR1#,TR1# RED |
81551-87001 |
US $17.91 |
||
|
81551
|
81551
81557-87001 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [10.1976 - 10.1982] KR1#,TR1# CLEAR |
81557-87001 |
US $8.88 |
||
|
81551
|
81551
81559-87001 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [10.1976 - 10.1982] KR1#,TR1# AMBER |
81559-87001 |
US $12.52 |
||
|
81554
|
81554
81554-87001 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [10.1976 - 10.1982] KR1#,TR1# |
81554-87001 |
US $8.30 |
||
|
81555
|
81555
81555-87001
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[10.1976 - 10.1982] KR1#,TR1# |
81555-87001 |
— | ||
|
81556
|
81556
81556-87003 Rim, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [01.1981 - 10.1982] KR12,TR1# |
81556-87003 |
US $34.94 |
||
|
81560
|
81560
81560-80026 Lamp Assy, Rear Combination, Lh[01.1981 - 10.1982] KR12,TR1# |
81560-80026 |
US $168.90 |
||
| replacement | |||||
|
81560
|
81560
81560-87002
Lamp Assy, Rear Combination, Lh
[01.1981 - 10.1982] KR12,TR1# |
81560-87002 |
— | ||
|
81561
|
81561
81561-87001 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [10.1976 - 10.1982] KR1#,TR1# RED |
81561-87001 |
US $17.91 |
||
|
81561
|
81561
81567-87001 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [10.1976 - 10.1982] KR1#,TR1# CLEAR |
81567-87001 |
US $8.88 |
||
|
81561
|
81561
81569-87001 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [10.1976 - 10.1982] KR1#,TR1# AMBER |
81569-87001 |
US $11.79 |
||
|
81564
|
81564
81554-87001 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [10.1976 - 10.1982] KR1#,TR1# |
81554-87001 |
US $8.30 |
||
|
81565
|
81565
81555-87001
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[10.1976 - 10.1982] KR1#,TR1# |
81555-87001 |
— | ||
|
81566
|
81566
81566-87003 Rim, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [01.1981 - 10.1982] KR12,TR1# |
81566-87003 |
US $34.94 |
||
|
8155730050
|
8155730050
81557-30050
Reflector, Rear Combination Lamp Reflex
|
81557-30050 |
— | ||
|
9017905005
|
9017905005
90179-05005 New Genuine Part |
90179-05005 |
US $3.06 |
||
|
9321965025
|
9321965025
93219-65025 New Genuine Part |
93219-65025 |
US $2.62 |
||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $0.96 |
||
