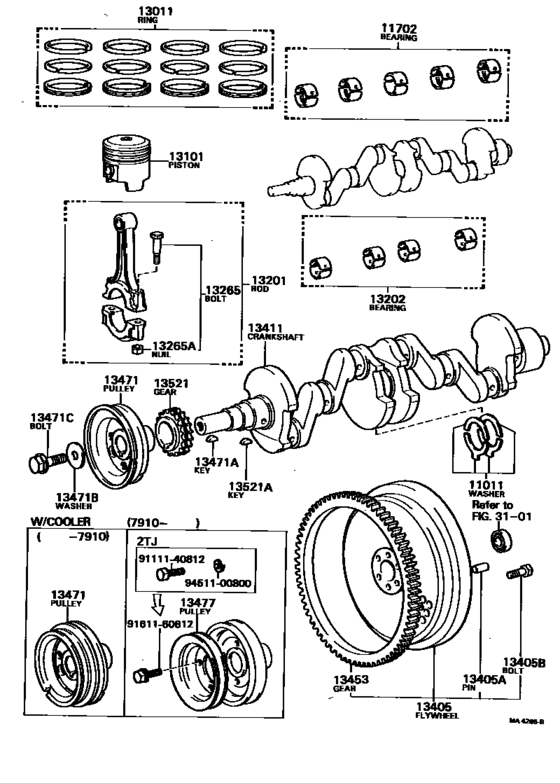

Crankshaft & Piston ([10.1976 - ] (7610- )12T,13TU,2TJ) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- TR11V
- body
- V
- Roof
- SRF
- ENGINE
- 2TJ
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1981
- To
- 10.1982
- Grade
- DLX
- Gear Shift Type
- 4H
- No.of Doors
- V5D
- Seating Capacity
- 02S
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# ＳＴＤ,STD |
11011-25010 |
from US $22.85 |
||
|
11011
|
11011
11012-25010 Washer Set, Crankshaft Thrust[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# O/S 0.125 |
11012-25010 |
US $40.62 |
||
|
11011
|
11011
11013-25010 Washer Set, Crankshaft Thrust[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# O/S 0.250 |
11013-25010 |
US $40.62 |
||
|
11702
|
11702
11702-25013 Bearing Set, Crankshaft[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# STD |
11702-25013 |
from US $81.67 |
||
|
11702
|
11702
11703-25013 Bearing Set, Crankshaft[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# U/S 0.05 |
11703-25013 |
US $317.41 |
||
|
11702
|
11702
11704-25013 Bearing Set, Crankshaft[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# U/S 0.25 |
11704-25013 |
US $317.41 |
||
|
11702
|
11702
11705-25013 Bearing Set, Crankshaft[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# U/S 0.50 |
11705-25013 |
US $317.41 |
||
|
13011
|
13011
13011-28030
Ring Set, Piston
[08.1978 - 07.1982] 13TU,2TJ..TR1# STD |
13011-28030 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-28031 Ring Set, Piston[08.1978 - 07.1982] 13TU,2TJ..TR1# STD |
13011-28031 |
from US $147.73 |
||
|
13011
|
13011
13011-28031 Ring Set, Piston[07.1982 - 10.1982] 2TJ..TR11..5F;13TU,2TJ..TR1#..CNP,CTM,DLX,GEX,STD,SUE STD |
13011-28031 |
from US $147.73 |
||
|
13011
|
13011
13013-28030 Ring Set, Piston[08.1978 - 07.1982] 13TU,2TJ..TR1# O/S 0.50 |
13013-28030 |
US $202.38 |
||
| replacement | |||||
|
13011
|
13011
13013-28031 Ring Set, Piston[08.1978 - 07.1982] 13TU,2TJ..TR1# O/S 0.50 |
13013-28031 |
from US $79.09 |
||
|
13011
|
13011
13013-28031 Ring Set, Piston[07.1982 - 10.1982] 2TJ..TR11..5F;13TU,2TJ..TR1#..CNP,CTM,DLX,GEX,STD,SUE O/S 0.50 |
13013-28031 |
from US $79.09 |
||
|
13011
|
13011
13014-28030 Ring Set, Piston[08.1978 - 07.1982] 13TU,2TJ..TR1# O/S 0.75 |
13014-28030 |
US $202.38 |
||
| replacement | |||||
|
13011
|
13011
13014-28031 Ring Set, Piston[08.1978 - 07.1982] 13TU,2TJ..TR1# O/S 0.75 |
13014-28031 |
from US $150.93 |
||
|
13011
|
13011
13014-28031 Ring Set, Piston[07.1982 - 10.1982] 2TJ..TR11..5F;13TU,2TJ..TR1#..CNP,CTM,DLX,GEX,STD,SUE O/S 0.75 |
13014-28031 |
from US $150.93 |
||
|
13011
|
13011
13015-28030 Ring Set, Piston[08.1978 - 07.1982] 13TU,2TJ..TR1# O/S 1.00 |
13015-28030 |
US $202.38 |
||
| replacement | |||||
|
13011
|
13011
13015-28031 Ring Set, Piston[08.1978 - 07.1982] 13TU,2TJ..TR1# O/S 1.00 |
13015-28031 |
from US $146.68 |
||
|
13011
|
13011
13015-28031 Ring Set, Piston[07.1982 - 10.1982] 2TJ..TR11..5F;13TU,2TJ..TR1#..CNP,CTM,DLX,GEX,STD,SUE O/S 1.00 |
13015-28031 |
from US $146.68 |
||
|
13101
|
13101
13101-26031
Piston Sub-Assy, W/pin
[10.1979 - 10.1982] 2TJ..TR11 STD |
13101-26031 |
— | ||
|
13101
|
13101
13103-26031 Piston Sub-Assy, W/pinW/PIN [10.1979 - 10.1982] 2TJ..TR11 O/S 0.50 |
13103-26031 |
US $103.38 |
||
|
13101
|
13101
13104-26031 Piston Sub-Assy, W/pinW/PIN [10.1979 - 10.1982] 2TJ..TR11 O/S 0.75 |
13104-26031 |
US $103.38 |
||
|
13101
|
13101
13105-26031 Piston Sub-Assy, W/pinW/PIN [10.1979 - 10.1982] 2TJ..TR11 O/S 1.00 |
13105-26031 |
US $103.38 |
||
|
13201
|
13201
13201-25010 Rod Sub-Assy, Connecting[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# |
13201-25010 |
US $116.48 |
||
|
13202
|
13202
13202-25010
Bearing Set, Connecting Rod
[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# STD |
13202-25010 |
— | ||
| replacement | |||||
|
13202
|
13202
13202-18030
Bearing Set, Connecting Rod
[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# STD |
13202-18030 |
— | ||
|
13202
|
13202
13203-25010 Bearing Set, Connecting Rod[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# U/S 0.05 |
13203-25010 |
US $184.91 |
||
| replacement | |||||
|
13202
|
13202
13203-18030 Bearing Set, Connecting Rod[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# U/S 0.05 |
13203-18030 |
US $176.18 |
||
|
13202
|
13202
13204-25010 Bearing Set, Connecting Rod[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# U/S 0.25 |
13204-25010 |
US $184.91 |
||
| replacement | |||||
|
13202
|
13202
13204-18030 Bearing Set, Connecting Rod[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# U/S 0.25 |
13204-18030 |
US $176.18 |
||
|
13202
|
13202
13205-25010 Bearing Set, Connecting Rod[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# U/S 0.50 |
13205-25010 |
US $184.91 |
||
| replacement | |||||
|
13202
|
13202
13205-18030 Bearing Set, Connecting Rod[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# U/S 0.50 |
13205-18030 |
US $176.18 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# |
13265-29025 |
US $13.62 |
||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[05.1980 - 10.1982] 12RJ..RR11,21; 13TU,2TJ..TR1# |
90170-09195 |
US $3.20 |
||
|
13405
|
13405
13405-29115 Flywheel Sub-Assy[10.1976 - 10.1982] 12T,13TU,2TJ..TR1#..MTM N=115 |
13405-29115 |
US $362.54 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[10.1976 - 10.1982] 12RJ..RR1#,2# 長さ＝２３，外径＝８,L=23,OD=8; 12T,13TU,2TJ..TR1#..MTM 長さ＝２３，外径＝８,L=23,OD=8 |
90250-08054 |
from US $0.98 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[10.1976 - 10.1982] 12T,13TU,2TJ..TR1#..MTM |
90105-10042 |
from US $1.29 |
||
|
13411
|
13411
13411-25012 Crankshaft[04.1979 - 10.1982] 2TJ..TR10,11 |
13411-25012 |
US $1,301.66 |
||
| replacement | |||||
|
13411
|
13411
13411-27901 Crankshaft[04.1979 - 10.1982] 2TJ..TR10,11 |
13411-27901 |
US $1,186.64 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[10.1976 - 10.1982] 12T,13TU,2TJ..TR1#..MTM N=115 |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13471-18010
Pulley, Crankshaft
[10.1979 - 10.1982] 13TU,2TJ..TR1# |
13471-18010 |
— | ||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[10.1976 - 10.1982] 3KJ,4KJ..KR1#; 12T,13TU,2TJ..TR1# |
90280-05010 |
from US $1.74 |
||
|
13471B
|
13471B
90209-13003 Washer, Plate(For Crankshaft Pulley Set)[02.1979 - 10.1982] 4KJ..KR1#; 13TU,2TJ..TR1# |
90209-13003 |
US $2.80 |
||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[11.1980 - 10.1982] 4KJ..KR12; 13TU,2TJ..TR1# |
90105-12051 |
from US $2.59 |
||
|
13477
|
13477
13477-18010
Pulley, Crankshaft, No.2
[10.1979 - 02.1982] 2TJ..TR11 W/COOLER |
13477-18010 |
— | ||
| replacement | |||||
|
13477
|
13477
13477-18011 Pulley, Crankshaft, No.2[10.1979 - 02.1982] 2TJ..TR11 W/COOLER |
13477-18011 |
US $59.55 |
||
|
13477
|
13477
13477-18011 Pulley, Crankshaft, No.2[02.1982 - 10.1982] 13TU..TR15 W/COOLER; 2TJ..TR11..5F;2TJ..TR11..DLX W/COOLER |
13477-18011 |
US $59.55 |
||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[10.1976 - 10.1982] 12T,13TU,2TJ..TR1# N=18 |
13521-33010 |
from US $35.80 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[10.1976 - 10.1982] 3KJ,4KJ..KR1#; 12T,13TU,2TJ..TR1# |
90280-05010 |
from US $1.74 |
||
|
9111140812
|
9111140812
91111-40812 Bolt (for Transmission Control Cable Bracket) |
91111-40812 |
US $2.48 |
||
| replacement | |||||
|
9111140812
|
9111140812
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
