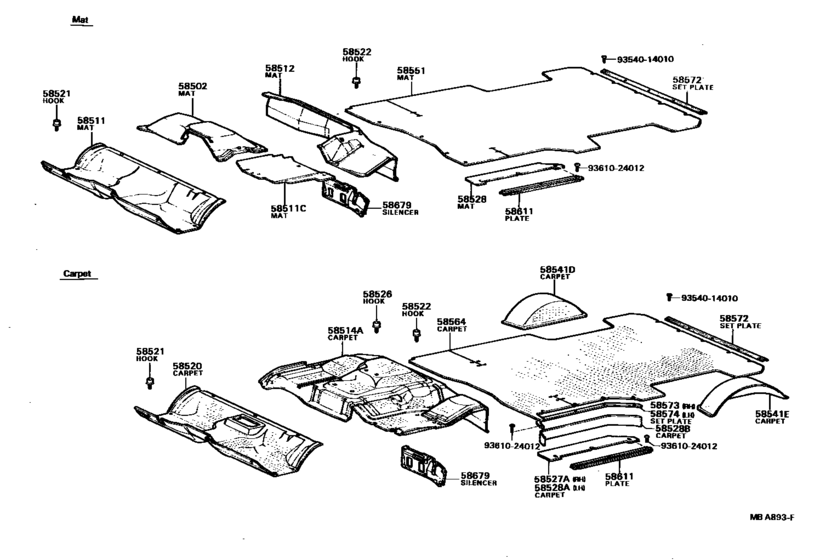

Floor Mat & Silencer Pad ([10.1979 - ] (7910- )TR11) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- TR11V
- body
- V
- Roof
- SRF
- ENGINE
- 2TJ
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1981
- To
- 10.1982
- Grade
- DLX
- Gear Shift Type
- 4H
- No.of Doors
- V5D
- Seating Capacity
- 02S
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58502
|
58502
58502-87013
Mat Assy, Engine Service Hole Cover
[01.1981 - 10.1982] TR11..DLX |
58502-87013 |
— | ||
|
58511
|
58511
58510-87031
Mat, Floor, Front
[01.1981 - 10.1982] TR11..DLX |
58510-87031 |
— | ||
|
58511C
|
58511C
58520-87003-06
Mat Sub-Assy, Front Floor, Lh
[01.1981 - 10.1982] TR11..DLX BROWN,BROWN |
58520-87003-06 |
— | ||
|
58512
|
58512
58506-87013
Mat, Seat Floor
[01.1981 - 10.1981] TR11..DLX |
58506-87013 |
— | ||
|
58512
|
58512
58506-87014
Mat, Seat Floor
[01.1981 - 10.1981] TR11..DLX W/SEPARATOR CURTAIN |
58506-87014 |
— | ||
|
58512
|
58512
58506-87015
Mat, Seat Floor
[10.1981 - 10.1982] TR11..02S |
58506-87015 |
— | ||
|
58512
|
58512
58506-87016
Mat, Seat Floor
[10.1981 - 10.1982] TR11..02S W/SEPARATOR CURTAIN |
58506-87016 |
— | ||
|
58521
|
58521
58521-87202
Hook, Male, No.1
[01.1981 - 10.1982] KR12,TR1# |
58521-87202 |
— | ||
|
58522
|
58522
58521-87202
Hook, Male, No.1
[01.1981 - 10.1982] KR12,TR1# |
58521-87202 |
— | ||
|
58526
|
58526
58521-87201
Hook, Male, No.2
[01.1981 - 10.1982] TR1# |
58521-87201 |
— | ||
|
58528
|
58528
58518-87001-26
Mat, Rear Door Step
[01.1981 - 10.1982] KR12,TR11..DLX,STD LH,BROWN,BROWN |
58518-87001-26 |
— | ||
|
58528
|
58528
58571-87001-06
Mat, Rear Door Step
[01.1981 - 10.1982] KR12,TR11..V5D..DLX RH,BROWN,BROWN |
58571-87001-06 |
— | ||
|
58551
|
58551
58540-87035
Mat, Floor, Rear
[10.1981 - 10.1982] TR11..V5D..02S |
58540-87035 |
— | ||
|
58572
|
58572
58612-87001
Set Plate, Rear Floor Mat, Rear
[01.1981 - 10.1982] KR12,TR1# |
58612-87001 |
— | ||
|
58611
|
58611
67913-87001
Plate, Rear Floor Mat Set, Side
[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD |
67913-87001 |
— | ||
|
58679
|
58679
58629-87003
Silencer, Header Panel
[01.1981 - 10.1982] TR11 |
58629-87003 |
— | ||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.92 |
||
|
9361024012
|
9361024012
93610-24012 New Genuine Part |
93610-24012 |
US $2.18 |
