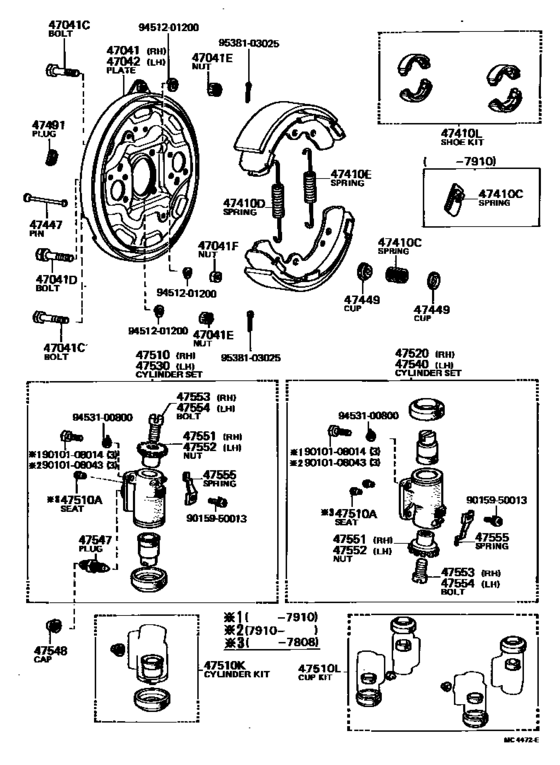

Front Drum Brake Wheel Cylinder & Backing Plate ([10.1976 - ] (7610- )KR1#,TR1#..CNP,CTM,DLX,HDX,STD,SUE) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- TR11V
- body
- V
- Roof
- SRF
- ENGINE
- 2TJ
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1981
- To
- 10.1982
- Grade
- DLX
- Gear Shift Type
- 4H
- No.of Doors
- V5D
- Seating Capacity
- 02S
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47041
|
47041
47041-28030
Plate Sub-Assy, Brake Backing, Front Rh
[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
47041-28030 |
— | ||
|
47041C
|
47041C
90102-12001 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[10.1979 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE ＊１２−１．２５ＰＸ５８−２３,*12-1.25PX58-23 |
90102-12001 |
US $7.57 |
||
|
47041C
|
47041C
90102-12055 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[10.1979 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE *12-1.25PX56-22 |
90102-12055 |
US $3.49 |
||
|
47041D
|
47041D
91171-71235 Bolt(For Backing Plate To Steering Knuckle Setting)[10.1979 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE *12-1.25PX35-30 |
91171-71235 |
US $2.91 |
||
|
47041E
|
47041E
94145-71200 Nut(For Backing Plate To Steering Knuckle Arm Setting)[10.1979 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
94145-71200 |
US $1.46 |
||
|
47041F
|
47041F
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting)[10.1979 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
94115-51200 |
US $3.05 |
||
|
47042
|
47042
47042-28030
Plate Sub-Assy, Brake Backing, Front Lh
[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
47042-28030 |
— | ||
|
47410C
|
47410C
90501-18017 Spring(For Front Brake Shoe Hold Down)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
90501-18017 |
from US $1.99 |
||
|
47410D
|
47410D
90506-20014 Spring, Tension(For Front Brake Shoe Return)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
90506-20014 |
US $4.66 |
||
|
47410E
|
47410E
90506-20014 Spring, Tension(For Front Brake Shoe Return)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
90506-20014 |
US $4.66 |
||
|
47410L
|
47410L
04494-28020 Shoe Kit, Front Brake[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
04494-28020 |
US $131.04 |
||
| replacement | |||||
|
47410L
|
47410L
04494-20130
Shoe Kit, Front Brake
[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
04494-20130 |
— | ||
|
47410L
|
47410L
04496-28020
Shoe Kit, Front Brake
[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE REBUILT |
04496-28020 |
— | ||
|
47447
|
47447
47447-30020 Pin, Shoe Hold Down Spring(For Front Brake)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
47447-30020 |
from US $1.42 |
||
| replacement | |||||
|
47447
|
47447
47447300201
Pin Shoe Hold Down *
[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
47447300201 |
— | ||
|
47449
|
47449
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
47449-30020 |
from US $1.29 |
||
|
47491
|
47491
47491-20020 Plug, Hole(For Front Brake)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
47491-20020 |
from US $1.79 |
||
|
47510
|
47510
47510-29205
Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE ID=23.81 |
47510-29205 |
— | ||
| replacement | |||||
|
47510
|
47510
47510-27040
Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE ID=23.81 |
47510-27040 |
— | ||
|
47510K
|
47510K
04473-27010
Cylinder Kit, Front Wheel
[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE ID=23.81 |
04473-27010 |
— | ||
|
47510L
|
47510L
04905-20040
Cup Kit, Front Wheel Cylinder
[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE ID=23.81 |
04905-20040 |
— | ||
|
47520
|
47520
47520-29125
Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE ID=23.81 |
47520-29125 |
— | ||
| replacement | |||||
|
47520
|
47520
47520-27040
Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE ID=23.81 |
47520-27040 |
— | ||
|
47530
|
47530
47530-29205
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE ID=23.81 |
47530-29205 |
— | ||
| replacement | |||||
|
47530
|
47530
47530-27040
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE ID=23.81 |
47530-27040 |
— | ||
|
47540
|
47540
47540-29125 Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE ID=23.81 |
47540-29125 |
US $74.26 |
||
| replacement | |||||
|
47540
|
47540
47540-27040
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE ID=23.81 |
47540-27040 |
— | ||
|
47547
|
47547
47547-12010 Plug, Bleeder(For Release Cylinder)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
47547-12010 |
from US $2.32 |
||
|
47548
|
47548
31478-30010 Bleeder Plug Cap[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
31478-30010 |
from US $1.60 |
||
|
47551
|
47551
47551-20010 Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE LH SCREW |
47551-20010 |
US $10.92 |
||
|
47552
|
47552
47552-20010 Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE RH SCREW |
47552-20010 |
US $10.92 |
||
|
47553
|
47553
47553-20010 Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE LH SCREW |
47553-20010 |
US $8.30 |
||
|
47554
|
47554
47554-20010 Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE RH SCREW |
47554-20010 |
US $8.30 |
||
|
47555
|
47555
47555-20011 Spring, Adjuster Lock(For Front Brake)[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
47555-20011 |
US $3.35 |
||
|
9010108014
|
9010108014
90101-08014 Bolt (For Transmission Control Cable Bracket) |
90101-08014 |
US $1.60 |
||
| replacement | |||||
|
9010108014
|
9010108014
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9010108043
|
9010108043
90101-08043 New Genuine Part |
90101-08043 |
US $0.52 |
||
|
9015950013
|
9015950013
90159-50013 New Genuine Part |
90159-50013 |
US $2.62 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
US $2.87 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.78 |
||
