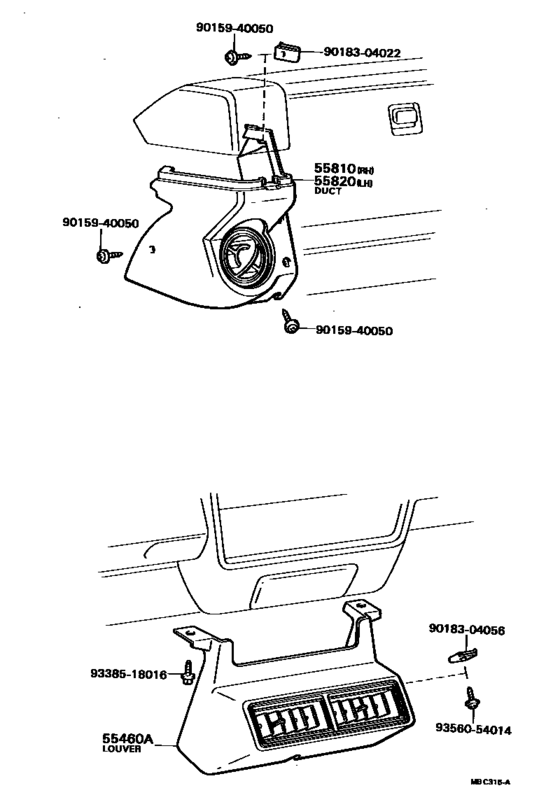

Front Ventilator ([01.1981 - ] (8101- )KR12,TR1#) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- TR11V
- body
- V
- Roof
- SRF
- ENGINE
- 2TJ
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1981
- To
- 10.1982
- Grade
- DLX
- Gear Shift Type
- 4H
- No.of Doors
- V5D
- Seating Capacity
- 02S
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55460A
|
55460A
55460-87001 Louver Assy, Center VentilatorCENTER VENTILATOR [01.1981 - 10.1982] KR12,TR1# |
55460-87001 |
US $170.35 |
||
|
55810
|
55810
55810-87001-16 Duct Assy, Side Ventilator, Rh[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD BROWN,BROWN |
55810-87001-16 |
US $117.94 |
||
| replacement | |||||
|
55810
|
55810
55810-87002 Duct Assy, Side Ventilator, Rh[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD BROWN,BROWN |
55810-87002 |
US $97.55 |
||
|
55810
|
55810
55810-87002 Duct Assy, Side Ventilator, Rh[01.1981 - 10.1982] KR12,TR1# SIDE *DEF |
55810-87002 |
US $97.55 |
||
|
55820
|
55820
55820-87001-16 Duct Assy, Side Ventilator, Lh[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD BROWN,BROWN |
55820-87001-16 |
US $117.94 |
||
| replacement | |||||
|
55820
|
55820
55820-87002 Duct Assy, Side Ventilator, Lh[01.1981 - 10.1982] KR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD BROWN,BROWN |
55820-87002 |
US $97.55 |
||
|
55820
|
55820
55820-87002 Duct Assy, Side Ventilator, Lh[01.1981 - 10.1982] KR12,TR1# SIDE *DEF |
55820-87002 |
US $97.55 |
||
|
9015940050
|
9015940050
90159-40050
New Genuine Part
|
90159-40050 |
— | ||
|
9018304022
|
9018304022
90183-04022 Nut, Spring |
90183-04022 |
US $2.48 |
||
|
9018304056
|
9018304056
90183-04056 Nut, Spring |
90183-04056 |
from US $1.13 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
|
9356054014
|
9356054014
93560-54014 SCREW |
93560-54014 |
from US $0.70 |
||
