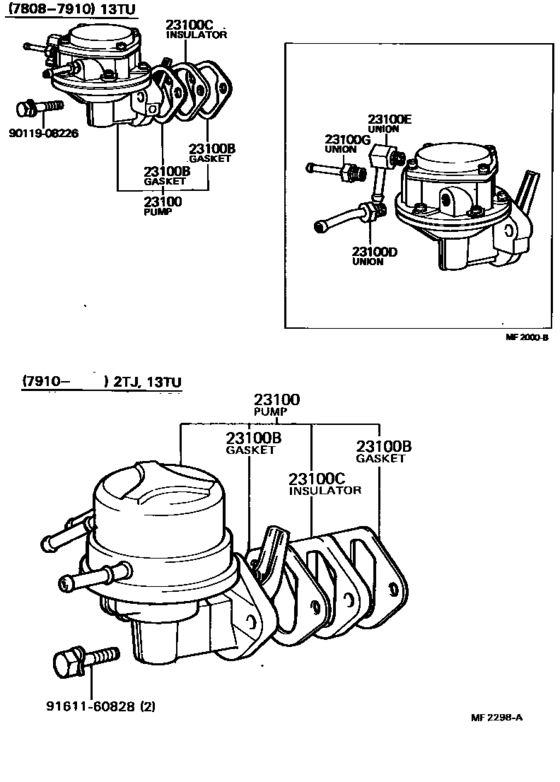

Fuel Pump & Pipe ([10.1979 - ] MF2000B,MF2298A (7808-7910)13TU ; (7910- )13TU,2TJ) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- TR11V
- body
- V
- Roof
- SRF
- ENGINE
- 2TJ
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1981
- To
- 10.1982
- Grade
- DLX
- Gear Shift Type
- 4H
- No.of Doors
- V5D
- Seating Capacity
- 02S
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-19115 Pump Assy, FuelFUEL [10.1979 - 10.1982] 13TU,2TJ..TR1# |
23100-19115 |
US $131.04 |
||
| replacement | |||||
|
23100
|
23100
23100-19117
Pump Assy, Fuel
[10.1979 - 10.1982] 13TU,2TJ..TR1# |
23100-19117 |
— | ||
|
23100B
|
23100B
90923-05005
Gasket, Cylinder Block Side Cover, No.2
[10.1976 - 10.1982] 12RJ..RR1#,2#; 12T,13TU,2TJ..TR1# |
90923-05005 |
— | ||
| replacement | |||||
|
23100B
|
23100B
90923-05019 Gasket, Fuel Pump[10.1976 - 10.1982] 12RJ..RR1#,2#; 12T,13TU,2TJ..TR1# |
90923-05019 |
from US $2.77 |
||
|
23100C
|
23100C
90923-06001
Insulator, Fuel Pump
[10.1976 - 10.1982] 12RJ..RR1#,2#; 12T,13TU,2TJ..TR1# |
90923-06001 |
— | ||
| replacement | |||||
|
23100C
|
23100C
90923-06009 Insulator, Fuel Pump[10.1976 - 10.1982] 12RJ..RR1#,2#; 12T,13TU,2TJ..TR1# |
90923-06009 |
from US $5.56 |
||
|
23100D
|
23100D
90404-27010
Union, Nipple(For Fuel Outlet)
[10.1979 - 10.1982] 13TU,2TJ..TR1# |
90404-27010 |
— | ||
|
23100E
|
23100E
23116-27020
Union, Nipple(For Fuel Inlet)
[10.1979 - 10.1982] 13TU,2TJ..TR1# |
23116-27020 |
— | ||
|
23100G
|
23100G
90404-27020
Union, Nipple(For Fuel Return Hose)
[10.1979 - 10.1982] 13TU,2TJ..TR1# |
90404-27020 |
— | ||
|
9011908226
|
9011908226
90119-08226 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90119-08226 |
US $2.62 |
||
| replacement | |||||
|
9011908226
|
9011908226
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.06 |
||
|
9161160828
|
9161160828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
