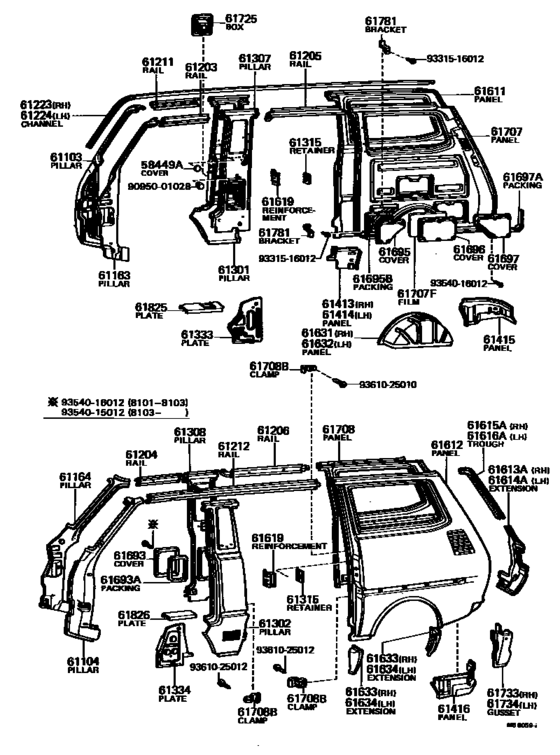

Side Member ([10.1976 - ] (7610- )V5D) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- TR11V
- body
- V
- Roof
- SRF
- ENGINE
- 2TJ
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1981
- To
- 10.1982
- Grade
- DLX
- Gear Shift Type
- 4H
- No.of Doors
- V5D
- Seating Capacity
- 02S
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61103
|
61103
61027-87004
Pillar Sub-Assy, Front Body, Rh
[01.1981 - 10.1982] KR12,TR1# |
61027-87004 |
— | ||
|
61104
|
61104
61028-87002
Pillar Sub-Assy, Front Body, Lh
[01.1981 - 10.1982] KR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE |
61028-87002 |
— | ||
|
61163
|
61163
61023-87007
Pillar, Front Body, Inner Rh
[01.1981 - 10.1982] KR12,TR1#..CTM,DLX,HDX,STD |
61023-87007 |
— | ||
|
61164
|
61164
61024-87006
Pillar, Front Body, Inner Lh
[01.1981 - 10.1982] KR12,TR1# |
61024-87006 |
— | ||
|
61203
|
61203
61231-95700
Rail Sub-Assy, Roof Side, Inner Rh
[10.1976 - 10.1982] KR1#,RR1#,2#,TR1# |
61231-95700 |
— | ||
|
61204
|
61204
61202-95700
Rail Sub-Assy, Roof Side, Inner Lh
[10.1976 - 10.1982] KR1#,TR1# |
61202-95700 |
— | ||
|
61205
|
61205
61207-95700
Rail Sub-Assy, Roof Side, Inner Rear Rh
[10.1976 - 10.1982] KR1#,TR10,11..V5D |
61207-95700 |
— | ||
|
61206
|
61206
61208-87001
Rail Sub-Assy, Roof Side, Inner Rear Lh
[01.1981 - 10.1982] KR12,TR11 |
61208-87001 |
— | ||
|
61211
|
61211
61201-87001
Rail, Roof Side, Outer Rh
[10.1976 - 10.1982] KR1#,TR10,11..V5D..SRF |
61201-87001 |
— | ||
|
61212
|
61212
61202-87005
Rail, Roof Side, Outer Lh
[01.1981 - 10.1982] KR12,TR1#..SRF |
61202-87005 |
— | ||
|
61223
|
61223
61261-87001
Channel, Roof Drip, Front Rh
[10.1976 - 10.1982] KR1#,TR1# |
61261-87001 |
— | ||
|
61224
|
61224
61262-87001
Channel, Roof Drip, Front Lh
[10.1976 - 10.1982] KR1#,TR1# |
61262-87001 |
— | ||
|
61301
|
61301
61301-87001
Pillar Sub-Assy, Center Body, Rh
[10.1976 - 10.1982] KR1#,TR10,11..V5D |
61301-87001 |
— | ||
|
61302
|
61302
61302-87001
Pillar Sub-Assy, Center Body, Lh
[10.1976 - 10.1982] KR1#,TR1# |
61302-87001 |
— | ||
|
61307
|
61307
61307-87005 Pillar Sub-Assy, Center Body, Inner Rh[01.1981 - 10.1982] KR12..V5D; TR11..V5D..DLX |
61307-87005 |
US $196.56 |
||
| replacement | |||||
|
61307
|
61307
61307-87006
Pillar Sub-Assy, Center Body, Inner Rh
[01.1981 - 10.1982] KR12..V5D; TR11..V5D..DLX |
61307-87006 |
— | ||
|
61307
|
61307
61307-87006
Pillar Sub-Assy, Center Body, Inner Rh
[01.1981 - 10.1982] KR12..V5D W/*ELR; TR11..V5D..DLX W/*ELR |
61307-87006 |
— | ||
|
61308
|
61308
61308-87007
Pillar Sub-Assy, Center Body, Inner Lh
[01.1981 - 01.1982] KR12; TR11..DLX |
61308-87007 |
— | ||
|
61308
|
61308
61308-87008
Pillar Sub-Assy, Center Body, Inner Lh
[01.1981 - 01.1982] KR12 W/*ELR; TR11..DLX W/*ELR |
61308-87008 |
— | ||
|
61315
|
61315
61315-95700
Retainer, Door Lock Striker Plate
[10.1976 - 10.1982] KR1#,RR1#,2#,TR1# |
61315-95700 |
— | ||
|
61333
|
61333
57328-87002
Plate, Center Pillar, Rh
[10.1976 - 10.1982] TR10,11..V5D |
57328-87002 |
— | ||
|
61334
|
61334
57422-87001
Plate, Center Pillar, Lh
[01.1981 - 10.1982] KR12,TR1# |
57422-87001 |
— | ||
|
61413
|
61413
57139-87002
Panel, Rocker, Center Rh
[10.1976 - 10.1982] KR1#,TR10,11..V5D |
57139-87002 |
— | ||
|
61414
|
61414
57149-87001
Panel, Rocker, Center Lh
[10.1976 - 10.1982] KR1#,TR1# |
57149-87001 |
— | ||
|
61415
|
61415
57143-87002
Panel, Rocker, Rear Rh
[01.1981 - 10.1982] KR12,TR1# |
57143-87002 |
— | ||
|
61416
|
61416
57144-87002
Panel, Rocker, Rear Lh
[01.1981 - 10.1982] KR12,TR1# |
57144-87002 |
— | ||
|
61611
|
61611
61611-87004
Panel, Quarter, Rh
[08.1978 - 10.1982] KR1#,TR10,11..V5D |
61611-87004 |
— | ||
|
61612
|
61612
61612-87002
Panel, Quarter, Lh
[08.1978 - 10.1982] KR1#,TR1# |
61612-87002 |
— | ||
|
61613A
|
61613A
61625-87001
Extension, Quarter Panel Rear, Rh
[10.1976 - 10.1982] KR1#,TR1# |
61625-87001 |
— | ||
|
61614A
|
61614A
61626-87001
Extension, Quarter Panel, Rear Lh
[10.1976 - 10.1982] KR1#,TR1# |
61626-87001 |
— | ||
|
61615A
|
61615A
61621-87001
Trough, Back Door Opening, Rh
[10.1976 - 10.1982] KR1#,TR1# |
61621-87001 |
— | ||
|
61616A
|
61616A
61622-87001
Trough, Back Door Opening, Lh
[10.1976 - 10.1982] KR1#,TR1# |
61622-87001 |
— | ||
|
61631
|
61631
61603-87001
Panel, Quarter Wheel House, Rh
[10.1976 - 10.1982] KR1#,TR10,11 |
61603-87001 |
— | ||
|
61632
|
61632
61604-87001
Panel, Quarter Wheel House, Lh
[10.1976 - 10.1982] KR1#,TR10,11 |
61604-87001 |
— | ||
|
61633
|
61633
61641-95700
Extension, Wheel House, Rh
[10.1976 - 10.1982] KR1#,TR1# FR |
61641-95700 |
— | ||
|
61633
|
61633
61643-95700
Extension, Wheel House, Rh
[10.1976 - 10.1982] KR1#,TR1# RR |
61643-95700 |
— | ||
|
61634
|
61634
61642-95700
Extension, Wheel House, Lh
[10.1976 - 10.1982] KR1#,TR1# FR |
61642-95700 |
— | ||
|
61634
|
61634
61644-95700
Extension, Wheel House, Lh
[10.1976 - 10.1982] KR1#,TR1# RR |
61644-95700 |
— | ||
|
61693
|
61693
67849-87001
Cover, Center Body Pillar Inner
[01.1981 - 01.1982] KR12,TR11..V5D |
67849-87001 |
— | ||
|
61693A
|
61693A
62492-87001
Packing, Center Pillar Service Hole Cover
[01.1981 - 01.1982] KR12,TR11..V5D |
62492-87001 |
— | ||
|
61695
|
61695
67843-87001
Cover, Quarter Inner, No.2
[10.1976 - 10.1982] KR1#,TR1# RH |
67843-87001 |
— | ||
|
61695
|
61695
67844-87001
Cover, Quarter Inner, No.2
[10.1976 - 10.1982] KR1#,TR1# LH |
67844-87001 |
— | ||
|
61695B
|
61695B
62492-87001
Packing, Center Pillar Service Hole Cover
[02.1978 - 10.1982] KR1#,TR1# |
62492-87001 |
— | ||
|
61697
|
61697
67847-87001
Cover, Quarter Inner, No.4
[10.1976 - 10.1982] KR1#,TR1# RH |
67847-87001 |
— | ||
|
61697
|
61697
67848-87001
Cover, Quarter Inner, No.4
[10.1976 - 10.1982] KR1#,TR1# LH |
67848-87001 |
— | ||
|
61697A
|
61697A
62497-87001
Packing, Quarter Inner Cover, No.4
[11.1976 - 10.1982] KR1#,TR1# |
62497-87001 |
— | ||
|
61707
|
61707
61015-87073
Panel Sub-Assy, Quarter, Inner Rh
[01.1981 - 10.1982] TR11..V5D..SRF..DLX; KR12..V5D..SRF W/RR WIPER |
61015-87073 |
— | ||
|
61707F
|
61707F
67857-87001
Film, Quarter Service Hole
[01.1981 - 10.1982] TR15..CTM,DLX,STD COLD SPEC; KR12,TR11..DLX,HDX COLD SPEC |
67857-87001 |
— | ||
|
61708
|
61708
61704-87002
Panel Sub-Assy, Quarter, Inner Lh
[01.1981 - 10.1981] TR11..SRF..DLX; KR12..SRF..(DLX,HDX) W/RR WIPER |
61704-87002 |
— | ||
|
61708
|
61708
61704-87005
Panel Sub-Assy, Quarter, Inner Lh
[01.1981 - 10.1981] TR11..SRF W/RR WIPER |
61704-87005 |
— | ||
|
61708
|
61708
61704-87018
Panel Sub-Assy, Quarter, Inner Lh
[10.1981 - 10.1982] TR11..02S; KR12..SRF..03S..DLX W/RR WIPER |
61704-87018 |
— | ||
|
61725
|
61725
61709-87001
Box, Fuel Inlet
[10.1976 - 10.1982] KR1#,TR1# |
61709-87001 |
— | ||
|
61733
|
61733
61627-87001
Gusset, Quarter, Inner Rh
[10.1976 - 10.1982] KR1#,TR1# |
61627-87001 |
— | ||
|
61734
|
61734
61628-87001
Gusset, Quarter, Inner Lh
[10.1976 - 10.1982] KR1#,TR1# |
61628-87001 |
— | ||
|
61781
|
61781
61781-87001
Bracket, Fuel Vapour Liquid Separator
[10.1976 - 10.1982] KR1#,TR1# LWR |
61781-87001 |
— | ||
|
61781
|
61781
61782-87001
Bracket, Fuel Vapour Liquid Separator
[10.1976 - 10.1982] KR1#,TR1# UPR |
61782-87001 |
— | ||
|
61825
|
61825
61426-87004
Plate, Quarter Inner Panel, Lower Front Rh
[01.1981 - 10.1982] KR12,TR11..V5D |
61426-87004 |
— | ||
|
61826
|
61826
61427-87002
Plate, Quarter Inner Panel, Lower Front Lh
[01.1981 - 10.1982] KR12,TR1# |
61427-87002 |
— | ||
|
9095001028
|
9095001028
90950-01028 New Genuine Part |
90950-01028 |
US $3.35 |
||
|
9331516012
|
9331516012
93315-16012 New Genuine Part |
93315-16012 |
US $2.77 |
||
|
9354015012
|
9354015012
93540-15012
New Genuine Part
|
93540-15012 |
— | ||
|
9354016012
|
9354016012
93540-16012
New Genuine Part
|
93540-16012 |
— | ||
| replacement | |||||
|
9354016012
|
9354016012
93540-56012 New Genuine Part |
93540-56012 |
US $0.44 |
||
|
9361025010
|
9361025010
93610-25010
New Genuine Part
|
93610-25010 |
— | ||
|
9361025012
|
9361025012
93610-25012
New Genuine Part
|
93610-25012 |
— | ||
