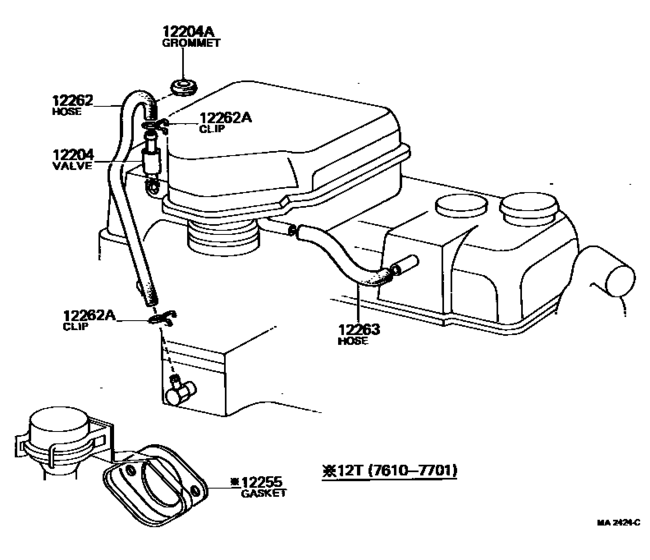

Ventilation Hose ([10.1976 - ] (7610- )12T,13TU,2TJ) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- TR11V
- body
- V
- Roof
- SRF
- ENGINE
- 2TJ
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 08.1981
- To
- 10.1982
- Grade
- DLX
- Gear Shift Type
- 4H
- No.of Doors
- V5D
- Seating Capacity
- 02S
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-28010 Valve Sub-Assy, Ventilation[08.1980 - 10.1982] 13TU,2TJ..TR1# |
12204-28010 |
US $57.66 |
||
|
12204A
|
12204A
90480-18180 Grommet(For Ventilation System)[10.1976 - 10.1982] 12RJ..RR1#,2#; 12T,13TU,2TJ..TR1# |
90480-18180 |
from US $2.69 |
||
|
12262
|
12262
12261-25012
Hose, Ventilation, No.2
[10.1979 - 10.1982] 13TU,2TJ..TR1# |
12261-25012 |
— | ||
|
12262A
|
12262A
90467-16010 Clip Or Clamp(For Ventilation Hose)[02.1978 - 10.1982] 12T,13TU,2TJ..TR1# |
90467-16010 |
US $4.48 |
||
|
12263
|
12263
12262-26011 Hose, Ventilation, No.3[10.1979 - 10.1982] 13TU,2TJ..TR1# |
12262-26011 |
US $11.94 |
