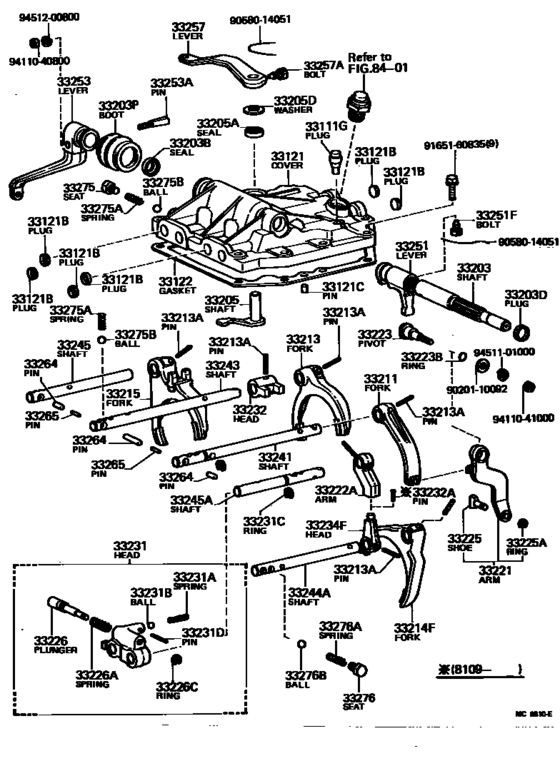

Gear Shift Fork & Lever Shaft (Mtm) ([01.1981 - ] (8101- )5F) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- TR11V
- body
- V
- Roof
- SRF
- ENGINE
- 2TJ
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 01.1981
- To
- 10.1982
- Grade
- HDX
- Gear Shift Type
- 5F
- No.of Doors
- V5D
- Seating Capacity
- 05S
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33111G
|
33111G
90930-03065 Plug, Breather(For Manual Transmission)[01.1981 - 10.1982] TR1#..5F |
90930-03065 |
US $8.01 |
||
|
33121
|
33121
33121-35060 Cover, Manual Transmission Case[01.1981 - 10.1982] TR11..5F |
33121-35060 |
US $362.54 |
||
| replacements | |||||
|
33121
|
33121
33121-28010
Cover, Manual Transmission Case
[01.1981 - 10.1982] TR11..5F |
33121-28010 |
— | ||
|
33121
|
33121
90341-18049 Plug(For Oil Heater Houl)[01.1981 - 10.1982] TR11..5F |
90341-18049 |
from US $3.71 |
||
|
33121
|
33121
90430-18008 Gasket[01.1981 - 10.1982] TR11..5F |
90430-18008 |
US $1.97 |
||
|
33121B
|
33121B
90331-14003 Plug(For Transmission Case)[01.1981 - 10.1982] TR1#..5F |
90331-14003 |
US $7.72 |
||
| replacement | |||||
|
33121B
|
33121B
90331-14004 Plug, Manual Transmission Case[01.1981 - 10.1982] TR1#..5F |
90331-14004 |
US $4.68 |
||
|
33121C
|
33121C
90250-10214 Pin, Straight(For End Plate)[01.1981 - 10.1982] TR1#..5F 長さ＝１４，外径＝１０ |
90250-10214 |
from US $1.38 |
||
|
33122
|
33122
33122-35020 Gasket, Manual Transmission Case Cover[01.1981 - 10.1982] TR1#..5F |
33122-35020 |
US $5.24 |
||
|
33203
|
33203
33261-26030 Shaft Sub-Assy, Shift Lever, No.1[05.1981 - 10.1982] TR1#..5F |
33261-26030 |
US $55.18 |
||
|
33203
|
33203
33261-26031
Shaft Sub-Assy, Shift Lever, No.1
[01.1981 - 05.1981] TR1#..5F |
33261-26031 |
— | ||
|
33203B
|
33203B
90312-20016
Seal, Oil(For Shift Lever Shaft)
[01.1981 - 10.1982] TR1#..5F |
90312-20016 |
— | ||
|
33203D
|
33203D
90331-24002 Plug, Tight(For Shift Lever Shaft)[01.1981 - 10.1982] TR1#..5F |
90331-24002 |
US $7.57 |
||
|
33203P
|
33203P
33531-26010 Boot, Dust(For Shift Lever Shaft)[01.1981 - 10.1982] TR1#..5F |
33531-26010 |
US $12.38 |
||
|
33205
|
33205
33262-35031 Shaft Sub-Assy, Select Lever[01.1981 - 10.1982] TR1#..5F |
33262-35031 |
US $20.68 |
||
|
33205A
|
33205A
90313-13001 Seal, Oil(For Shift Lever Shaft)[10.1976 - 10.1982] KR1#,RR1#,2#,TR1#..MTM |
90313-13001 |
from US $2.87 |
||
|
33205D
|
33205D
94612-11300 Washer(For Outer Lever Oil Setting)[10.1976 - 10.1982] KR1#,RR1#,2#,TR1#..MTM |
94612-11300 |
from US $0.70 |
||
|
33211
|
33211
33211-35020 Fork, Reverse Shift[01.1981 - 10.1982] TR1#..5F |
33211-35020 |
US $39.46 |
||
|
33213
|
33213
33212-35010 Fork, 1St & 2Nd Shift[01.1981 - 10.1982] TR1#..5F |
33212-35010 |
US $64.50 |
||
|
33213A
|
33213A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[10.1976 - 10.1982] KR1#,RR1#,2#,TR1#..MTM L=22.0 |
90254-05001 |
from US $0.98 |
||
|
33213A
|
33213A
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[09.1981 - 10.1982] TR1#..5F L=25.5 |
90254-05016 |
from US $1.95 |
||
|
33214F
|
33214F
33214-35011 Fork, 5Th Shift[01.1981 - 10.1982] TR1#..5F |
33214-35011 |
US $67.70 |
||
|
33215
|
33215
33213-35020 Fork, 3Rd & 4Th Shift[01.1981 - 10.1982] TR1#..5F |
33213-35020 |
US $90.27 |
||
|
33221
|
33221
33201-35020 Arm, Reverse Shift[01.1981 - 10.1982] TR1#..5F |
33201-35020 |
US $96.10 |
||
|
33222A
|
33222A
33233-28010 Arm, 5Th Shift[02.1981 - 09.1981] TR1#..5F |
33233-28010 |
US $43.83 |
||
| replacement | |||||
|
33222A
|
33222A
33233-28011 Arm, 5Th Shift[02.1981 - 09.1981] TR1#..5F |
33233-28011 |
US $50.67 |
||
|
33222A
|
33222A
33233-28011 Arm, 5Th Shift[09.1981 - 10.1982] TR1#..5F |
33233-28011 |
US $50.67 |
||
|
33222A
|
33222A
33233-35020 Arm, 5Th Shift[01.1981 - 02.1981] TR11..5F |
33233-35020 |
US $43.68 |
||
| replacement | |||||
|
33222A
|
33222A
33233-28011 Arm, 5Th Shift[01.1981 - 02.1981] TR11..5F |
33233-28011 |
US $50.67 |
||
|
33223
|
33223
33223-35020 Pivot, Shift Arm[01.1981 - 10.1982] TR1#..5F |
33223-35020 |
US $16.16 |
||
|
33223B
|
33223B
96710-01010
Ring, O(For Oil Pump)
[01.1981 - 10.1981] TR1#..5F |
96710-01010 |
— | ||
| replacement | |||||
|
33223B
|
33223B
96711-19010 Ring, O(For Oil Level Gage Guide)[01.1981 - 10.1981] TR1#..5F |
96711-19010 |
from US $2.26 |
||
|
33223B
|
33223B
96711-19010 Ring, O(For Oil Level Gage Guide)[10.1981 - 10.1982] TR1#..5F |
96711-19010 |
from US $2.26 |
||
|
33225
|
33225
33225-35020 Shoe, Shift Arm[01.1981 - 10.1982] TR1#..5F |
33225-35020 |
US $18.05 |
||
|
33225A
|
33225A
90520-08098
Ring, Shaft Snap(For Shift Arm Shoe)
[01.1981 - 10.1982] TR1#..5F |
90520-08098 |
— | ||
|
33226
|
33226
33226-35011
Plunger, Reverse Shift Return
[01.1981 - 10.1982] TR1#..5F |
33226-35011 |
— | ||
|
33226A
|
33226A
90501-14046 Spring, Compression(For Reverse Shift Return Plunger)[01.1981 - 10.1982] TR1#..5F |
90501-14046 |
US $2.18 |
||
|
33226C
|
33226C
90520-06001 Ring, Shaft Snap(For Reverse Shift Return Plunger)[01.1981 - 10.1982] TR1#..5F |
90520-06001 |
US $2.48 |
||
|
33231
|
33231
33202-26011 Head, Reverse Shift[01.1981 - 10.1982] TR1#..5F |
33202-26011 |
US $93.18 |
||
|
33231A
|
33231A
90501-10046 Spring, Reverse Shift Restrict[07.1981 - 10.1982] TR1#..5F |
90501-10046 |
US $2.48 |
||
|
33231A
|
33231A
90501-12046 Spring, Reverse Shift Restrict[01.1981 - 07.1981] TR1#..5F |
90501-12046 |
US $2.04 |
||
| replacement | |||||
|
33231A
|
33231A
90501-10046 Spring, Reverse Shift Restrict[01.1981 - 07.1981] TR1#..5F |
90501-10046 |
US $2.48 |
||
|
33231B
|
33231B
90360-06004 Ball, Detent(For Gear Shift Head No.4)[01.1981 - 10.1982] TR1#..5F |
90360-06004 |
from US $0.84 |
||
| replacement | |||||
|
33231B
|
33231B
90080-36191
Ball, Check Valve
[01.1981 - 10.1982] TR1#..5F |
90080-36191 |
— | ||
|
33231C
|
33231C
96160-01200 Ring, E(For Clutch Release Cable)[01.1981 - 10.1982] TR1#..5F |
96160-01200 |
from US $1.54 |
||
|
33231D
|
33231D
90254-03006 Pin(For Reverse Shift Head)[01.1981 - 10.1982] TR1#..5F |
90254-03006 |
US $1.16 |
||
|
33232
|
33232
33232-35010
Head, 1St & 2Nd Shift
[01.1981 - 10.1982] TR1#..5F |
33232-35010 |
— | ||
|
33232A
|
33232A
90254-03005
Pin (For Oil Pump Drive Shaft Cap)
[09.1981 - 10.1982] TR1#..5F |
90254-03005 |
— | ||
|
33234F
|
33234F
33234-35010 Head, Reverse & 5Th Shift[01.1981 - 10.1982] TR1#..5F |
33234-35010 |
US $37.42 |
||
|
33241
|
33241
33245-35020 Shaft, Reverse Shift Fork[01.1981 - 10.1982] TR1#..5F |
33245-35020 |
US $35.24 |
||
|
33243
|
33243
33242-35010 Shaft, 1St & 2Nd Shift Fork[01.1981 - 10.1982] TR1#..5F |
33242-35010 |
US $31.74 |
||
|
33244A
|
33244A
33246-35010 Shaft, 5Th Shift Fork[01.1981 - 10.1982] TR1#..5F |
33246-35010 |
US $24.46 |
||
|
33245
|
33245
33243-28010 Shaft, 3Rd & 4Th Shift Fork[02.1981 - 10.1982] TR1#..5F |
33243-28010 |
US $41.79 |
||
|
33245
|
33245
33243-35030 Shaft, 3Rd & 4Th Shift Fork[01.1981 - 02.1981] TR11..5F |
33243-35030 |
US $35.82 |
||
| replacement | |||||
|
33245
|
33245
33243-28010 Shaft, 3Rd & 4Th Shift Fork[01.1981 - 02.1981] TR11..5F |
33243-28010 |
US $41.79 |
||
|
33245A
|
33245A
33244-35010 Shaft, 5Th Shift Arm[01.1981 - 10.1982] TR1#..5F |
33244-35010 |
US $30.14 |
||
|
33251
|
33251
33251-26030 Lever, Shift & Select[01.1981 - 10.1982] TR1#..5F |
33251-26030 |
US $47.47 |
||
|
33251F
|
33251F
33218-35010 Bolt, Shift Lever Lock[01.1981 - 10.1982] TR1#..5F |
33218-35010 |
US $4.72 |
||
|
33253
|
33253
33253-28020
Lever, Shift Outer, No.1
[01.1981 - 10.1982] TR1#..5F |
33253-28020 |
— | ||
|
33253A
|
33253A
33282-57010 Pin, Lever Lock (For Shift Outer Lever)[01.1981 - 10.1982] TR1#..5F |
33282-57010 |
from US $4.97 |
||
|
33257
|
33257
33257-28020
Lever, Select Outer
[01.1981 - 10.1982] TR1#..5F |
33257-28020 |
— | ||
|
33257A
|
33257A
33218-35010 Bolt, Shift Lever Lock[01.1981 - 10.1982] TR1#..5F |
33218-35010 |
US $4.72 |
||
|
33264
|
33264
90361-10001 Pin, Or Ball, Shift Inter Lock, No.1[01.1981 - 10.1982] TR1#..5F L=39.2 |
90361-10001 |
US $5.82 |
||
|
33264
|
33264
90361-10008 Pin, Or Ball, Shift Inter Lock, No.1[01.1981 - 10.1982] TR1#..5F L=14.9 |
90361-10008 |
US $2.77 |
||
|
33265
|
33265
90250-05010 Pin, Shift Inter Lock, No.2[01.1981 - 10.1982] TR1#..5F |
90250-05010 |
US $2.77 |
||
|
33275
|
33275
90341-12003 Seat, Shift Detent Ball Spring, No.1[01.1981 - 10.1982] TR1#..5F |
90341-12003 |
US $3.64 |
||
|
33275A
|
33275A
90501-13006 Spring, Compression (For Shift Detent Ball Low Side)[02.1981 - 10.1982] TR1#..5F |
90501-13006 |
US $2.77 |
||
|
33275A
|
33275A
90501-14047 Spring, Compression (For Shift Detent Ball Low Side)[01.1981 - 02.1981] TR1#..5F |
90501-14047 |
US $2.33 |
||
| replacement | |||||
|
33275A
|
33275A
90501-13006 Spring, Compression (For Shift Detent Ball Low Side)[01.1981 - 02.1981] TR1#..5F |
90501-13006 |
US $2.77 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[10.1976 - 10.1982] KR1#,RR1#,2#,TR1#..MTM |
90360-10003 |
from US $1.19 |
||
|
33276
|
33276
90341-12003 Seat, Shift Detent Ball Spring, No.1[01.1981 - 10.1982] TR1#..5F |
90341-12003 |
US $3.64 |
||
|
33276A
|
33276A
90501-13006 Spring, Compression (For Shift Detent Ball Low Side)[02.1981 - 10.1982] TR1#..5F |
90501-13006 |
US $2.77 |
||
|
33276A
|
33276A
90501-14047 Spring, Compression (For Shift Detent Ball Low Side)[01.1981 - 02.1981] TR1#..5F |
90501-14047 |
US $2.33 |
||
| replacement | |||||
|
33276A
|
33276A
90501-13006 Spring, Compression (For Shift Detent Ball Low Side)[01.1981 - 02.1981] TR1#..5F |
90501-13006 |
US $2.77 |
||
|
33276B
|
33276B
90360-10003 Ball(For Transmission Oil Pump Cover)[01.1981 - 10.1982] TR1#..5F |
90360-10003 |
from US $1.19 |
||
|
9020110092
|
9020110092
90201-10092 Washer, Plate(For Cylinder Head Set) |
90201-10092 |
US $1.97 |
||
|
9058014051
|
9058014051
90580-14051 Wire (For Shift & Select Lever) |
90580-14051 |
US $1.75 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.52 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
