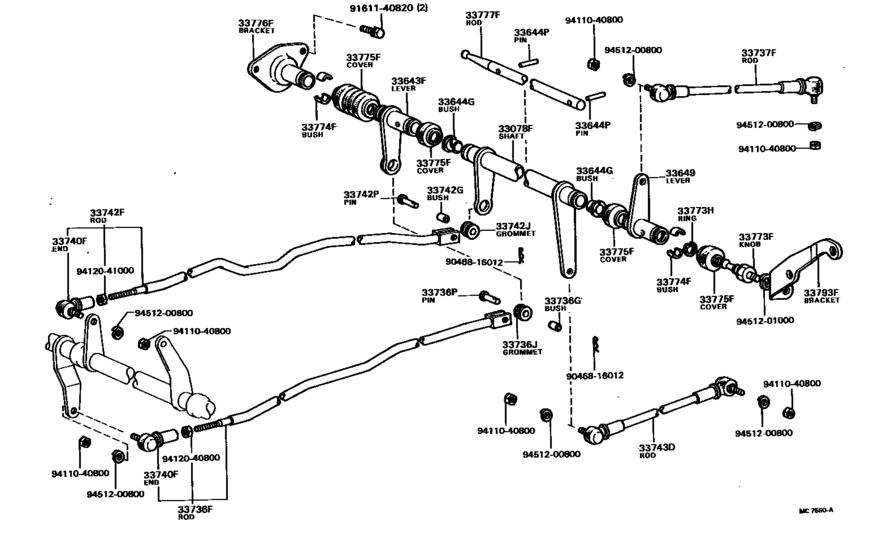

Shift Lever & Retainer ([01.1981 - ] (8101- )5F) Diagram Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- TR11V
- body
- V
- Roof
- SRF
- ENGINE
- 2TJ
- TRANSMISSION
- MTM
- Model
- TOWN ACE/MASTER ACE
- From
- 01.1981
- To
- 10.1982
- Grade
- HDX
- Gear Shift Type
- 5F
- No.of Doors
- V5D
- Seating Capacity
- 05S
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33078F
|
33078F
33078-28010
Shaft Sub-Assy, Cross, No.2(For Floor Shift)
[01.1981 - 10.1982] TR1#..5F |
33078-28010 |
— | ||
|
33643F
|
33643F
33643-28011
Lever, Gear Selecting, No.3
[01.1981 - 10.1982] TR1#..5F |
33643-28011 |
— | ||
|
33644G
|
33644G
90386-13007 Bush(For Clutch Pedal)[01.1981 - 10.1982] TR1#..5F |
90386-13007 |
from US $2.48 |
||
|
33644P
|
33644P
90256-06001 Pin (For Gear Selecting Shaft)[01.1981 - 10.1982] TR1#..5F |
90256-06001 |
US $4.95 |
||
|
33649
|
33649
33649-28010
Lever, Gear Selecting, No.4
[01.1981 - 10.1982] TR1#..5F |
33649-28010 |
— | ||
|
33736F
|
33736F
33075-28011
Rod, Gear Selecting, No.2(For Floor Shift)
[01.1981 - 10.1982] TR1#..5F |
33075-28011 |
— | ||
|
33736G
|
33736G
90389-08005 Bushing(For Gear Selecting Rod)[01.1981 - 10.1982] TR1#..5F |
90389-08005 |
from US $1.77 |
||
|
33736J
|
33736J
90480-17177 Grommet (For Transmission Control Rod)[01.1981 - 10.1982] TR1#..5F |
90480-17177 |
from US $2.07 |
||
|
33736P
|
33736P
90240-08034 Pin, W/hole (For Gear Shifting Rod No.3)[01.1981 - 10.1982] TR1#..5F |
90240-08034 |
from US $1.52 |
||
|
33737F
|
33737F
33850-28010 Rod, Gear Selecting, No.3 (For Floor Shift)[01.1981 - 10.1982] TR1#..5F |
33850-28010 |
US $47.03 |
||
| replacement | |||||
|
33737F
|
33737F
33710-25H96 Rod, Gear Shifting, No.1 (For Floor Shift)[01.1981 - 10.1982] TR1#..5F |
33710-25H96 |
US $35.38 |
||
|
33740F
|
33740F
33740-35011
End Assy, Connecting Rod, No.1(For Column Shift)
[01.1981 - 10.1982] TR1#..5F SHIFTING NO.1,SELECTING NO.2 |
33740-35011 |
— | ||
| replacement | |||||
|
33740F
|
33740F
33740-26010 End Assy, Connecting Rod, No.1(For Column Shift)[01.1981 - 10.1982] TR1#..5F SHIFTING NO.1,SELECTING NO.2 |
33740-26010 |
from US $13.40 |
||
|
33740F
|
33740F
33740-36010 End Assy, Connecting Rod, No.1(For Column Shift)CONNECTING ROD, NO.1(FOR COLUMN SHIFT) [01.1981 - 10.1982] TR1#..5F SHIFTING NO.2 |
33740-36010 |
US $19.22 |
||
| replacement | |||||
|
33740F
|
33740F
33740-36050 End Assy, Connecting Rod, No.1(For Column Shift)[01.1981 - 10.1982] TR1#..5F SHIFTING NO.2 |
33740-36050 |
from US $11.42 |
||
|
33742F
|
33742F
33730-28051
Rod, Gear Shifting, No.2(For Floor Shift)
[01.1981 - 10.1982] TR1#..5F |
33730-28051 |
— | ||
|
33742G
|
33742G
90389-08005 Bushing(For Gear Selecting Rod)[01.1981 - 10.1982] TR1#..5F |
90389-08005 |
from US $1.77 |
||
|
33742J
|
33742J
90480-17177 Grommet (For Transmission Control Rod)[01.1981 - 10.1982] TR1#..5F |
90480-17177 |
from US $2.07 |
||
|
33742P
|
33742P
90240-08034 Pin, W/hole (For Gear Shifting Rod No.3)[01.1981 - 10.1982] TR1#..5F |
90240-08034 |
from US $1.52 |
||
|
33743D
|
33743D
33840-28040 Rod, Gear Shifting, No.3 (For Floor Shift)[01.1981 - 10.1982] TR1#..5F |
33840-28040 |
US $46.88 |
||
| replacement | |||||
|
33743D
|
33743D
33710-25H93 Rod, Gear Shifting, No.1 (For Floor Shift)[01.1981 - 10.1982] TR1#..5F |
33710-25H93 |
US $32.61 |
||
|
33773F
|
33773F
33773-36030
Support, Cross Shaft, No.1 (For Colum Shift)
[01.1981 - 10.1982] TR1#..5F |
33773-36030 |
— | ||
|
33773H
|
33773H
96151-01600
Ring, Snap
[01.1981 - 10.1982] TR1#..5F |
96151-01600 |
— | ||
|
33774F
|
33774F
33772-20010 Bush (For Control Rod Support)[01.1981 - 10.1982] TR1#..5F |
33772-20010 |
from US $4.43 |
||
|
33775F
|
33775F
33775-28030 Cover, Cross Shaft Dust (For Column Shift)[01.1981 - 10.1982] TR1#..5F RH |
33775-28030 |
US $6.46 |
||
|
33775F
|
33775F
33775-28040 Cover, Cross Shaft Dust (For Column Shift)[01.1981 - 10.1982] TR1#..5F LH |
33775-28040 |
from US $9.61 |
||
|
33775F
|
33775F
33789-36010
Cover, Cross Shaft Dust, No.1 (For Floor Shift)
[01.1981 - 10.1982] TR1#..5F CTR |
33789-36010 |
— | ||
| replacement | |||||
|
33775F
|
33775F
33789-36020 Cover, Cross Shaft Dust(For Column Shift)[01.1981 - 10.1982] TR1#..5F CTR |
33789-36020 |
US $6.46 |
||
|
33776F
|
33776F
33776-28020
Bracket, Cross Shaft, No.1 (For Floor Shift)
[01.1981 - 10.1982] TR1#..5F |
33776-28020 |
— | ||
|
33777F
|
33777F
33777-28010
Rod, Gear Shift(For Floor Shift)
[01.1981 - 10.1982] TR1#..5F |
33777-28010 |
— | ||
|
33793F
|
33793F
33793-28030
Bracket, Cross Shaft, No.2(For Floor Shift)
[01.1981 - 10.1982] TR1#..5F |
33793-28030 |
— | ||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.90 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.80 |
||
