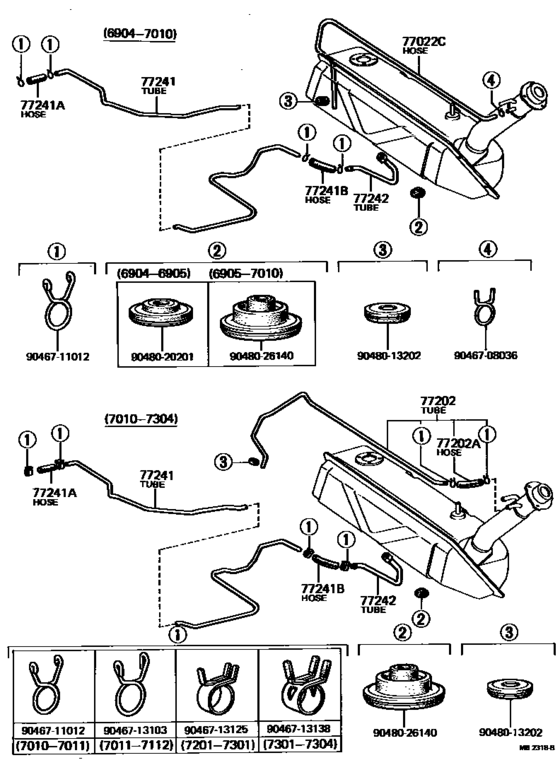

Fuel Tank & Tube ([04.1969 - 04.1973] (6904-7304)KP30) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- Europe
- Frame
- KP30
- body
- SED
- ENGINE
- 2K
- From
- 04.1969
- To
- 02.1978
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77022C
|
77022C
90446-09177
Hose Or Tube(For Fuel Evaporative Separator)
[04.1969 - 10.1970] KP30 L=1850 |
90446-09177 |
— | ||
| replacement | |||||
|
77022C
|
77022C
77202-10010
Tube Sub-Assy, Breather
[04.1969 - 10.1970] KP30 L=1850 |
77202-10010 |
— | ||
|
77202
|
77202
77202-10010
Tube Sub-Assy, Breather
[10.1970 - 12.1971] KP30 |
77202-10010 |
— | ||
|
77202
|
77202
77202-10011
Tube Sub-Assy, Breather
[01.1972 - 01.1976] KP30 |
77202-10011 |
— | ||
|
77202
|
77202
77224-10022
Tube Sub-Assy, Breather
[01.1976 - 02.1978] KP30 |
77224-10022 |
— | ||
|
77202A
|
77202A
90445-12433
Hose, Fuel, No.1 (For Breather Tube)
[10.1970 - 11.1970] KP30 L=115 |
90445-12433 |
— | ||
|
77202A
|
77202A
90445-12670
Hose, Fuel, No.1 (For Breather Tube)
[11.1970 - 12.1971] KP30 L=115 |
90445-12670 |
— | ||
|
77202A
|
77202A
95331-06006 Hose, Fuel Pipe, No.1FUEL, NO.3(FOR FUEL EXPANSION TANK) [01.1976 - 02.1978] KP30 *H,L=60,L=60 |
95331-06006 |
US $1.46 |
||
| replacement | |||||
|
77202A
|
77202A
95333-06010 Hose, Fuel[01.1976 - 02.1978] KP30 *H,L=60,L=60 |
95333-06010 |
US $5.38 |
||
|
77202A
|
77202A
95331-08012 Hose, Fuel, No.3(For Fuel Tank)FUEL, NO.2 (FOR MAIN TUBE, NO.1) [01.1972 - 01.1976] KP30 *H,L=120,L=120 |
95331-08012 |
US $3.20 |
||
| replacement | |||||
|
77202A
|
77202A
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [01.1972 - 01.1976] KP30 *H,L=120,L=120 |
95337-08020 |
from US $5.56 |
||
|
77241
|
77241
77241-10020 Tube, Fuel Main, No.1FUEL MAIN, NO.1 [04.1969 - 05.1969] KP30 |
77241-10020 |
US $38.44 |
||
| replacements | |||||
|
77241
|
77241
77209-10012
Tube, Fuel Main, No.2
[04.1969 - 05.1969] KP30 |
77209-10012 |
— | ||
|
77241
|
77241
77209-10011
Tube, Fuel Main, No.2
[04.1969 - 05.1969] KP30 |
77209-10011 |
— | ||
|
77241
|
77241
77241-10022
Tube, Fuel Main, No.1
[04.1969 - 05.1969] KP30 |
77241-10022 |
— | ||
|
77241
|
77241
77241-10021
Tube, Fuel Main, No.1
[05.1969 - 08.1969] KP30 |
77241-10021 |
— | ||
| replacements | |||||
|
77241
|
77241
77209-10012
Tube, Fuel Main, No.2
[05.1969 - 08.1969] KP30 |
77209-10012 |
— | ||
|
77241
|
77241
77241-10022
Tube, Fuel Main, No.1
[05.1969 - 08.1969] KP30 |
77241-10022 |
— | ||
|
77241
|
77241
77241-10022
Tube, Fuel Main, No.1
[08.1969 - 04.1970] KP30 |
77241-10022 |
— | ||
|
77241
|
77241
77241-10023
Tube, Fuel Main, No.1
[04.1970 - 10.1971] KP30 |
77241-10023 |
— | ||
|
77241
|
77241
77241-10024
Tube, Fuel Main, No.1
[10.1971 - 04.1973] KP30 |
77241-10024 |
— | ||
|
77241
|
77241
77241-10025
Tube, Fuel Main, No.1
[04.1973 - 10.1973] KP30 |
77241-10025 |
— | ||
|
77241
|
77241
77241-10026
Tube, Fuel Main, No.1
[10.1973 - 06.1975] KP30 |
77241-10026 |
— | ||
|
77241
|
77241
77251-10030
Tube, Fuel Main, No.1
[11.1975 - 02.1978] KP30 |
77251-10030 |
— | ||
|
77241A
|
77241A
90445-12414 Hose, Fuel, No.1 (For Main Tube, No.1)FUEL, NO.1 (FOR MAIN TUBE, NO.1) [04.1969 - 11.1970] KP3# L=80 |
90445-12414 |
US $2.91 |
||
| replacement | |||||
|
77241A
|
77241A
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[04.1969 - 11.1970] KP3# L=80 |
95333-08010 |
— | ||
|
77241A
|
77241A
90445-12695 Hose, Fuel, No.1 (For Main Tube, No.1)FUEL, NO.1 (FOR MAIN TUBE, NO.1) [11.1970 - 12.1971] KP3# L=80 |
90445-12695 |
US $2.91 |
||
| replacement | |||||
|
77241A
|
77241A
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1970 - 12.1971] KP3# L=80 |
95333-08010 |
— | ||
|
77241A
|
77241A
95331-06007
Hose, Fuel Pipe, No.1
[04.1973 - 11.1975] KP3# *H,L=70,L=70 |
95331-06007 |
— | ||
|
77241A
|
77241A
95331-06008 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.3 (FOR BREATHER TUBE) [11.1975 - 02.1976] KP3# *H,L=80,L=80 |
95331-06008 |
US $2.33 |
||
| replacement | |||||
|
77241A
|
77241A
95333-06010 Hose, Fuel[11.1975 - 02.1976] KP3# *H,L=80,L=80 |
95333-06010 |
US $5.38 |
||
|
77241A
|
77241A
95331-06009
Hose, Fuel(For Fuel Evaporative Separator)
[02.1976 - 06.1977] KP3# *H,L=90,L=90 |
95331-06009 |
— | ||
|
77241A
|
77241A
95331-08008 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.3 (FOR BREATHER TUBE) [01.1972 - 04.1973] KP3# *H,L=80,L=80 |
95331-08008 |
US $2.48 |
||
| replacement | |||||
|
77241A
|
77241A
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[01.1972 - 04.1973] KP3# *H,L=80,L=80 |
95333-08010 |
— | ||
|
77241A
|
77241A
95332-06009 Hose, Fuel(For Fuel Evaporative Separator)[06.1977 - 04.1979] KP3# *H,L=90,L=90 |
95332-06009 |
US $2.91 |
||
| replacement | |||||
|
77241A
|
77241A
95333-06010 Hose, Fuel[06.1977 - 04.1979] KP3# *H,L=90,L=90 |
95333-06010 |
US $5.38 |
||
|
77241B
|
77241B
90445-12433
Hose, Fuel, No.1 (For Breather Tube)
[04.1969 - 11.1970] KP30 L=115 |
90445-12433 |
— | ||
|
77241B
|
77241B
90445-12670
Hose, Fuel, No.1 (For Breather Tube)
[11.1970 - 12.1971] KP30 L=115 |
90445-12670 |
— | ||
|
77241B
|
77241B
95331-06009
Hose, Fuel(For Fuel Evaporative Separator)
[11.1975 - 06.1977] KP30 *H,L=90,L=90 |
95331-06009 |
— | ||
|
77241B
|
77241B
95331-06010 Hose, Fuel, No.2 (For Main Tube, No.1)FUEL, NO.1 (FOR MAIN TUBE, NO.2) [04.1973 - 11.1975] KP30 *H,L=100,L=100 |
95331-06010 |
US $2.77 |
||
| replacement | |||||
|
77241B
|
77241B
95333-06010 Hose, Fuel[04.1973 - 11.1975] KP30 *H,L=100,L=100 |
95333-06010 |
US $5.38 |
||
|
77241B
|
77241B
95331-08012 Hose, Fuel, No.3(For Fuel Tank)FUEL, NO.2 (FOR MAIN TUBE, NO.1) [01.1972 - 04.1973] KP30 *H,L=120,L=120 |
95331-08012 |
US $3.20 |
||
| replacement | |||||
|
77241B
|
77241B
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [01.1972 - 04.1973] KP30 *H,L=120,L=120 |
95337-08020 |
from US $5.56 |
||
|
77241B
|
77241B
95332-06009 Hose, Fuel(For Fuel Evaporative Separator)[06.1977 - 02.1978] KP30 *H,L=90,L=90 |
95332-06009 |
US $2.91 |
||
| replacement | |||||
|
77241B
|
77241B
95333-06010 Hose, Fuel[06.1977 - 02.1978] KP30 *H,L=90,L=90 |
95333-06010 |
US $5.38 |
||
|
77242
|
77242
77209-10011
Tube, Fuel Main, No.2
[04.1969 - 08.1969] KP30 |
77209-10011 |
— | ||
|
77242
|
77242
77209-10012
Tube, Fuel Main, No.2
[08.1969 - 04.1973] KP30 |
77209-10012 |
— | ||
|
77242
|
77242
77242-10013
Tube, Fuel Main, No.2
[04.1973 - 11.1975] KP30 |
77242-10013 |
— | ||
|
77242
|
77242
77252-10040
Tube, Fuel Main, No.2
[11.1975 - 02.1978] KP30 |
77252-10040 |
— | ||
|
9046708036
|
9046708036
90467-08036 Clip, Ventilation Pipe To Thermostatic Valve HoseVENTILATION PIPE TO THERMOSTATIC VALVE HOSE |
90467-08036 |
US $2.04 |
||
|
9046711012
|
9046711012
90467-11012 Clip(For Reservoir Tube) |
90467-11012 |
US $2.18 |
||
| replacement | |||||
|
9046711012
|
9046711012
90467-11085 Clamp Or Clip(For Radiator Breather Hose) |
90467-11085 |
from US $0.70 |
||
|
9046713103
|
9046713103
90467-13103 Clip Or Clamp(For Ventilation Hose) |
90467-13103 |
from US $0.99 |
||
|
9046713125
|
9046713125
90467-13125 Clip(For Carburetor) |
90467-13125 |
US $2.77 |
||
| replacement | |||||
|
9046713125
|
9046713125
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9046713138
|
9046713138
90467-13138
Clip(For Fuel Hose)
|
90467-13138 |
— | ||
| replacement | |||||
|
9046713138
|
9046713138
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9048013202
|
9048013202
90480-13202 New Genuine Part |
90480-13202 |
US $3.06 |
||
|
9048020201
|
9048020201
90480-20201
New Genuine Part
|
90480-20201 |
— | ||
|
9048026140
|
9048026140
90480-26140 New Genuine Part |
90480-26140 |
US $2.91 |
||
