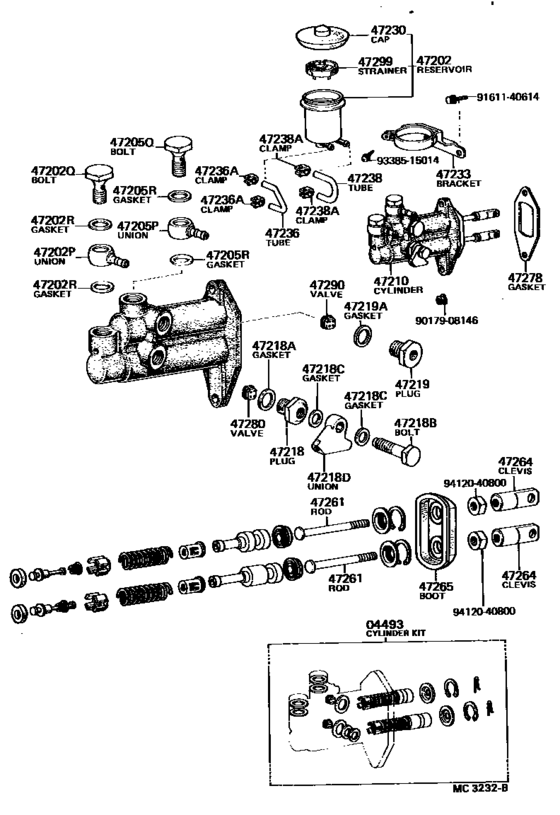

Brake Master Cylinder ([07.1974 - 11.1975] (7407-7511)KP30..LHD) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP30
- body
- SED
- ENGINE
- 2K
- From
- 04.1969
- To
- 02.1978
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04471-10023
Cylinder Kit, Brake Master
[04.1969 - 04.1970] KP3# FR DRUM BRAKE |
04471-10023 |
— | ||
| replacement | |||||
|
04493
|
04493
04471-10033
Cylinder Kit, Brake Master
[04.1969 - 04.1970] KP3# FR DRUM BRAKE |
04471-10033 |
— | ||
|
04493
|
04493
04471-10024
Cylinder Kit, Brake Master
[01.1972 - 08.1988] KP3# |
04471-10024 |
— | ||
|
04493
|
04493
04471-10033
Cylinder Kit, Brake Master
[04.1969 - 12.1971] KP3#..SED,V FR DISC BRAKE |
04471-10033 |
— | ||
|
04493
|
04493
04493-10030
Cylinder Kit, Brake Master
[07.1974 - 12.1975] KP30..LHD W/TANDEM M/C |
04493-10030 |
— | ||
|
04493
|
04493
04493-10040
Cylinder Kit, Brake Master
[07.1975 - 12.1975] KP3#..(SED,V)..LHD W/TANDEM M/C & BOOSTER |
04493-10040 |
— | ||
|
47202
|
47202
47202-12030 Reservoir Sub-Assy, Clutch Master CylinderBRAKE MASTER CYLINDER [01.1972 - 01.1975] KP3#..LHD |
47202-12030 |
US $32.32 |
||
| replacement | |||||
|
47202
|
47202
47202-12080
Reservoir Sub-Assy, Clutch Master Cylinder
[01.1972 - 01.1975] KP3#..LHD |
47202-12080 |
— | ||
|
47202
|
47202
47202-12080
Reservoir Sub-Assy, Clutch Master Cylinder
[01.1975 - 08.1988] KP30,36..LHD |
47202-12080 |
— | ||
|
47202
|
47202
47202-14020 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47202-14020 |
US $34.80 |
||
| replacement | |||||
|
47202
|
47202
47202-20060 Reservoir Sub-Assy, Brake Master Cylinder[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47202-20060 |
US $27.52 |
||
|
47202
|
47202
47202-14070 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [07.1975 - 12.1975] KP3#..(SED,V)..LHD W/TANDEM M/C & BOOSTER |
47202-14070 |
US $20.97 |
||
| replacement | |||||
|
47202
|
47202
47202-14071
Reservoir Sub-Assy, Brake Master Cylinder
[07.1975 - 12.1975] KP3#..(SED,V)..LHD W/TANDEM M/C & BOOSTER |
47202-14071 |
— | ||
|
47202
|
47202
47202-14071
Reservoir Sub-Assy, Brake Master Cylinder
[10.1976 - 09.1978] KP30,36..SED,V W/TANDEM M/C & BOOSTER |
47202-14071 |
— | ||
|
47202
|
47202
47202-20020 Reservoir Sub-Assy, Clutch Master CylinderBRAKE MASTER CYLINDER [11.1969 - 12.1971] KP3#..LHD |
47202-20020 |
US $32.61 |
||
| replacement | |||||
|
47202
|
47202
47202-12080
Reservoir Sub-Assy, Clutch Master Cylinder
[11.1969 - 12.1971] KP3#..LHD |
47202-12080 |
— | ||
|
47202
|
47202
47202-22010
Reservoir Sub-Assy, Brake Master Cylinder
[04.1969 - 11.1969] KP3#..LHD |
47202-22010 |
— | ||
|
47202
|
47202
47202-30010
Reservoir Sub-Assy, Clutch Master Cylinder
[04.1969 - 12.1971] KP3#..SED,V DISC BRAKE |
47202-30010 |
— | ||
| replacement | |||||
|
47202
|
47202
31402-30040
Reservoir Sub-Assy, Clutch Master Cylinder
[04.1969 - 12.1971] KP3#..SED,V DISC BRAKE |
31402-30040 |
— | ||
|
47202P
|
47202P
90405-10088 Union, Reservoir(For Brake Master Cylinder Rear Side)RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) [04.1969 - 08.1970] KP3#..LHD |
90405-10088 |
US $24.32 |
||
| replacement | |||||
|
47202P
|
47202P
90405-10125 Union(For Clutch Master Cylinder To Flexible Hose Tube)[04.1969 - 08.1970] KP3#..LHD |
90405-10125 |
US $27.43 |
||
|
47202P
|
47202P
90405-10125 Union(For Clutch Master Cylinder To Flexible Hose Tube)[08.1970 - 08.1988] KP30,36..LHD W/TANDEM M/C |
90405-10125 |
US $27.43 |
||
|
47202Q
|
47202Q
90401-16062 Bolt, Rsvr Union, No.2(For Brake Master Cylinder Rr Side)RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) [04.1969 - 08.1970] KP3#..LHD |
90401-16062 |
US $6.55 |
||
| replacement | |||||
|
47202Q
|
47202Q
90401-16078
Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
[04.1969 - 08.1970] KP3#..LHD |
90401-16078 |
— | ||
|
47202Q
|
47202Q
90401-16078
Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
[08.1970 - 08.1988] KP30,36..LHD W/TANDEM M/C |
90401-16078 |
— | ||
|
47202R
|
47202R
90430-16044
Gasket(For Water By-Pass Hose)
[04.1969 - 11.1975] KP3#..LHD |
90430-16044 |
— | ||
|
47202R
|
47202R
90430-16242 Gasket, W/head Straight Screw Plug[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
90430-16242 |
from US $0.80 |
||
|
47205P
|
47205P
90405-10125 Union(For Clutch Master Cylinder To Flexible Hose Tube)[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
90405-10125 |
US $27.43 |
||
|
47205Q
|
47205Q
90401-16078
Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
90401-16078 |
— | ||
|
47205R
|
47205R
90430-16242 Gasket, W/head Straight Screw Plug[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
90430-16242 |
from US $0.80 |
||
|
47210
|
47210
47200-10111
Cylinder Assy, Master, W/o Booster
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47200-10111 |
— | ||
|
47210
|
47210
47201-10020
Cylinder Assy, Master, W/o Booster
[07.1975 - 12.1975] KP3#..(SED,V)..LHD W/TANDEM M/C & BOOSTER |
47201-10020 |
— | ||
|
47210
|
47210
47210-10012 Cylinder Assy, Master, W/o BoosterMASTER, W/O BOOSTER [04.1969 - 04.1970] KP3#..LHD FR DRUM BRAKE |
47210-10012 |
US $101.92 |
||
| replacements | |||||
|
47210
|
47210
47210-10030
Cylinder Assy, Master, W/o Booster
[04.1969 - 04.1970] KP3#..LHD FR DRUM BRAKE |
47210-10030 |
— | ||
|
47210
|
47210
47264-10011
Clevis, Clutch Master Cylinder Push Rod
[04.1969 - 04.1970] KP3#..LHD FR DRUM BRAKE |
47264-10011 |
— | ||
|
47210
|
47210
47210-10013
Cylinder Assy, Master, W/o Booster
[09.1970 - 12.1971] KP3#..(SED,V)..LHD FR DRUM BRAKE |
47210-10013 |
— | ||
| replacement | |||||
|
47210
|
47210
47210-10030
Cylinder Assy, Master, W/o Booster
[09.1970 - 12.1971] KP3#..(SED,V)..LHD FR DRUM BRAKE |
47210-10030 |
— | ||
|
47210
|
47210
47210-10022 Cylinder Assy, Master, W/o BoosterMASTER, W/O BOOSTER [04.1969 - 09.1970] KP3#..(SED,V)..LHD FR DISC BRAKE |
47210-10022 |
US $101.92 |
||
| replacements | |||||
|
47210
|
47210
47210-10030
Cylinder Assy, Master, W/o Booster
[04.1969 - 09.1970] KP3#..(SED,V)..LHD FR DISC BRAKE |
47210-10030 |
— | ||
|
47210
|
47210
47264-10011
Clevis, Clutch Master Cylinder Push Rod
[04.1969 - 09.1970] KP3#..(SED,V)..LHD FR DISC BRAKE |
47264-10011 |
— | ||
|
47210
|
47210
47210-10023 Cylinder Assy, Master, W/o BoosterMASTER, W/O BOOSTER [09.1970 - 12.1971] KP36..PIC..LHD FR DRUM BRAKE; KP3#..(SED,V)..LHD FR DISC BRAKE |
47210-10023 |
US $101.92 |
||
| replacement | |||||
|
47210
|
47210
47210-10030
Cylinder Assy, Master, W/o Booster
[09.1970 - 12.1971] KP36..PIC..LHD FR DRUM BRAKE; KP3#..(SED,V)..LHD FR DISC BRAKE |
47210-10030 |
— | ||
|
47210
|
47210
47210-10030
Cylinder Assy, Master, W/o Booster
[01.1972 - 08.1988] KP30,36..LHD |
47210-10030 |
— | ||
|
47218
|
47218
47218-11010
Plug, Master Cylinder Fluid Outlet
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47218-11010 |
— | ||
|
47218
|
47218
47218-12010 Plug, Master Cylinder Fluid OutletMASTER CYLINDER FLUID OUTLET [04.1969 - 08.1988] KP3# |
47218-12010 |
US $10.63 |
||
|
47218A
|
47218A
90430-16242 Gasket, W/head Straight Screw Plug[07.1974 - 07.1975] KP30..LHD W/TANDEM M/C |
90430-16242 |
from US $0.80 |
||
|
47218A
|
47218A
90430-20018 Gasket(For Oil Pump Outlet Pipe)[04.1969 - 08.1988] KP3# |
90430-20018 |
from US $1.16 |
||
|
47218B
|
47218B
90401-10014
Bolt, Union(For Master Cylinder Fluid Outlet)
[04.1969 - 08.1988] KP3# |
90401-10014 |
— | ||
|
47218C
|
47218C
90430-10074 Gasket(For Oil Pressure Regulator)[04.1969 - 08.1988] KP3# |
90430-10074 |
from US $0.86 |
||
|
47218D
|
47218D
90405-10135
Union(For Master Cylinder Fluid Outlet)
[07.1974 - 07.1975] KP30..LHD W/TANDEM M/C |
90405-10135 |
— | ||
|
47218D
|
47218D
90413-10037
Union(For Master Cylinder Fluid Outlet)
[04.1969 - 08.1988] KP3# |
90413-10037 |
— | ||
|
47219
|
47219
47218-11010
Plug, Master Cylinder Fluid Outlet
[07.1975 - 12.1975] KP3#..(SED,V)..LHD W/TANDEM M/C & BOOSTER |
47218-11010 |
— | ||
|
47219
|
47219
47218-12020 Plug, Master Cylinder Fluid OutletMASTER CYLINDER FLUID OUTLET [12.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47218-12020 |
US $10.34 |
||
|
47219
|
47219
47218-20010
Plug, Master Cylinder Fluid Outlet
[07.1974 - 12.1974] KP30..LHD W/TANDEM M/C |
47218-20010 |
— | ||
| replacement | |||||
|
47219
|
47219
47218-12020 Plug, Master Cylinder Fluid OutletMASTER CYLINDER FLUID OUTLET [07.1974 - 12.1974] KP30..LHD W/TANDEM M/C |
47218-12020 |
US $10.34 |
||
|
47219A
|
47219A
90430-16242 Gasket, W/head Straight Screw Plug[07.1974 - 07.1975] KP30..LHD W/TANDEM M/C |
90430-16242 |
from US $0.80 |
||
|
47230
|
47230
47230-12020 Cap Assy, Brake Master Cylinder Reservoir FillerBRAKE MASTER CYLINDER RESERVOIR FILLER [01.1972 - 10.1976] KP3#..LHD W/TANDEM M/C |
47230-12020 |
US $8.42 |
||
|
47230
|
47230
47230-20030 Cap, Clutch Master Cylinder Reservoir Filler[10.1976 - 08.1988] KP30,36..LHD W/TANDEM M/C |
47230-20030 |
US $10.46 |
||
|
47230
|
47230
47230-22010 Cap Assy, Brake Master Cylinder Reservoir FillerBRAKE MASTER CYLINDER RESERVOIR FILLER [04.1969 - 12.1971] KP3#..LHD |
47230-22010 |
US $5.82 |
||
|
47233
|
47233
47233-10010
Bracket, Reservoir
[04.1969 - 11.1969] KP3#..LHD |
47233-10010 |
— | ||
|
47233
|
47233
47233-10011
Bracket, Reservoir
[11.1969 - 12.1971] KP3#..LHD |
47233-10011 |
— | ||
|
47233
|
47233
47233-10012 Bracket, ReservoirRESERVOIR [01.1972 - 12.1975] KP3#..LHD |
47233-10012 |
US $10.48 |
||
| replacement | |||||
|
47233
|
47233
47233-10013
Bracket, Reservoir
[01.1972 - 12.1975] KP3#..LHD |
47233-10013 |
— | ||
|
47233
|
47233
47233-10013
Bracket, Reservoir
[12.1975 - 08.1988] KP30,36..LHD |
47233-10013 |
— | ||
|
47233
|
47233
47233-10020
Bracket, Reservoir
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47233-10020 |
— | ||
|
47236
|
47236
47234-10010
Tube, Reservoir Brake
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47234-10010 |
— | ||
|
47236
|
47236
47236-10010 Tube, Reservoir BrakeRESERVOIR BRAKE [04.1969 - 07.1969] KP3#..LHD |
47236-10010 |
US $10.48 |
||
| replacements | |||||
|
47236
|
47236
47236-10012 Tube, Reservoir BrakeRESERVOIR BRAKE [04.1969 - 07.1969] KP3#..LHD |
47236-10012 |
US $10.63 |
||
|
47236
|
47236
90460-16069
Clip(For Reservoir Tube)
[04.1969 - 07.1969] KP3#..LHD |
90460-16069 |
— | ||
|
47236
|
47236
47236-10011 Tube, Reservoir BrakeRESERVOIR BRAKE [07.1969 - 12.1975] KP3#..LHD |
47236-10011 |
US $10.48 |
||
| replacement | |||||
|
47236
|
47236
47236-10012 Tube, Reservoir BrakeRESERVOIR BRAKE [07.1969 - 12.1975] KP3#..LHD |
47236-10012 |
US $10.63 |
||
|
47236
|
47236
47236-10012 Tube, Reservoir BrakeRESERVOIR BRAKE [12.1975 - 08.1988] KP30,36..LHD |
47236-10012 |
US $10.63 |
||
|
47236A
|
47236A
90460-16069
Clip(For Reservoir Tube)
[07.1969 - 08.1988] KP30,36..LHD W/TANDEM M/C |
90460-16069 |
— | ||
|
47236A
|
47236A
90467-14044 Clip(For Clutch Reservoir Tube)[04.1969 - 07.1969] KP3#..LHD |
90467-14044 |
US $1.46 |
||
| replacement | |||||
|
47236A
|
47236A
90467-14001 Clip Or Clamp(For Ventilation Hose)[04.1969 - 07.1969] KP3#..LHD |
90467-14001 |
from US $0.70 |
||
|
47238
|
47238
47235-10010
Hose, Master Cylinder Bridge
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47235-10010 |
— | ||
|
47238A
|
47238A
90460-16069
Clip(For Reservoir Tube)
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
90460-16069 |
— | ||
|
47261
|
47261
47261-10020 Rod, Master Cylinder PushMASTER CYLINDER PUSH [04.1969 - 08.1972] KP3# |
47261-10020 |
US $7.72 |
||
| replacement | |||||
|
47261
|
47261
47261-10030 Rod, Master Cylinder PushMASTER CYLINDER PUSH [04.1969 - 08.1972] KP3# |
47261-10030 |
US $8.15 |
||
|
47261
|
47261
47261-10030 Rod, Master Cylinder PushMASTER CYLINDER PUSH [08.1972 - 08.1988] KP30,36..LHD |
47261-10030 |
US $8.15 |
||
|
47261
|
47261
47261-10050
Rod, Master Cylinder Push
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47261-10050 |
— | ||
|
47264
|
47264
47264-10011
Clevis, Clutch Master Cylinder Push Rod
[04.1969 - 09.1970] KP3# |
47264-10011 |
— | ||
|
47264
|
47264
47264-10020
Clevis, Master Cylinder Push Rod
[10.1970 - 12.1971] KP3# |
47264-10020 |
— | ||
| replacement | |||||
|
47264
|
47264
47264-10040
Clevis, Master Cylinder Push Rod
[10.1970 - 12.1971] KP3# |
47264-10040 |
— | ||
|
47264
|
47264
47264-10030
Clevis, Master Cylinder Push Rod
[01.1972 - 10.1973] KP3#..LHD |
47264-10030 |
— | ||
| replacement | |||||
|
47264
|
47264
47264-10040
Clevis, Master Cylinder Push Rod
[01.1972 - 10.1973] KP3#..LHD |
47264-10040 |
— | ||
|
47264
|
47264
47264-10040
Clevis, Master Cylinder Push Rod
[10.1973 - 08.1988] KP3# |
47264-10040 |
— | ||
|
47264
|
47264
47264-10060
Clevis, Master Cylinder Push Rod
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47264-10060 |
— | ||
|
47264
|
47264
47264-11010 Clevis, Master Cylinder Push RodMASTER CYLINDER PUSH ROD [09.1970 - 10.1970] KP3# |
47264-11010 |
US $4.22 |
||
|
47264
|
47264
47264-12030 Clevis, Master Cylinder Push RodMASTER CYLINDER PUSH ROD [07.1975 - 12.1975] KP3#..(SED,V)..LHD W/TANDEM M/C & BOOSTER |
47264-12030 |
US $7.43 |
||
|
47265
|
47265
47265-10020
Boot, Master Cylinder
[04.1969 - 12.1971] KP3# |
47265-10020 |
— | ||
|
47265
|
47265
47265-10021 Boot, Clutch Master CylinderCLUTCH MASTER CYLINDER [01.1972 - 08.1988] KP3# |
47265-10021 |
US $4.37 |
||
|
47265
|
47265
47265-10040
Boot, Master Cylinder
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47265-10040 |
— | ||
|
47265
|
47265
47265-10050
Boot, Master Cylinder
[07.1975 - 12.1975] KP3#..(SED,V)..LHD W/TANDEM M/C & BOOSTER |
47265-10050 |
— | ||
|
47278
|
47278
47277-10010
Gasket, Brake Master Cylinder Bracket
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47277-10010 |
— | ||
|
47280
|
47280
47280-10011
Valve Assy, Brake Master Cylinder Outlet Check
[04.1969 - 04.1970] KP3# FR DRUM BRAKE |
47280-10011 |
— | ||
| replacement | |||||
|
47280
|
47280
47280-30010
Valve Assy, Brake Master Cylinder Outlet Check
[04.1969 - 04.1970] KP3# FR DRUM BRAKE |
47280-30010 |
— | ||
|
47280
|
47280
47280-12010
Valve Assy, Brake Master Cylinder Outlet Check
[04.1969 - 12.1971] KP3#..SED,V FR DISC BRAKE |
47280-12010 |
— | ||
| replacements | |||||
|
47280
|
47280
47280-12020
Valve Assy, Brake Master Cylinder Outlet Check
[04.1969 - 12.1971] KP3#..SED,V FR DISC BRAKE |
47280-12020 |
— | ||
|
47280
|
47280
47280-30020
Valve Assy, Brake Master Cylinder Outlet Check
[04.1969 - 12.1971] KP3#..SED,V FR DISC BRAKE |
47280-30020 |
— | ||
|
47280
|
47280
47280-20020
Valve Assy, Brake Master Cylinder Outlet Check
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47280-20020 |
— | ||
| replacement | |||||
|
47280
|
47280
47280-20030 Valve Assy, Brake Master Cylinder Outlet Check[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47280-20030 |
US $5.97 |
||
|
47280
|
47280
47281-14011
Valve Assy, Brake Master Cylinder Outlet Check
[01.1972 - 08.1988] KP3# |
47281-14011 |
— | ||
|
47290
|
47290
47280-20020
Valve Assy, Brake Master Cylinder Outlet Check
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47280-20020 |
— | ||
| replacement | |||||
|
47290
|
47290
47280-20030 Valve Assy, Brake Master Cylinder Outlet Check[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47280-20030 |
US $5.97 |
||
|
47299
|
47299
47299-20010
Strainer, Brake Master Cylinder Reservoir
[07.1975 - 12.1975] KP3#..(SED,V)..LHD W/TANDEM M/C & BOOSTER |
47299-20010 |
— | ||
|
47299
|
47299
47299-22020
Strainer, Master Cylinder Reservoir
[07.1974 - 01.1975] KP30 W/TANDEM M/C |
47299-22020 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9338515014
|
9338515014
93385-15014 Screw(For Steering Tilt Lever) |
93385-15014 |
US $1.97 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
