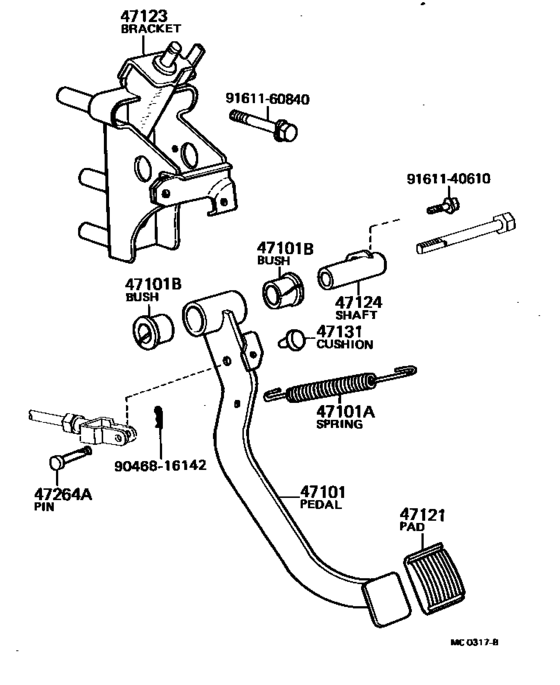

Brake Pedal & Bracket ([04.1969 - ] (6904- )LHD) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP30
- body
- SED
- ENGINE
- 2K
- From
- 04.1969
- To
- 02.1978
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-10060
Pedal Sub-Assy, Brake
[04.1969 - 09.1970] KP3#..LHD |
47101-10060 |
— | ||
| replacements | |||||
|
47101
|
47101
47101-10062
Pedal Sub-Assy, Brake
[04.1969 - 09.1970] KP3#..LHD |
47101-10062 |
— | ||
|
47101
|
47101
47264-11010 Clevis, Master Cylinder Push RodMASTER CYLINDER PUSH ROD [04.1969 - 09.1970] KP3#..LHD |
47264-11010 |
US $4.22 |
||
|
47101
|
47101
47101-10061
Pedal Sub-Assy, Brake
[09.1970 - 12.1971] KP3#..LHD |
47101-10061 |
— | ||
| replacement | |||||
|
47101
|
47101
47101-10062
Pedal Sub-Assy, Brake
[09.1970 - 12.1971] KP3#..LHD |
47101-10062 |
— | ||
|
47101
|
47101
47101-10062
Pedal Sub-Assy, Brake
[01.1972 - 08.1988] KP30,36..LHD |
47101-10062 |
— | ||
|
47101
|
47101
47101-10090
Pedal Sub-Assy, Brake
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47101-10090 |
— | ||
|
47101
|
47101
47101-10100
Pedal Sub-Assy, Brake
[07.1975 - 09.1978] KP30,36..(SED,V)..LHD W/TANDEM M/C |
47101-10100 |
— | ||
|
47101A
|
47101A
90506-12024 Spring(For Clutch Pedal)[04.1969 - 12.1971] KP3#..LHD WD=1.2,CW=30.5 |
90506-12024 |
US $3.06 |
||
|
47101A
|
47101A
90506-16373 Spring(For Clutch Pedal)[01.1972 - 04.1972] KP3# |
90506-16373 |
US $3.49 |
||
|
47101A
|
47101A
90506-16423 Spring(For Brake Pedal Return)[04.1972 - 08.1988] KP3# |
90506-16423 |
US $3.49 |
||
|
47101B
|
47101B
90386-13192 Bush(For Over Center Plate)[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
90386-13192 |
from US $1.60 |
||
|
47101B
|
47101B
90386-20056
Bush(For Brake Pedal)
[04.1969 - 08.1988] KP3# |
90386-20056 |
— | ||
|
47121
|
47121
31321-10020
Pad, Clutch Pedal
[04.1969 - 08.1988] KP3# |
31321-10020 |
— | ||
|
47123
|
47123
31305-10020 Bracket, Brake PedalBRAKE PEDAL [04.1969 - 12.1971] KP3#..LHD |
31305-10020 |
US $120.85 |
||
| replacement | |||||
|
47123
|
47123
31305-10021
Bracket, Brake Pedal
[04.1969 - 12.1971] KP3#..LHD |
31305-10021 |
— | ||
|
47123
|
47123
31305-10021
Bracket, Brake Pedal
[01.1972 - 08.1988] KP30,36..LHD |
31305-10021 |
— | ||
|
47123
|
47123
31305-10050
Bracket, Brake Pedal
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
31305-10050 |
— | ||
|
47123
|
47123
31305-10060
Bracket, Brake Pedal
[07.1975 - 09.1978] KP30,36..(SED,V)..LHD W/BOOSTER |
31305-10060 |
— | ||
|
47124
|
47124
31041-10010 Shaft, Brake PedalBRAKE PEDAL [04.1969 - 08.1988] KP3# |
31041-10010 |
US $13.83 |
||
|
47124
|
47124
31041-10020
Shaft, Brake Pedal
[07.1975 - 09.1978] KP30,36..(SED,V)..LHD W/BOOSTER |
31041-10020 |
— | ||
|
47124
|
47124
90101-10003
Shaft, Brake Pedal
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
90101-10003 |
— | ||
|
47131
|
47131
90541-06008 Cushion, No.1(For Clutch Pedal)[04.1969 - 08.1988] KP3# |
90541-06008 |
from US $1.50 |
||
|
47264A
|
47264A
90240-08040 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[04.1969 - 08.1970] KP3# |
90240-08040 |
US $4.30 |
||
|
47264A
|
47264A
90240-08062 Pin, W/hole(For Intermediate Lever)[08.1970 - 11.1970] KP3# |
90240-08062 |
US $1.60 |
||
|
47264A
|
47264A
90240-08128 Pin (For High & Low Shift Rod)[11.1970 - 12.1971] KP3# |
90240-08128 |
US $1.14 |
||
|
47264A
|
47264A
90240-10002
Pin(For Push Rod)
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
90240-10002 |
— | ||
|
47264A
|
47264A
90249-08051 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[01.1972 - 08.1988] KP3# |
90249-08051 |
US $3.05 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.80 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
