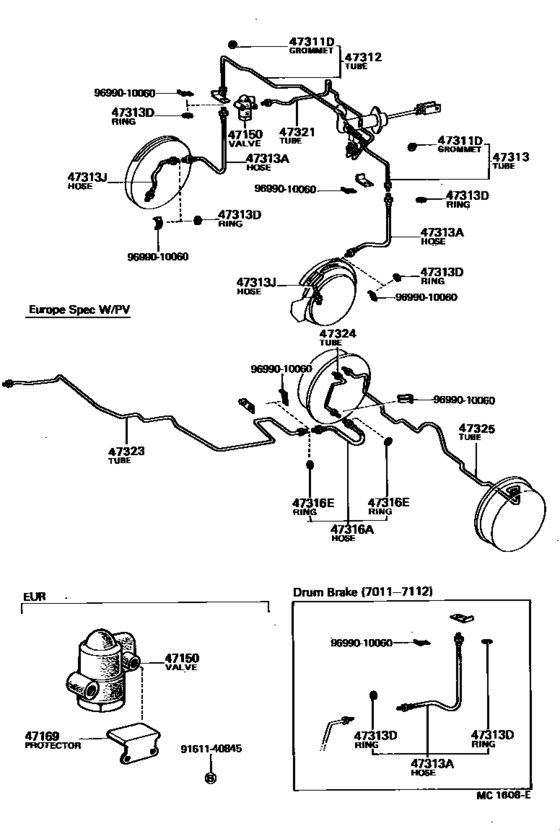

Brake Tube & Clamp ([11.1970 - 10.1973] (7011-7310)LHD) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP30
- body
- SED
- ENGINE
- 2K
- From
- 04.1969
- To
- 02.1978
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47150
|
47150
47150-10010 Valve Assy, ProportioningPROPORTIONING [05.1976 - 09.1978] KP30,36..(SED,V)..LHD |
47150-10010 |
US $115.02 |
||
|
47150
|
47150
47150-10020 Valve Assy, ProportioningPROPORTIONING [10.1973 - 12.1975] KP30..LHD EUROPE SPEC |
47150-10020 |
US $115.02 |
||
|
47150
|
47150
47150-12011 Valve Assy, ProportioningPROPORTIONING [11.1970 - 12.1971] KP3#..(SED,V)..LHD EUROPE SPEC |
47150-12011 |
US $90.27 |
||
| replacements | |||||
|
47150
|
47150
91611-60840 BOLT[11.1970 - 12.1971] KP3#..(SED,V)..LHD EUROPE SPEC |
91611-60840 |
US $2.33 |
||
|
47150
|
47150
47150-10020 Valve Assy, ProportioningPROPORTIONING [11.1970 - 12.1971] KP3#..(SED,V)..LHD EUROPE SPEC |
47150-10020 |
US $115.02 |
||
|
47150
|
47150
47159-12022
Bracket, Proportioning Valve
[11.1970 - 12.1971] KP3#..(SED,V)..LHD EUROPE SPEC |
47159-12022 |
— | ||
|
47169
|
47169
47169-10010
Protector, Proportioning Valve
[11.1970 - 12.1971] KP3#..(SED,V)..LHD EUROPE SPEC |
47169-10010 |
— | ||
|
47311D
|
47311D
90480-15146
Grommet(For Front Brake Tube)
[04.1969 - 10.1969] KP3# OD=15 |
90480-15146 |
— | ||
|
47311D
|
47311D
90480-22210 Grommet(For Front Brake Tube)[10.1969 - 08.1988] KP3# OD=22 |
90480-22210 |
US $3.58 |
||
|
47312
|
47312
47313-10060
Tube, Front Brake, No.2
[04.1969 - 10.1969] KP3#..LHD |
47313-10060 |
— | ||
|
47312
|
47312
47313-10061
Tube, Front Brake, No.2
[10.1969 - 11.1975] KP3#..LHD |
47313-10061 |
— | ||
|
47312
|
47312
47313-10080
Tube, Front Brake, No.2
[11.1970 - 12.1971] KP3#..(SED,V)..LHD EUROPE SPEC |
47313-10080 |
— | ||
|
47312
|
47312
47313-10081
Tube, Front Brake, No.2
[11.1975 - 01.1982] KP30,36..LHD |
47313-10081 |
— | ||
|
47312
|
47312
47313-10100
Tube, Front Brake, No.2
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47313-10100 |
— | ||
|
47312
|
47312
47313-10110
Tube, Front Brake, No.2
[07.1975 - 09.1978] KP30,36..(SED,V)..LHD W/TANDEM M/C |
47313-10110 |
— | ||
|
47313
|
47313
47314-10070
Tube, Front Brake, No.3
[04.1969 - 10.1969] KP3#..LHD |
47314-10070 |
— | ||
|
47313
|
47313
47314-10071
Tube, Front Brake, No.3
[10.1969 - 11.1975] KP3#..LHD |
47314-10071 |
— | ||
|
47313
|
47313
47314-10073 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [11.1975 - 08.1988] KP30,36..LHD |
47314-10073 |
US $7.43 |
||
|
47313
|
47313
47314-10090
Tube, Front Brake, No.3
[07.1974 - 11.1975] KP30..LHD W/TANDEM M/C |
47314-10090 |
— | ||
|
47313
|
47313
47314-10100
Tube, Front Brake, No.3
[07.1975 - 11.1975] KP3#..(SED,V)..LHD W/TANDEM M/C |
47314-10100 |
— | ||
|
47313
|
47313
47314-10101
Tube, Front Brake, No.3
[11.1975 - 09.1978] KP30,36..(SED,V)..LHD W/TANDEM M/C |
47314-10101 |
— | ||
|
47313A
|
47313A
90947-02096
Hose, Flexible, No.1(For Front)
[04.1969 - 12.1971] KP3# FR DRUM BRAKE |
90947-02096 |
— | ||
|
47313A
|
47313A
90947-02100
Hose, Flexible, No.1(For Front)
[04.1969 - 12.1971] KP3#..SED,V FR DISC BRAKE |
90947-02100 |
— | ||
|
47313A
|
47313A
90947-02186 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [01.1972 - 07.1974] KP3# FR DRUM BRAKE |
90947-02186 |
US $24.17 |
||
| replacement | |||||
|
47313A
|
47313A
96950-32955 Hose, Clutch, No.1[01.1972 - 07.1974] KP3# FR DRUM BRAKE |
96950-32955 |
US $17.33 |
||
|
47313A
|
47313A
90947-02187 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [01.1972 - 07.1974] KP30 FR DISC BRAKE |
90947-02187 |
US $24.17 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02257
Hose, Flexible, No.1(For Front)
[01.1972 - 07.1974] KP30 FR DISC BRAKE |
90947-02257 |
— | ||
|
47313A
|
47313A
90947-02245
Hose, Flexible, No.1(For Front)
[07.1974 - 02.1979] KP3# FR DRUM BRAKE |
90947-02245 |
— | ||
| replacement | |||||
|
47313A
|
47313A
96950-32955 Hose, Clutch, No.1[07.1974 - 02.1979] KP3# FR DRUM BRAKE |
96950-32955 |
US $17.33 |
||
|
47313A
|
47313A
90947-02257
Hose, Flexible, No.1(For Front)
[07.1974 - 07.1975] KP30 FR DISC BRAKE |
90947-02257 |
— | ||
|
47313D
|
47313D
96160-01200 Ring, E(For Clutch Release Cable)[04.1969 - 08.1988] KP3# |
96160-01200 |
from US $1.50 |
||
|
47313J
|
47313J
90947-02083 Hose, Flexible, No.2(For Front)FLEXIBLE, NO.2(FOR FRONT) [04.1969 - 12.1971] KP3#..SED,V FR DISC BRAKE |
90947-02083 |
US $24.17 |
||
| replacement | |||||
|
47313J
|
47313J
90947-02291
Hose, Flexible, No.2(For Front)
[04.1969 - 12.1971] KP3#..SED,V FR DISC BRAKE |
90947-02291 |
— | ||
|
47313J
|
47313J
90947-02188 Hose, Flexible, No.2(For Front)FLEXIBLE, NO.2(FOR FRONT) [01.1972 - 07.1974] KP30 FR DISC BRAKE |
90947-02188 |
US $24.17 |
||
| replacement | |||||
|
47313J
|
47313J
96960-39405
Hose, Flexible, No.2(For Front)
[01.1972 - 07.1974] KP30 FR DISC BRAKE |
96960-39405 |
— | ||
|
47313J
|
47313J
90947-02256 Hose, Flexible, No.2(For Front)FLEXIBLE, NO.2(FOR FRONT) [07.1974 - 07.1975] KP30 FR DISC BRAKE |
90947-02256 |
US $24.17 |
||
| replacement | |||||
|
47313J
|
47313J
96960-39405
Hose, Flexible, No.2(For Front)
[07.1974 - 07.1975] KP30 FR DISC BRAKE |
96960-39405 |
— | ||
|
47316A
|
47316A
90947-02098
Hose, Flexible(For Rear Brake Tube)
[04.1969 - 04.1970] KP3# L=386 |
90947-02098 |
— | ||
|
47316A
|
47316A
90947-02171
Hose, Flexible(For Rear Brake Tube)
[01.1972 - 10.1973] KP3#..SED,V L=402 |
90947-02171 |
— | ||
|
47316A
|
47316A
90947-02226 Hose, Flexible(For Rear Brake Tube)FLEXIBLE(FOR REAR BRAKE TUBE) [10.1973 - 07.1974] KP3#..SED,V L=298 |
90947-02226 |
US $25.63 |
||
| replacement | |||||
|
47316A
|
47316A
90947-02267
Hose, Clutch, No.1
[10.1973 - 07.1974] KP3#..SED,V L=298 |
90947-02267 |
— | ||
|
47316A
|
47316A
90947-02267
Hose, Clutch, No.1
[07.1974 - 09.1978] KP30,36..SED,V L=298 |
90947-02267 |
— | ||
|
47316E
|
47316E
96160-01200 Ring, E(For Clutch Release Cable)[04.1969 - 08.1988] KP3# |
96160-01200 |
from US $1.50 |
||
|
47321
|
47321
47312-10010
Tube, Rear Brake, No.1
[07.1974 - 11.1975] KP30..LHD |
47312-10010 |
— | ||
|
47321
|
47321
47315-10010
Tube, Rear Brake, No.1
[11.1970 - 12.1971] KP3#..(SED,V)..LHD EUROPE SPEC |
47315-10010 |
— | ||
|
47321
|
47321
47315-10011
Tube, Rear Brake, No.1
[11.1975 - 09.1978] KP30,36..(SED,V)..LHD FR DISC BRAKE,W/SINGLE M/C |
47315-10011 |
— | ||
|
47321
|
47321
47315-10090
Tube, Rear Brake, No.1
[11.1975 - 01.1982] KP30,36..LHD |
47315-10090 |
— | ||
|
47321
|
47321
47315-10100
Tube, Rear Brake, No.1
[07.1975 - 09.1978] KP30,36..(SED,V)..LHD W/TANDEM M/C & BOOSTER |
47315-10100 |
— | ||
|
47323
|
47323
47316-10070
Tube, Rear Brake, No.3
[04.1969 - 04.1970] KP3#..(SED,V)..LHD W/O PV |
47316-10070 |
— | ||
|
47323
|
47323
47316-10071
Tube, Rear Brake, No.3
[04.1970 - 12.1971] KP3#..(SED,V)..LHD W/O PV |
47316-10071 |
— | ||
|
47323
|
47323
47316-10072
Tube, Rear Brake, No.3
[01.1972 - 04.1973] KP3#..(SED,V)..LHD |
47316-10072 |
— | ||
|
47323
|
47323
47316-10073
Tube, Rear Brake, No.3
[04.1973 - 10.1973] KP3#..(SED,V)..LHD |
47316-10073 |
— | ||
|
47323
|
47323
47316-10074
Tube, Rear Brake, No.3
[10.1973 - 11.1975] KP30..LHD EUROPE SPEC |
47316-10074 |
— | ||
|
47323
|
47323
47316-10100
Tube, Rear Brake, No.3
[11.1970 - 12.1971] KP3#..(SED,V)..LHD EUROPE SPEC |
47316-10100 |
— | ||
|
47323
|
47323
47316-10101
Tube, Rear Brake, No.3
[01.1972 - 04.1973] KP30..LHD EUROPE SPEC |
47316-10101 |
— | ||
|
47323
|
47323
47316-10102
Tube, Rear Brake, No.3
[04.1973 - 10.1973] KP30..LHD EUROPE SPEC |
47316-10102 |
— | ||
|
47323
|
47323
47316-10103
Tube, Rear Brake, No.3
[07.1974 - 11.1975] KP30 W/TANDEM M/C |
47316-10103 |
— | ||
|
47323
|
47323
47316-10104
Tube, Rear Brake, No.3
[11.1975 - 02.1978] KP30 |
47316-10104 |
— | ||
|
47323
|
47323
47316-10150
Tube, Rear Brake, No.3
[07.1975 - 11.1975] KP30..LHD W/TANDEM M/C & BOOSTER |
47316-10150 |
— | ||
|
47323
|
47323
47316-10151
Tube, Rear Brake, No.3
[11.1975 - 02.1978] KP30..LHD W/TANDEM M/C & BOOSTER |
47316-10151 |
— | ||
|
47324
|
47324
47318-10030
Tube, Rear Brake, No.4
[04.1969 - 10.1973] KP3#..SED,V |
47318-10030 |
— | ||
| replacement | |||||
|
47324
|
47324
47318-10050
Tube, Rear Brake, No.4
[04.1969 - 10.1973] KP3#..SED,V |
47318-10050 |
— | ||
|
47324
|
47324
47318-10031 Tube, Rear Brake, No.4REAR BRAKE, NO.4 [10.1973 - 02.1977] KP3#..SED,V |
47318-10031 |
US $8.30 |
||
| replacement | |||||
|
47324
|
47324
47318-10051
Tube, Rear Brake, No.4
[10.1973 - 02.1977] KP3#..SED,V |
47318-10051 |
— | ||
|
47324
|
47324
47318-10051
Tube, Rear Brake, No.4
[02.1977 - 09.1978] KP30,36..SED,V |
47318-10051 |
— | ||
|
47325
|
47325
47319-10030 Tube, Rear Brake, No.5REAR BRAKE, NO.5 [04.1969 - 12.1971] KP3#..SED,V |
47319-10030 |
US $25.33 |
||
| replacement | |||||
|
47325
|
47325
47319-10050
Tube, Rear Brake, No.5
[04.1969 - 12.1971] KP3#..SED,V |
47319-10050 |
— | ||
|
47325
|
47325
47319-10031 Tube, Rear Brake, No.5REAR BRAKE, NO.5 [01.1972 - 10.1973] KP3#..SED,V |
47319-10031 |
US $25.33 |
||
| replacement | |||||
|
47325
|
47325
47319-10050
Tube, Rear Brake, No.5
[01.1972 - 10.1973] KP3#..SED,V |
47319-10050 |
— | ||
|
47325
|
47325
47319-10032 Tube, Rear Brake, No.5REAR BRAKE, NO.5 [10.1973 - 02.1977] KP3#..SED,V |
47319-10032 |
US $11.94 |
||
| replacement | |||||
|
47325
|
47325
47319-10051
Tube, Rear Brake, No.5
[10.1973 - 02.1977] KP3#..SED,V |
47319-10051 |
— | ||
|
47325
|
47325
47319-10051
Tube, Rear Brake, No.5
[02.1977 - 09.1978] KP30,36..SED,V |
47319-10051 |
— | ||
|
9161140845
|
9161140845
91611-40845
Bolt(For Clutch Release Cylinder Setting)
|
91611-40845 |
— | ||
| replacement | |||||
|
9161140845
|
9161140845
91611-B0845 Bolt(for Clutch Release Cylinder Setting) |
91611-B0845 |
US $3.05 |
||
|
9699010060
|
9699010060
96990-10060 CLIP |
96990-10060 |
from US $1.50 |
||
