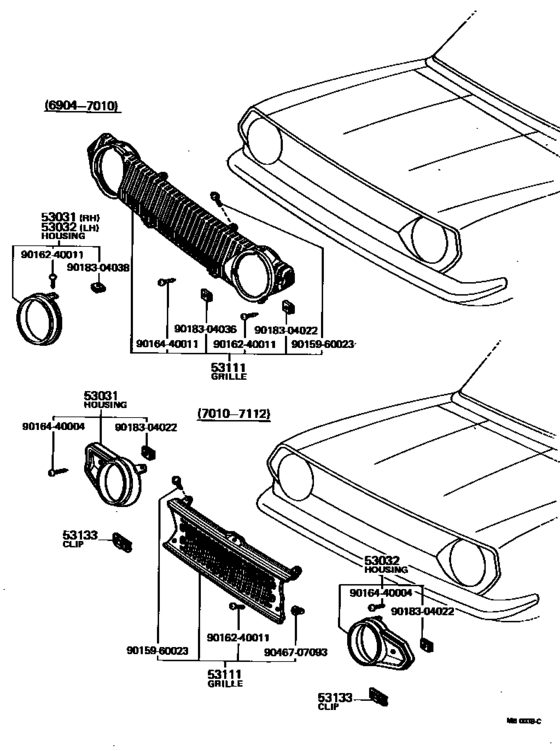

Radiator Grille ([04.1969 - 12.1971] (6904-7112)) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP30
- body
- SED
- ENGINE
- 2K
- From
- 04.1969
- To
- 02.1978
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53031
|
53031
53031-19015
Housing, Headlamp, Rh
[04.1969 - 10.1970] KP3# |
53031-19015 |
— | ||
| replacements | |||||
|
53031
|
53031
93530-54010 SCREW[04.1969 - 10.1970] KP3# |
93530-54010 |
from US $0.67 |
||
|
53031
|
53031
53031-10060
Housing, Headlamp, Rh
[04.1969 - 10.1970] KP3# |
53031-10060 |
— | ||
|
53031
|
53031
90183-04036 New Genuine Part[04.1969 - 10.1970] KP3# |
90183-04036 |
US $2.33 |
||
|
53031
|
53031
53031-19025
Housing, Headlamp, Rh
[01.1972 - 10.1973] KP3# |
53031-19025 |
— | ||
|
53031
|
53031
53131-19065
Housing, Headlamp, Rh
[10.1970 - 12.1971] KP3# |
53131-19065 |
— | ||
|
53031
|
53031
53131-19066
Housing, Headlamp, Rh
[10.1973 - 11.1975] KP3# |
53131-19066 |
— | ||
|
53031
|
53031
53131-19067
Housing, Headlamp, Rh
[11.1975 - 08.1988] KP3# |
53131-19067 |
— | ||
|
53032
|
53032
53031-19015
Housing, Headlamp, Rh
[04.1969 - 10.1970] KP3# |
53031-19015 |
— | ||
| replacements | |||||
|
53032
|
53032
93530-54010 SCREW[04.1969 - 10.1970] KP3# |
93530-54010 |
from US $0.67 |
||
|
53032
|
53032
53031-10060
Housing, Headlamp, Rh
[04.1969 - 10.1970] KP3# |
53031-10060 |
— | ||
|
53032
|
53032
90183-04036 New Genuine Part[04.1969 - 10.1970] KP3# |
90183-04036 |
US $2.33 |
||
|
53032
|
53032
53032-19015
Housing, Headlamp, Lh
[01.1972 - 10.1973] KP3# |
53032-19015 |
— | ||
|
53032
|
53032
53132-19065
Housing, Headlamp, Lh
[10.1970 - 12.1971] KP3# |
53132-19065 |
— | ||
|
53032
|
53032
53132-19066
Housing, Headlamp, Lh
[10.1973 - 11.1975] KP3# |
53132-19066 |
— | ||
|
53032
|
53032
53132-19067
Housing, Headlamp, Lh
[11.1975 - 08.1988] KP3# |
53132-19067 |
— | ||
|
53111
|
53111
53101-19085
Grille, Radiator
[04.1969 - 10.1970] KP3# |
53101-19085 |
— | ||
| replacement | |||||
|
53111
|
53111
53101-19105
Grille, Radiator
[04.1969 - 10.1970] KP3# |
53101-19105 |
— | ||
|
53111
|
53111
53101-19086 Grille, RadiatorRADIATOR [10.1970 - 12.1971] KP3# |
53101-19086 |
US $179.09 |
||
| replacement | |||||
|
53111
|
53111
53101-10061
Grille, Radiator
[10.1970 - 12.1971] KP3# |
53101-10061 |
— | ||
|
53111
|
53111
53101-19087
Grille, Radiator
[01.1972 - 10.1973] KP3# |
53101-19087 |
— | ||
| replacement | |||||
|
53111
|
53111
53101-10062
Grille, Radiator
[01.1972 - 10.1973] KP3# |
53101-10062 |
— | ||
|
53111
|
53111
53101-19088
Grille, Radiator
[10.1973 - 11.1975] KP3# |
53101-19088 |
— | ||
| replacement | |||||
|
53111
|
53111
53101-10063
Grille, Radiator
[10.1973 - 11.1975] KP3# |
53101-10063 |
— | ||
|
53111
|
53111
53101-19355
Grille, Radiator
[11.1975 - 08.1988] KP3# |
53101-19355 |
— | ||
|
53133
|
53133
53133-10031
Clip, Headlamp Rim
[10.1970 - 12.1971] KP3# |
53133-10031 |
— | ||
|
9015960023
|
9015960023
90159-60023
New Genuine Part
|
90159-60023 |
— | ||
|
9016240011
|
9016240011
90162-40011
New Genuine Part
|
90162-40011 |
— | ||
| replacement | |||||
|
9016240011
|
9016240011
93530-54010 SCREW |
93530-54010 |
from US $0.67 |
||
|
9016440004
|
9016440004
90164-40004 Screw, Headlamp |
90164-40004 |
US $1.75 |
||
| replacement | |||||
|
9016440004
|
9016440004
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.61 |
||
|
9016440011
|
9016440011
90164-40011 New Genuine Part |
90164-40011 |
US $2.33 |
||
| replacement | |||||
|
9016440011
|
9016440011
93540-54014 SCREW |
93540-54014 |
from US $0.95 |
||
|
9018304022
|
9018304022
90183-04022 Nut, Spring |
90183-04022 |
US $2.48 |
||
|
9018304036
|
9018304036
90183-04036 New Genuine Part |
90183-04036 |
US $2.33 |
||
|
9018304038
|
9018304038
90183-04038
New Genuine Part
|
90183-04038 |
— | ||
|
9046707093
|
9046707093
90467-07093
New Genuine Part
|
90467-07093 |
— | ||
