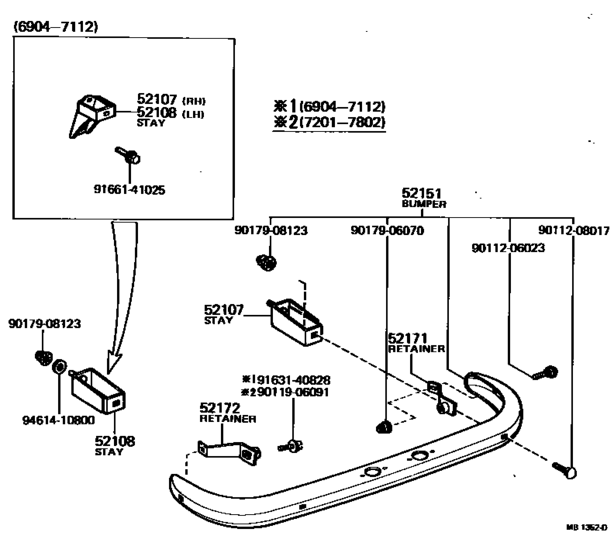

Rear Bumper & Bumper Stay ([04.1969 - 02.1978] (6904-7802)KP30) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP30
- body
- SED
- ENGINE
- 2K
- From
- 04.1969
- To
- 02.1978
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52107
|
52107
52013-10010
Stay Sub-Assy, Rear Bumper, Rh
[04.1969 - 12.1971] KP30 |
52013-10010 |
— | ||
|
52107
|
52107
52181-10031
Stay Sub-Assy, Rear Bumper, Rh
[01.1972 - 02.1978] KP30 |
52181-10031 |
— | ||
|
52108
|
52108
52014-10010
Stay Sub-Assy, Rear Bumper, Lh
[04.1969 - 12.1971] KP30 |
52014-10010 |
— | ||
|
52108
|
52108
52182-10040
Stay Sub-Assy, Rear Bumper, Lh
[01.1972 - 02.1978] KP30 |
52182-10040 |
— | ||
|
52151
|
52151
52151-19085 Bumper Assy, RearREAR [04.1969 - 02.1978] KP30 |
52151-19085 |
US $307.22 |
||
| replacement | |||||
|
52151
|
52151
52151-10010
Bumper Assy, Rear
[04.1969 - 02.1978] KP30 |
52151-10010 |
— | ||
|
52171
|
52171
52017-10010
Retainer, Rear Bumper Side, Rh
[04.1969 - 12.1971] KP30 |
52017-10010 |
— | ||
|
52171
|
52171
52171-10011
Retainer, Rear Bumper Side, Rh
[01.1972 - 02.1978] KP30 |
52171-10011 |
— | ||
|
52172
|
52172
52018-10010
Retainer, Rear Bumper Side, Lh
[04.1969 - 12.1971] KP30 |
52018-10010 |
— | ||
|
52172
|
52172
52172-10011
Retainer, Rear Bumper Side, Lh
[01.1972 - 02.1978] KP30 |
52172-10011 |
— | ||
|
9011206023
|
9011206023
90112-06023
New Genuine Part
|
90112-06023 |
— | ||
|
9011208017
|
9011208017
90112-08017
Bolt, Round Head Square Neck(For Rear Bumper)
|
90112-08017 |
— | ||
|
9011906091
|
9011906091
90119-06091 New Genuine Part |
90119-06091 |
US $2.04 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.78 |
||
|
9163140828
|
9163140828
91631-40828 New Genuine Part |
91631-40828 |
US $1.02 |
||
|
9166141025
|
9166141025
91661-41025 New Genuine Part |
91661-41025 |
US $2.33 |
||
| replacement | |||||
|
9166141025
|
9166141025
91662-61025 New Genuine Part |
91662-61025 |
US $2.33 |
||
|
9461410800
|
9461410800
94614-10800
Spacer (For Control Select Lever Support)
|
94614-10800 |
— | ||
| replacement | |||||
|
9461410800
|
9461410800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
