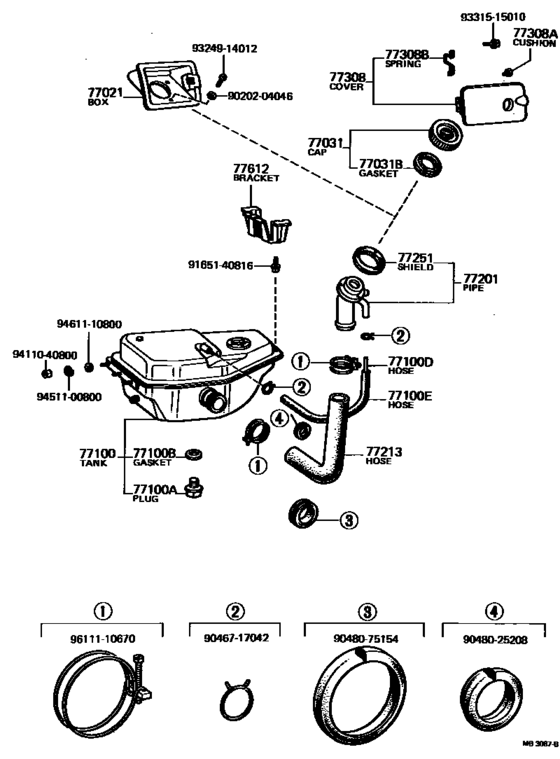

Fuel Tank & Tube ([11.1969 - 05.1972] (6911-7205)PIC) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1988
- Sales region
- General
- Frame
- KP36
- body
- PIC
- ENGINE
- 2K
- From
- 11.1969
- To
- 08.1988
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77021
|
77021
61709-11020
Box Assy, Fuel Tank Inlet
[11.1969 - 08.1988] KP36,37..PIC |
61709-11020 |
— | ||
|
77031
|
77031
77310-10030 Cap Assy, Fuel TankFUEL TANK [06.1971 - 12.1971] KP3# |
77310-10030 |
US $13.10 |
||
| replacement | |||||
|
77031
|
77031
77310-14010 Cap Assy, Fuel TankFUEL TANK [06.1971 - 12.1971] KP3# |
77310-14010 |
US $19.36 |
||
|
77031
|
77031
77310-12011
Cap Assy, Fuel Tank
[06.1969 - 06.1971] KP3# |
77310-12011 |
— | ||
| replacement | |||||
|
77031
|
77031
77310-14010 Cap Assy, Fuel TankFUEL TANK [06.1969 - 06.1971] KP3# |
77310-14010 |
US $19.36 |
||
|
77031
|
77031
77310-12041
Cap Assy, Fuel Tank
[05.1972 - 08.1988] KP36,37 |
77310-12041 |
— | ||
|
77031B
|
77031B
77316-10010
Gasket (For Fuel Tank Cap)
[06.1971 - 12.1971] KP3# |
77316-10010 |
— | ||
|
77031B
|
77031B
77316-12012
Gasket (For Fuel Tank Cap)
[06.1969 - 06.1971] KP3# |
77316-12012 |
— | ||
| replacement | |||||
|
77031B
|
77031B
77316-10010
Gasket (For Fuel Tank Cap)
[06.1969 - 06.1971] KP3# |
77316-10010 |
— | ||
|
77031B
|
77031B
77316-12040 Gasket (For Fuel Tank Cap)[05.1972 - 04.1973] KP36 |
77316-12040 |
US $6.84 |
||
|
77100
|
77100
77100-11070
Tank Assy, Fuel
[11.1969 - 05.1972] KP36..PIC |
77100-11070 |
— | ||
|
77100
|
77100
77100-96400
Tank Assy, Fuel
[05.1972 - 04.1973] KP36..PIC |
77100-96400 |
— | ||
|
77100
|
77100
77100-96401 Tank Assy, FuelFUEL [04.1973 - 08.1988] KP36,37..PIC |
77100-96401 |
US $381.47 |
||
|
77100A
|
77100A
90105-12018 Plug(For Fuel Tank)[04.1969 - 08.1988] KP3# |
90105-12018 |
US $6.81 |
||
|
77100B
|
77100B
90430-12038 Gasket(For Fuel Tank)[04.1969 - 05.1977] KP3# |
90430-12038 |
from US $2.75 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[05.1977 - 08.1988] KP3# |
90430-12245 |
from US $0.86 |
||
|
77100D
|
77100D
90445-18878 Hose, Fuel, No.1(For Fuel Tank)FUEL, NO.1(FOR FUEL TANK) [10.1972 - 11.1975] KP36 L=680 |
90445-18878 |
US $23.73 |
||
|
77100D
|
77100D
90445-18903
Hose, Fuel, No.1(For Fuel Tank)
[05.1972 - 10.1972] KP36..PIC L=900 |
90445-18903 |
— | ||
|
77100D
|
77100D
90445-18970 Hose, Fuel, No.1(For Fuel Tank)FUEL, NO.1(FOR FUEL TANK) [11.1975 - 08.1988] KP36,37 L=650 |
90445-18970 |
US $20.82 |
||
|
77100D
|
77100D
90446-09132
Hose, Fuel, No.1(For Fuel Tank)
[11.1969 - 05.1972] KP36..PIC L=500 |
90446-09132 |
— | ||
|
77100E
|
77100E
77249-96400
Hose, Fuel, No.2(For Fuel Tank)
[03.1972 - 05.1972] KP36..PIC L=535 |
77249-96400 |
— | ||
|
77100E
|
77100E
90066-21800 Hose, Fuel, No.2(For Fuel Tank)FUEL, NO.2(FOR FUEL TANK) [11.1969 - 03.1972] KP36..PIC L=535 |
90066-21800 |
US $29.27 |
||
| replacement | |||||
|
77100E
|
77100E
77249-96400
Hose, Fuel, No.2(For Fuel Tank)
[11.1969 - 03.1972] KP36..PIC L=535 |
77249-96400 |
— | ||
|
77201
|
77201
77201-11071
Pipe Sub-Assy, Fuel Tank Inlet
[05.1972 - 10.1972] KP36 |
77201-11071 |
— | ||
|
77201
|
77201
77201-11902
Pipe Sub-Assy, Fuel Tank Inlet
[09.1969 - 05.1972] KP36 |
77201-11902 |
— | ||
|
77201
|
77201
77201-96400
Pipe Sub-Assy, Fuel Tank Inlet
[10.1972 - 08.1988] KP36,37..PIC |
77201-96400 |
— | ||
|
77213
|
77213
77213-11050 Hose, Fuel Tank Sub InletFUEL TANK SUB INLET [11.1969 - 06.1972] KP36..PIC |
77213-11050 |
US $47.17 |
||
| replacement | |||||
|
77213
|
77213
77213-96400 Hose, Fuel Tank Sub InletFUEL TANK SUB INLET [11.1969 - 06.1972] KP36..PIC |
77213-96400 |
US $47.32 |
||
|
77213
|
77213
77213-96400 Hose, Fuel Tank Sub InletFUEL TANK SUB INLET [06.1972 - 08.1988] KP36,37..PIC |
77213-96400 |
US $47.32 |
||
|
77251
|
77251
77291-12010
Shield, Fuel Tank, Inlet, No.1
[04.1969 - 08.1988] KP3# |
77291-12010 |
— | ||
|
77308
|
77308
77308-11030
Cover Sub-Assy, Fuel Inlet Box
[11.1969 - 11.1975] KP36..PIC W/O FUEL LOCK |
77308-11030 |
— | ||
|
77308
|
77308
77308-11040
Cover Sub-Assy, Fuel Inlet Box
[11.1969 - 08.1988] KP36,37..PIC W/FUEL LOCK |
77308-11040 |
— | ||
|
77308A
|
77308A
90541-05040 Cushion(For Fuel Inlet Box Cover)[04.1969 - 12.1971] KP3# |
90541-05040 |
US $2.48 |
||
| replacement | |||||
|
77308A
|
77308A
90541-05018 Cushion(For Fuel Inlet Box Cover)[04.1969 - 12.1971] KP3# |
90541-05018 |
from US $1.67 |
||
|
77308B
|
77308B
90508-16163 Spring, Torsion(For Fuel Inlet Box Cover)TORSION(FOR FUEL INLET BOX COVER) [04.1969 - 12.1971] KP3# |
90508-16163 |
US $8.59 |
||
|
77612
|
77612
57609-96400
Bracket Sub-Assy, Fuel Tank
[11.1969 - 08.1988] KP36,37..PIC |
57609-96400 |
— | ||
|
9020204046
|
9020204046
90202-04046 New Genuine Part |
90202-04046 |
US $3.06 |
||
|
9046717042
|
9046717042
90467-17042
Clip (For Control Shaft Dust Boot Set)
|
90467-17042 |
— | ||
| replacement | |||||
|
9046717042
|
9046717042
90467-17126 Clip Or Clamp(For Ventilation Hose) |
90467-17126 |
US $2.15 |
||
|
9048025208
|
9048025208
90480-25208
New Genuine Part
|
90480-25208 |
— | ||
|
9048075154
|
9048075154
90480-75154
New Genuine Part
|
90480-75154 |
— | ||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9324914012
|
9324914012
93249-14012 New Genuine Part |
93249-14012 |
US $1.60 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.84 |
||
|
9611110670
|
9611110670
96111-10670 Clamp, Hose |
96111-10670 |
US $6.63 |
||
