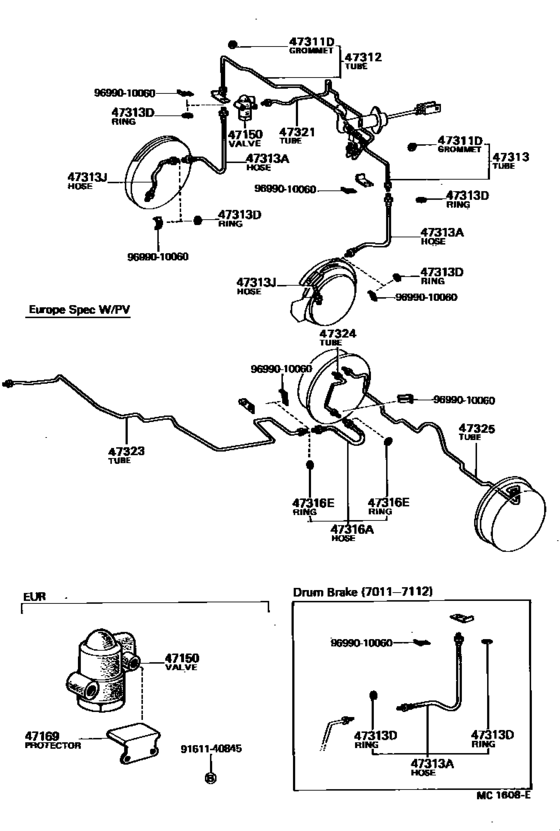

Brake Tube & Clamp ([11.1970 - 10.1973] (7011-7310)LHD) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1988
- Sales region
- Europe
- Frame
- KP36
- body
- PIC
- ENGINE
- 2K
- From
- 11.1969
- To
- 08.1988
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311D
|
47311D
90480-22210 Grommet(For Front Brake Tube)[10.1969 - 08.1988] KP3# OD=22 |
90480-22210 |
US $3.58 |
||
|
47312
|
47312
47313-10061
Tube, Front Brake, No.2
[10.1969 - 11.1975] KP3#..LHD |
47313-10061 |
— | ||
|
47312
|
47312
47313-10081
Tube, Front Brake, No.2
[11.1975 - 01.1982] KP30,36..LHD |
47313-10081 |
— | ||
|
47312
|
47312
47313-11030
Tube, Front Brake, No.2
[01.1982 - 08.1988] KP36..LHD |
47313-11030 |
— | ||
|
47313
|
47313
47314-10071
Tube, Front Brake, No.3
[10.1969 - 11.1975] KP3#..LHD |
47314-10071 |
— | ||
|
47313
|
47313
47314-10073 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [11.1975 - 08.1988] KP30,36..LHD |
47314-10073 |
US $7.43 |
||
|
47313A
|
47313A
90947-02096
Hose, Flexible, No.1(For Front)
[04.1969 - 12.1971] KP3# FR DRUM BRAKE |
90947-02096 |
— | ||
|
47313A
|
47313A
90947-02186 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [01.1972 - 07.1974] KP3# FR DRUM BRAKE |
90947-02186 |
US $24.17 |
||
| replacement | |||||
|
47313A
|
47313A
96950-32955 Hose, Clutch, No.1[01.1972 - 07.1974] KP3# FR DRUM BRAKE |
96950-32955 |
US $17.33 |
||
|
47313A
|
47313A
90947-02245
Hose, Flexible, No.1(For Front)
[07.1974 - 02.1979] KP3# FR DRUM BRAKE |
90947-02245 |
— | ||
| replacement | |||||
|
47313A
|
47313A
96950-32955 Hose, Clutch, No.1[07.1974 - 02.1979] KP3# FR DRUM BRAKE |
96950-32955 |
US $17.33 |
||
|
47313A
|
47313A
96950-32955 Hose, Clutch, No.1[02.1979 - 08.1988] KP3# FR DRUM BRAKE |
96950-32955 |
US $17.33 |
||
|
47313D
|
47313D
96160-01200 Ring, E(For Clutch Release Cable)[04.1969 - 08.1988] KP3# |
96160-01200 |
from US $1.50 |
||
|
47316A
|
47316A
90947-02098
Hose, Flexible(For Rear Brake Tube)
[04.1969 - 04.1970] KP3# L=386 |
90947-02098 |
— | ||
|
47316A
|
47316A
90947-02131 Hose, Flexible(For Rear Brake Tube)FLEXIBLE(FOR REAR BRAKE TUBE) [04.1970 - 07.1974] KP36..PIC L=370 |
90947-02131 |
US $26.79 |
||
| replacement | |||||
|
47316A
|
47316A
90947-02268 Hose, Flexible(For Rear Brake Tube)FLEXIBLE(FOR REAR BRAKE TUBE) [04.1970 - 07.1974] KP36..PIC L=370 |
90947-02268 |
US $24.61 |
||
|
47316A
|
47316A
90947-02268 Hose, Flexible(For Rear Brake Tube)FLEXIBLE(FOR REAR BRAKE TUBE) [07.1974 - 08.1988] KP36,37..PIC L=370 |
90947-02268 |
US $24.61 |
||
|
47316E
|
47316E
96160-01200 Ring, E(For Clutch Release Cable)[04.1969 - 08.1988] KP3# |
96160-01200 |
from US $1.50 |
||
|
47321
|
47321
47315-10090
Tube, Rear Brake, No.1
[11.1975 - 01.1982] KP30,36..LHD |
47315-10090 |
— | ||
|
47321
|
47321
47315-11040 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [01.1982 - 08.1988] KP36..LHD |
47315-11040 |
US $14.41 |
||
|
47323
|
47323
47316-11080
Tube, Rear Brake, No.3
[11.1969 - 04.1970] KP36..PIC..LHD |
47316-11080 |
— | ||
|
47323
|
47323
47316-11081
Tube, Rear Brake, No.3
[04.1970 - 04.1973] KP36..PIC..LHD |
47316-11081 |
— | ||
|
47323
|
47323
47316-11082
Tube, Rear Brake, No.3
[04.1973 - 11.1975] KP36..PIC..LHD |
47316-11082 |
— | ||
|
47323
|
47323
47316-11152
Tube, Rear Brake, No.3
[11.1975 - 01.1982] KP36,37..PIC |
47316-11152 |
— | ||
|
47323
|
47323
47316-11180 Tube, Rear Brake, No.3REAR BRAKE, NO.3 [01.1982 - 08.1988] KP36 |
47316-11180 |
US $29.27 |
||
|
47324
|
47324
47318-11040
Tube, Rear Brake, No.4
[11.1969 - 04.1970] KP36..PIC |
47318-11040 |
— | ||
|
47324
|
47324
47318-13010 Tube, Rear Brake, No.4REAR BRAKE, NO.4 [04.1970 - 02.1977] KP36..PIC |
47318-13010 |
US $6.55 |
||
| replacement | |||||
|
47324
|
47324
47318-13040
Tube, Rear Brake, No.4
[04.1970 - 02.1977] KP36..PIC |
47318-13040 |
— | ||
|
47324
|
47324
47318-13040
Tube, Rear Brake, No.4
[02.1977 - 08.1988] KP36,37..PIC |
47318-13040 |
— | ||
|
47325
|
47325
47319-11030
Tube, Rear Brake, No.5
[01.1982 - 08.1988] KP36 |
47319-11030 |
— | ||
|
47325
|
47325
47319-13010
Tube, Rear Brake, No.5
[11.1969 - 04.1970] KP36..PIC |
47319-13010 |
— | ||
|
47325
|
47325
47319-13020 Tube, Rear Brake, No.5REAR BRAKE, NO.5 [04.1970 - 12.1971] KP36..PIC |
47319-13020 |
US $11.07 |
||
| replacement | |||||
|
47325
|
47325
47319-13040 Tube, Rear Brake, No.5[04.1970 - 12.1971] KP36..PIC |
47319-13040 |
US $12.81 |
||
|
47325
|
47325
47319-13050 Tube, Rear Brake, No.5REAR BRAKE, NO.5 [02.1977 - 01.1982] KP36,37..PIC |
47319-13050 |
US $14.27 |
||
| replacement | |||||
|
47325
|
47325
47319-13040 Tube, Rear Brake, No.5[02.1977 - 01.1982] KP36,37..PIC |
47319-13040 |
US $12.81 |
||
|
9161140845
|
9161140845
91611-40845
Bolt(For Clutch Release Cylinder Setting)
|
91611-40845 |
— | ||
| replacement | |||||
|
9161140845
|
9161140845
91611-B0845 Bolt(for Clutch Release Cylinder Setting) |
91611-B0845 |
US $3.05 |
||
|
9699010060
|
9699010060
96990-10060 CLIP |
96990-10060 |
from US $1.50 |
||
