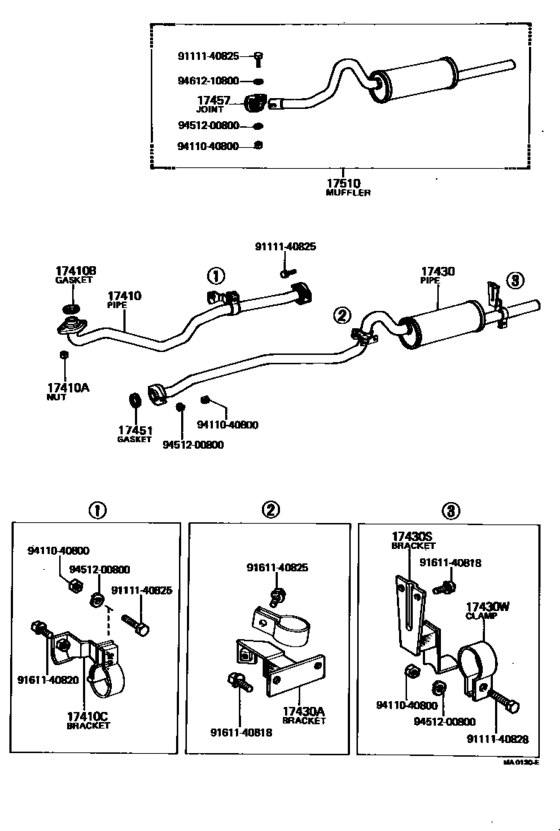

Exhaust Pipe ([11.1969 - 11.1975] (6911-7511)2K..KP36..PIC) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1988
- Sales region
- General
- Frame
- KP36
- body
- PIC
- ENGINE
- 2K
- From
- 11.1969
- To
- 08.1988
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-12012
Pipe Assy, Exhaust, Front
[01.1972 - 10.1974] 2K..KP3# |
17410-12012 |
— | ||
|
17410
|
17410
17410-12013
Pipe Assy, Exhaust, Front
[10.1974 - 11.1975] 2K..KP3# |
17410-12013 |
— | ||
|
17410
|
17410
17410-12021
Pipe Assy, Exhaust, Front
[05.1969 - 12.1971] 2K..KP3# |
17410-12021 |
— | ||
|
17410
|
17410
17410-24140
Pipe Assy, Exhaust, Front
[11.1975 - 08.1988] 2K..KP30,36 |
17410-24140 |
— | ||
|
17410A
|
17410A
90170-10199 Nut, Exhaust Pipe Set Stud Bolt[04.1969 - 02.1971] 2K..KP3# |
90170-10199 |
US $4.48 |
||
|
17410A
|
17410A
90179-10010 Nut, Exhaust Pipe Set Stud Bolt[05.1976 - 06.1984] 2K,3KH..KP3# |
90179-10010 |
from US $1.31 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[06.1984 - 08.1988] 2K..KP36 |
90179-10070 |
from US $1.31 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[06.1984 - 08.1988] 2K..KP36 |
90080-17187 |
US $44.70 |
||
|
17410A
|
17410A
90179-10118 Nut, Exhaust Pipe Set Stud BoltEXHAUST PIPE SET STUD BOLT [02.1971 - 11.1975] 2K..KP3# |
90179-10118 |
US $4.84 |
||
|
17410B
|
17410B
90917-06006
Gasket, Exhaust Pipe
[04.1969 - 11.1975] 2K..KP3# |
90917-06006 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06037 Gasket, Exhaust Pipe[04.1969 - 11.1975] 2K..KP3# |
90917-06037 |
from US $2.98 |
||
|
17410B
|
17410B
90917-06012
Gasket, Exhaust Pipe
[11.1975 - 08.1988] 2K..KP30,36 |
90917-06012 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06045 Gasket, Exhaust Pipe[11.1975 - 08.1988] 2K..KP30,36 |
90917-06045 |
from US $1.56 |
||
|
17410C
|
17410C
17571-22010
Bracket, Exhaust Pipe Front (For Front)
[04.1969 - 11.1975] 2K..KP3# |
17571-22010 |
— | ||
|
17410C
|
17410C
17571-24080
Bracket, Exhaust Pipe Front (For Front)
[11.1975 - 08.1977] 2K..KP30,36 |
17571-24080 |
— | ||
|
17410C
|
17410C
17571-24081 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1977 - 08.1988] 2K..KP30,36 |
17571-24081 |
US $8.59 |
||
|
17430
|
17430
17430-12052
Pipe Assy, Exhaust, Tail
[10.1974 - 11.1975] 2K..KP36..PIC |
17430-12052 |
— | ||
|
17430
|
17430
17430-12060 Pipe Assy, Exhaust, TailEXHAUST, TAIL [11.1969 - 04.1970] 2K..KP36..PIC |
17430-12060 |
US $189.28 |
||
| replacement | |||||
|
17430
|
17430
17430-12052
Pipe Assy, Exhaust, Tail
[11.1969 - 04.1970] 2K..KP36..PIC |
17430-12052 |
— | ||
|
17430
|
17430
17430-12061
Pipe Assy, Exhaust, Tail
[04.1970 - 10.1974] 2K..KP36..PIC |
17430-12061 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-12052
Pipe Assy, Exhaust, Tail
[04.1970 - 10.1974] 2K..KP36..PIC |
17430-12052 |
— | ||
|
17430
|
17430
17430-24220
Pipe Assy, Exhaust, Tail
[11.1975 - 08.1988] 2K..KP36..PIC |
17430-24220 |
— | ||
|
17430A
|
17430A
17562-12030 Bracket, Exhaust Tail Pipe(For Front)EXHAUST TAIL PIPE(FOR FRONT) [11.1969 - 08.1988] 2K..KP36..PIC |
17562-12030 |
US $19.80 |
||
|
17430S
|
17430S
17563-12031 Bracket, Exhaust Tail Pipe (For Rear)EXHAUST TAIL PIPE (FOR REAR) [11.1969 - 08.1988] 2K..KP36..PIC |
17563-12031 |
US $20.53 |
||
|
17430W
|
17430W
90461-23276 Clamp No.2, Exhaust Tail Pipe (For Rear)EXHAUST TAIL PIPE(FOR FRONT) [11.1969 - 08.1988] 2K..KP36..PIC |
90461-23276 |
US $3.64 |
||
|
17451
|
17451
17451-22010
Gasket, Exhaust Pipe
[10.1974 - 11.1975] 2K..KP3# |
17451-22010 |
— | ||
| replacement | |||||
|
17451
|
17451
17451-13010 Gasket, Exhaust Pipe[10.1974 - 11.1975] 2K..KP3# |
17451-13010 |
US $9.61 |
||
|
17451
|
17451
90917-06006
Gasket, Exhaust Pipe
[04.1969 - 10.1974] 2K..KP3# |
90917-06006 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06037 Gasket, Exhaust Pipe[04.1969 - 10.1974] 2K..KP3# |
90917-06037 |
from US $2.98 |
||
|
17457
|
17457
17457-22010 Joint, Exhaust PipeEXHAUST PIPE [04.1969 - 11.1975] 2K..KP3#..PIC,SED |
17457-22010 |
US $10.77 |
||
|
17510
|
17510
17540-12020
Muffler Assy
[11.1969 - 04.1970] 2K..KP36..PIC |
17540-12020 |
— | ||
|
17510
|
17510
17540-12021
Muffler Assy
[04.1970 - 11.1975] 2K..KP36..PIC |
17540-12021 |
— | ||
|
9111140825
|
9111140825
91111-40825
Bolt(For Clutch Master Cylinder Setting)
|
91111-40825 |
— | ||
| replacement | |||||
|
9111140825
|
9111140825
91111-50825 Bolt(For Clutch Master Cylinder Setting) |
91111-50825 |
US $3.40 |
||
|
9111140828
|
9111140828
91111-40828 New Genuine Part |
91111-40828 |
US $2.33 |
||
| replacement | |||||
|
9111140828
|
9111140828
91111-50828 New Genuine Part |
91111-50828 |
US $2.33 |
||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
