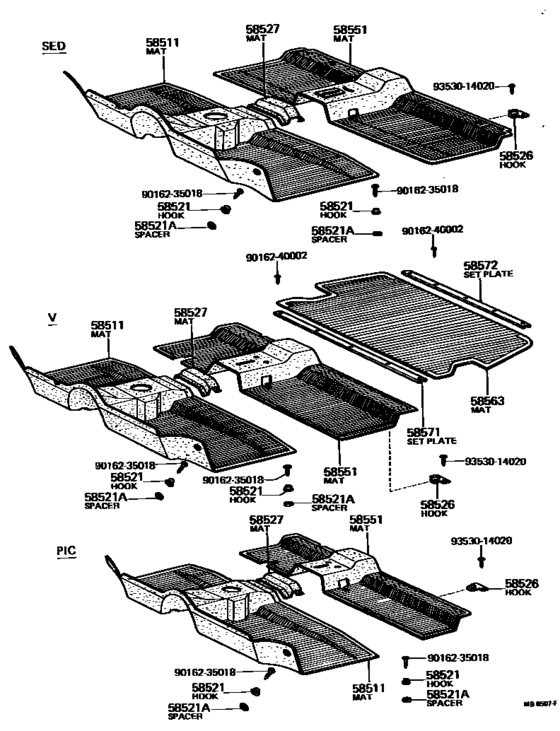

Mat & Carpet ([04.1969 - ] (6904- )) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- Europe
- Frame
- KP36
- body
- V
- ENGINE
- 2K
- From
- 04.1969
- To
- 09.1978
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58511
|
58511
58510-10090-01
Mat, Floor, Front
[04.1969 - 04.1970] KP3#..LHD OFF-BLACK,BLACK |
58510-10090-01 |
— | ||
|
58511
|
58511
58510-10091-01
Mat, Floor, Front
[04.1970 - 10.1970] KP3#..LHD OFF-BLACK,BLACK |
58510-10091-01 |
— | ||
|
58511
|
58511
58510-10091-11
Mat, Floor, Front
[10.1970 - 11.1975] KP3#..LHD BLACK,BLACK,TRIM2# |
58510-10091-11 |
— | ||
|
58511
|
58511
58510-10092-01
Mat, Floor, Front
[11.1975 - 11.1979] KP30,36..LHD BLACK,BLACK,TRIM2# |
58510-10092-01 |
— | ||
|
58511
|
58511
58510-10092-06
Mat, Floor, Front
[11.1975 - 01.1977] KP3#..LHD BROWN,BROWN,TRIM4# |
58510-10092-06 |
— | ||
|
58511
|
58511
58510-10092-16
Mat, Floor, Front
[01.1977 - 11.1979] KP30,36..LHD LIGHT BROWN,BROWN,TRIM4# |
58510-10092-16 |
— | ||
|
58511
|
58511
58510-11909-06
Mat, Floor, Front
[01.1972 - 10.1974] KP3#..LHD OLIVE BROWN,BROWN,TRIM4# |
58510-11909-06 |
— | ||
|
58511
|
58511
58510-11909-16
Mat, Floor, Front
[10.1974 - 11.1975] KP3#..LHD BROWN,BROWN,TRIM4# |
58510-11909-16 |
— | ||
|
58521
|
58521
58521-20010 Hook, Male, No.1MALE, NO.1 [04.1969 - 08.1988] KP3# |
58521-20010 |
US $2.18 |
||
|
58521A
|
58521A
90560-04166
Spacer(For Hook Male No.1)
[04.1969 - 06.1976] KP3# |
90560-04166 |
— | ||
|
58526
|
58526
58521-10010
Hook, Male, No.2
[04.1969 - 12.1971] KP3# |
58521-10010 |
— | ||
|
58527
|
58527
58527-10010-01
Mat, Center Floor Crossmember
[04.1969 - 10.1970] KP3# OFF-BLACK,BLACK |
58527-10010-01 |
— | ||
|
58527
|
58527
58527-10010-11
Mat, Center Floor Crossmember
[10.1970 - 11.1979] KP3# BLACK,BLACK,TRIM2# |
58527-10010-11 |
— | ||
|
58527
|
58527
58527-10010-16
Mat, Center Floor Crossmember
[01.1977 - 11.1979] KP3# LIGHT BROWN,BROWN,TRIM4# |
58527-10010-16 |
— | ||
|
58527
|
58527
58527-10901-06
Mat, Center Floor Crossmember
[01.1972 - 10.1974] KP3# OLIVE BROWN,BROWN,TRIM4# |
58527-10901-06 |
— | ||
|
58527
|
58527
58527-10901-16
Mat, Center Floor Crossmember
[10.1974 - 01.1977] KP3# BROWN,BROWN,TRIM4# |
58527-10901-16 |
— | ||
|
58551
|
58551
58550-11030-01
Mat, Floor, Rear
[04.1969 - 10.1970] KP36..V OFF-BLACK,BLACK |
58550-11030-01 |
— | ||
|
58551
|
58551
58550-11030-11
Mat, Floor, Rear
[10.1970 - 12.1971] KP36..V BLACK,BLACK |
58550-11030-11 |
— | ||
|
58551
|
58551
58551-10031-06
Mat, Floor, Rear
[01.1972 - 10.1974] KP36..V OLIVE BROWN,BROWN,TRIM4# |
58551-10031-06 |
— | ||
|
58551
|
58551
58551-10031-11
Mat, Floor, Rear
[01.1972 - 11.1975] KP36..V BLACK,BLACK,TRIM2# |
58551-10031-11 |
— | ||
|
58551
|
58551
58551-10031-16
Mat, Floor, Rear
[10.1974 - 11.1975] KP36..V BROWN,BROWN,TRIM4# |
58551-10031-16 |
— | ||
|
58551
|
58551
58581-11010-01
Mat, Floor, Rear
[11.1975 - 09.1978] KP36..V W/SEAT BELT,BLACK,BLACK,TRIM2# |
58581-11010-01 |
— | ||
|
58551
|
58551
58581-11010-06
Mat, Floor, Rear
[11.1975 - 01.1977] KP36..V W/SEAT BELT,BROWN,BROWN,TRIM4# |
58581-11010-06 |
— | ||
|
58551
|
58551
58581-11010-16
Mat, Floor, Rear
[01.1977 - 09.1978] KP36..V W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4# |
58581-11010-16 |
— | ||
|
58551
|
58551
58581-11020-01
Mat, Floor, Rear
[11.1975 - 09.1978] KP36..V W/O SEAT BELT,BLACK,BLACK,TRIM2# |
58581-11020-01 |
— | ||
|
58551
|
58551
58581-11020-06
Mat, Floor, Rear
[11.1975 - 01.1977] KP36..V W/O SEAT BELT,BROWN,BROWN,TRIM4# |
58581-11020-06 |
— | ||
|
58551
|
58551
58581-11020-16
Mat, Floor, Rear
[01.1977 - 09.1978] KP36..V W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4# |
58581-11020-16 |
— | ||
|
58563
|
58563
58561-11020 Mat, Rear FloorREAR FLOOR [04.1969 - 09.1975] KP36..V |
58561-11020 |
US $107.74 |
||
| replacement | |||||
|
58563
|
58563
58561-11021
Mat, Rear Floor
[04.1969 - 09.1975] KP36..V |
58561-11021 |
— | ||
|
58563
|
58563
58561-11021
Mat, Rear Floor
[09.1975 - 09.1978] KP36..V |
58561-11021 |
— | ||
|
58571
|
58571
58565-11020
Set Plate, Rear Floor Mat, Front
[04.1969 - 09.1978] KP36..V |
58565-11020 |
— | ||
|
58572
|
58572
58566-11010
Set Plate, Rear Floor Mat, Rear
[04.1969 - 09.1978] KP36..V |
58566-11010 |
— | ||
|
9016235018
|
9016235018
90162-35018 New Genuine Part |
90162-35018 |
US $2.18 |
||
|
9016240002
|
9016240002
90162-40002
New Genuine Part
|
90162-40002 |
— | ||
| replacement | |||||
|
9016240002
|
9016240002
93530-44014 New Genuine Part |
93530-44014 |
US $1.60 |
||
|
9353014020
|
9353014020
93530-14020
New Genuine Part
|
93530-14020 |
— | ||
