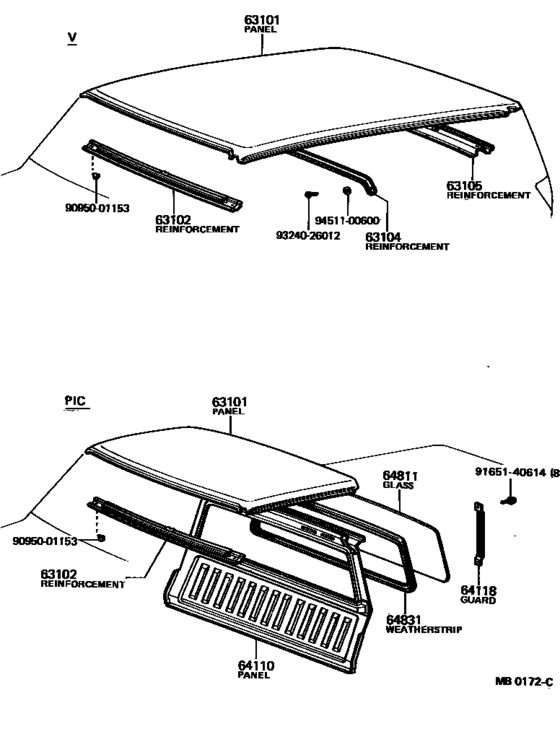

Roof Panel & Back Window Glass ([04.1969 - ] (6904- )KP36,37) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- Europe
- Frame
- KP36
- body
- V
- ENGINE
- 2K
- From
- 04.1969
- To
- 09.1978
- Vehicle Model
- 1000
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63101
|
63101
63111-11040
Panel Sub-Assy, Roof
[04.1969 - 09.1978] KP36..V |
63111-11040 |
— | ||
|
63102
|
63102
63102-10040
Reinforcement Sub-Assy, Roof Panel, Front
[04.1969 - 08.1988] KP3# |
63102-10040 |
— | ||
|
63104
|
63104
63143-11010
Reinforcement Sub-Assy, Roof Panel, Center
[04.1969 - 09.1978] KP36..V |
63143-11010 |
— | ||
|
63105
|
63105
63133-11010
Reinforcement Sub-Assy, Roof Panel, Rear
[04.1969 - 09.1978] KP36..V |
63133-11010 |
— | ||
|
9095001153
|
9095001153
90950-01153
New Genuine Part
|
90950-01153 |
— | ||
| replacement | |||||
|
9095001153
|
9095001153
90950-01153-03
New Genuine Part
|
90950-01153-03 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9324026012
|
9324026012
93240-26012 New Genuine Part |
93240-26012 |
US $1.75 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
