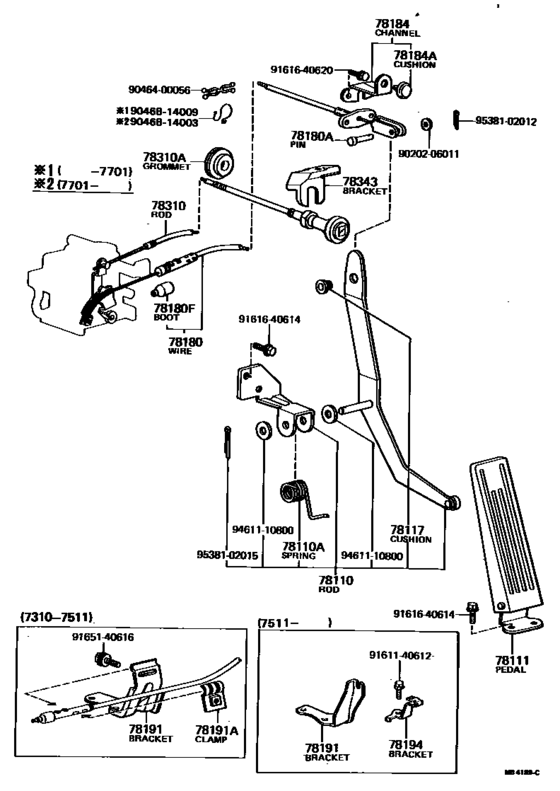

Accelerator Link ([10.1973 - ] (7310- )RHD) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP36
- body
- V
- ENGINE
- 2K
- From
- 04.1969
- To
- 09.1978
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110
|
78110
78102-10040
Rod Assy, Accelerator Pedal
[04.1969 - 12.1971] KP3#..RHD |
78102-10040 |
— | ||
|
78110
|
78110
78102-10041 Rod Assy, Accelerator PedalACCELERATOR PEDAL [01.1972 - 08.1988] KP3#..RHD |
78102-10041 |
US $22.86 |
||
|
78110A
|
78110A
90508-23204 Spring (For Accelerator Pedal Rod)[08.1970 - 08.1988] KP3#..RHD |
90508-23204 |
US $3.06 |
||
|
78111
|
78111
78101-10040
Pedal, Accelerator
[04.1969 - 08.1988] KP3#..RHD |
78101-10040 |
— | ||
|
78117
|
78117
90540-05038 Cushion (For Accelerator Rod)[04.1969 - 08.1975] KP3#..RHD |
90540-05038 |
US $2.62 |
||
|
78180
|
78180
78180-10010
Wire Assy, Accelerator
[04.1969 - 10.1973] KP3#..RHD |
78180-10010 |
— | ||
|
78180
|
78180
78180-10080
Wire Assy, Accelerator
[10.1973 - 11.1975] KP3#..RHD |
78180-10080 |
— | ||
|
78180
|
78180
78180-10081
Wire Assy, Accelerator
[11.1975 - 01.1977] KP3#..RHD |
78180-10081 |
— | ||
|
78180
|
78180
78180-10082 Wire Assy, AcceleratorACCELERATOR [01.1977 - 08.1988] KP3#..RHD |
78180-10082 |
US $38 |
||
|
78180A
|
78180A
90240-05072 Pin, Accelerator Wire SetACCELERATOR WIRE SET [04.1969 - 08.1975] KP3#..RHD |
90240-05072 |
US $3.06 |
||
|
78180F
|
78180F
78199-10030
Boot (For Accelerator Wire)
[10.1973 - 08.1988] KP3# |
78199-10030 |
— | ||
|
78184
|
78184
78184-10901
Channel, Accelerator Idle Adjusting Stopper
[04.1969 - 08.1988] KP3#..RHD |
78184-10901 |
— | ||
|
78184A
|
78184A
90541-06008 Cushion, No.1(For Clutch Pedal)[04.1969 - 06.1975] KP3# |
90541-06008 |
from US $1.50 |
||
|
78191
|
78191
78124-10020
Bracket, Accelerator Wire Support
[10.1973 - 11.1975] KP3# |
78124-10020 |
— | ||
|
78191
|
78191
78124-12010
Bracket, Accelerator Wire Support
[04.1969 - 01.1970] KP3# |
78124-12010 |
— | ||
|
78191
|
78191
78124-12030
Bracket, Accelerator Wire Support
[01.1970 - 10.1973] KP3# |
78124-12030 |
— | ||
|
78191
|
78191
78184-12040
Bracket, Accelerator Wire Support
[11.1975 - 08.1988] KP3# |
78184-12040 |
— | ||
|
78191A
|
78191A
78125-10020
Clamp (For Accelerator Wire Set)
[10.1973 - 11.1975] KP3# |
78125-10020 |
— | ||
|
78191A
|
78191A
78125-12010
Clamp (For Accelerator Wire Set)
[04.1969 - 10.1973] KP3# |
78125-12010 |
— | ||
|
78194
|
78194
78186-10010
Bracket, Accelerator Wire Support, No.2
[11.1975 - 01.1977] KP3# |
78186-10010 |
— | ||
|
78194
|
78194
78186-10011 Bracket, Accelerator Wire Support, No.2ACCELERATOR WIRE SUPPORT, NO.2 [01.1977 - 10.1982] KP3# |
78186-10011 |
US $4.22 |
||
| replacement | |||||
|
78194
|
78194
78186-10020
Support, Accelerator Control Cable, No.1
[01.1977 - 10.1982] KP3# |
78186-10020 |
— | ||
|
78310
|
78310
78310-10050
Cable Assy, Choke
[04.1969 - 10.1970] KP3#..RHD |
78310-10050 |
— | ||
| replacement | |||||
|
78310
|
78310
78310-10090
Cable Assy, Choke
[04.1969 - 10.1970] KP3#..RHD |
78310-10090 |
— | ||
|
78310
|
78310
78310-10051
Cable Assy, Choke
[10.1970 - 10.1973] KP3#..RHD |
78310-10051 |
— | ||
|
78310
|
78310
78310-10120
Cable Assy, Choke
[10.1973 - 11.1975] KP3#..RHD |
78310-10120 |
— | ||
|
78310
|
78310
78310-10121 Cable Assy, ChokeCHOKE [04.1976 - 08.1988] KP3#..RHD |
78310-10121 |
US $38.29 |
||
|
78310
|
78310
78310-10130
Cable Assy, Choke
[10.1973 - 11.1975] KP3#..(SED,V)..RHD COLLAPSIBLE |
78310-10130 |
— | ||
|
78310
|
78310
78310-10131
Cable Assy, Choke
[11.1975 - 04.1976] KP3#..RHD |
78310-10131 |
— | ||
|
78310A
|
78310A
90480-33200 Grommet, Choke CableCHOKE CABLE [04.1976 - 08.1988] KP3# |
90480-33200 |
US $1.89 |
||
|
78343
|
78343
55321-10040
Bracket, Choke Rod
[10.1973 - 11.1975] KP3#..(SED,V)..RHD |
55321-10040 |
— | ||
|
78343
|
78343
55321-10041
Bracket, Choke Rod
[11.1975 - 09.1978] KP30,36..SED,V |
55321-10041 |
— | ||
|
9020206011
|
9020206011
90202-06011 New Genuine Part |
90202-06011 |
US $2.04 |
||
|
9046400056
|
9046400056
90464-00056
Clamp, Choke Cable
|
90464-00056 |
— | ||
|
9046814003
|
9046814003
90468-14003 New Genuine Part |
90468-14003 |
US $3.20 |
||
|
9046814009
|
9046814009
90468-14009
Spring, Tension (For Accelerator Wire)
|
90468-14009 |
— | ||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9161640614
|
9161640614
91616-40614
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91616-40614 |
— | ||
| replacement | |||||
|
9161640614
|
9161640614
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9161640620
|
9161640620
91616-40620 Bolt(For Oil Receiver Pipe) |
91616-40620 |
US $2.18 |
||
| replacement | |||||
|
9161640620
|
9161640620
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $2.15 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.84 |
||
|
9538102012
|
9538102012
95381-02012
New Genuine Part
|
95381-02012 |
— | ||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.79 |
||
