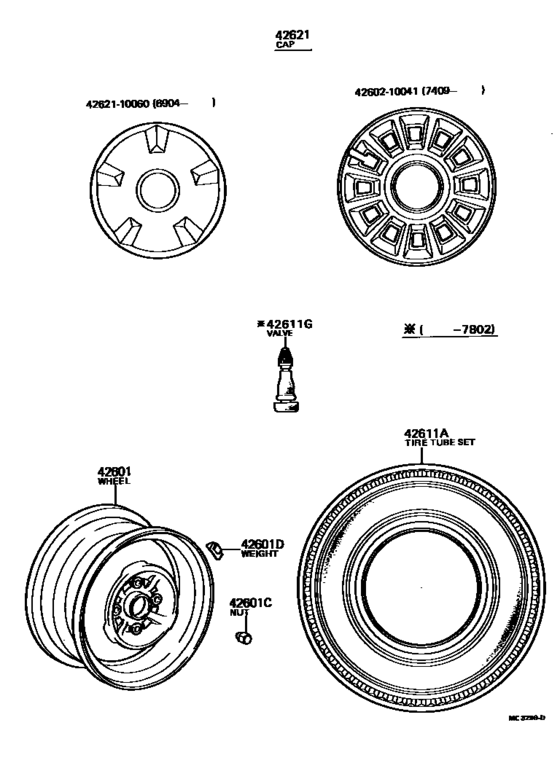

Disc Wheel & Wheel Cap ([04.1969 - ] (6904- )) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP36
- body
- V
- ENGINE
- 2K
- From
- 04.1969
- To
- 09.1978
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42601
|
42601
42611-12011
Wheel, Disc
[04.1969 - 12.1971] KP3# |
42611-12011 |
— | ||
| replacement | |||||
|
42601
|
42601
42611-12080
Wheel, Disc
[04.1969 - 12.1971] KP3# |
42611-12080 |
— | ||
|
42601
|
42601
42611-12080
Wheel, Disc
[01.1972 - 04.1974] KP3#..SED,V 13X4J,"0"MARK |
42611-12080 |
— | ||
|
42601C
|
42601C
90942-01007 Nut, Hub (For Axle)[04.1969 - 08.1988] KP3# |
90942-01007 |
from US $1.92 |
||
|
42601D
|
42601D
90942-03017 Weight, Balance (For Disc Wheel)[04.1969 - 08.1988] KP3# 20G,T=8,20G |
90942-03017 |
US $1.97 |
||
|
42601D
|
42601D
90942-03020 Weight, Balance (For Disc Wheel)[04.1969 - 08.1988] KP3# 30G,T=10,30G |
90942-03020 |
US $2.15 |
||
|
42601D
|
42601D
90942-03022 Weight, Balance (For Disc Wheel)[04.1969 - 08.1988] KP3# 40G,T=9.5,40G |
90942-03022 |
US $2.87 |
||
|
42601D
|
42601D
90942-03025 Weight, Balance (For Disc Wheel)[04.1969 - 08.1988] KP3# 50G,T=9.5,50G |
90942-03025 |
US $2.87 |
||
|
42601D
|
42601D
90942-03027 Weight, Balance (For Disc Wheel)[04.1969 - 08.1988] KP3# 60G,T=9.5,60G |
90942-03027 |
US $3.79 |
||
|
42601D
|
42601D
90942-03029 Weight, Balance (For Disc Wheel)[04.1969 - 08.1988] KP3# 70G,T=9.5,70G |
90942-03029 |
US $4.08 |
||
|
42601D
|
42601D
90942-03031 Weight, Balance (For Disc Wheel)[04.1969 - 08.1988] KP3# 80G,T=9.5,80G |
90942-03031 |
US $4.22 |
||
|
42601D
|
42601D
90942-03041 Weight, Balance (For Disc Wheel)[04.1969 - 08.1988] KP3# 10G,T=7.5,10G |
90942-03041 |
US $1.79 |
||
|
42611A
|
42611A
42605-10020
Tire Tube Set Or Tubeless Tire
[12.1975 - 09.1978] KP30,36..(SED,V)..RHD 155SR,ENGRAND SPEC |
42605-10020 |
— | ||
|
42611A
|
42611A
98010-60123
Tire Tube Set Or Tubeless Tire
[04.1969 - 11.1975] KP36..V 6.00-12-6,WSW |
98010-60123 |
— | ||
|
42611A
|
42611A
98011-60123
Tire Tube Set Or Tubeless Tire
[04.1969 - 12.1971] KP36..V 6.00-12-6,BLACK |
98011-60123 |
— | ||
|
42611A
|
42611A
98013-60123
Tire Tube Set Or Tubeless Tire
[04.1969 - 12.1971] KP36..V 6.00-12-6,WSW |
98013-60123 |
— | ||
|
42611A
|
42611A
98019-60123
Tire Tube Set Or Tubeless Tire
[04.1969 - 09.1978] KP36..V 6.00-12-6,BLACK,W/T |
98019-60123 |
— | ||
|
42611A
|
42611A
98051-50122
Tire Tube Set Or Tubeless Tire
[04.1969 - 09.1978] KP36..V 5.00-12-4,BLACK,W/T |
98051-50122 |
— | ||
|
42611A
|
42611A
98053-50122
Tire Tube Set Or Tubeless Tire
[04.1969 - 11.1975] KP36..V 5.00-12-4,WSW |
98053-50122 |
— | ||
|
42611A
|
42611A
98054-50122
Tire Tube Set Or Tubeless Tire
[04.1969 - 12.1971] KP36..V 5.00-12-4,SNOW |
98054-50122 |
— | ||
|
42611A
|
42611A
98510-60123
Tire Tube Set Or Tubeless Tire
[04.1969 - 12.1971] KP36..V 6.00-12-6,WSW,T/L |
98510-60123 |
— | ||
|
42611A
|
42611A
98511-60123
Tire Tube Set Or Tubeless Tire
[04.1969 - 12.1971] KP36..V 6.00-12-6,BLACK,T/L |
98511-60123 |
— | ||
|
42611A
|
42611A
98513-60123
Tire Tube Set Or Tubeless Tire
[04.1969 - 12.1971] KP36..V 6.00-12-6,WSW,T/L |
98513-60123 |
— | ||
|
42611A
|
42611A
98518-60123
Tire Tube Set Or Tubeless Tire
[04.1969 - 12.1971] KP36..V 6.00-12-6,BLACK,T/L |
98518-60123 |
— | ||
|
42611A
|
42611A
98519-60123
Tire Tube Set Or Tubeless Tire
[04.1969 - 09.1978] KP36..V 6.00-12-6,BLACK,T/L |
98519-60123 |
— | ||
|
42611G
|
42611G
90942-05009 Valve (For Tubeless Tire)[04.1969 - 02.1978] KP30,36 |
90942-05009 |
from US $6.99 |
||
| replacement | |||||
|
42611G
|
42611G
90080-94031 Valve (For Tubeless Tire)[04.1969 - 02.1978] KP30,36 |
90080-94031 |
US $1.46 |
||
|
42621
|
42621
42621-10060
Cap, Wheel
[04.1969 - 08.1988] KP3# OD=228 |
42621-10060 |
— | ||
|
4260210041
|
4260210041
42602-10041 Cap, WheelWHEEL |
42602-10041 |
US $62.03 |
||
|
4262110060
|
4262110060
42621-10060
Cap, Wheel
|
42621-10060 |
— | ||
