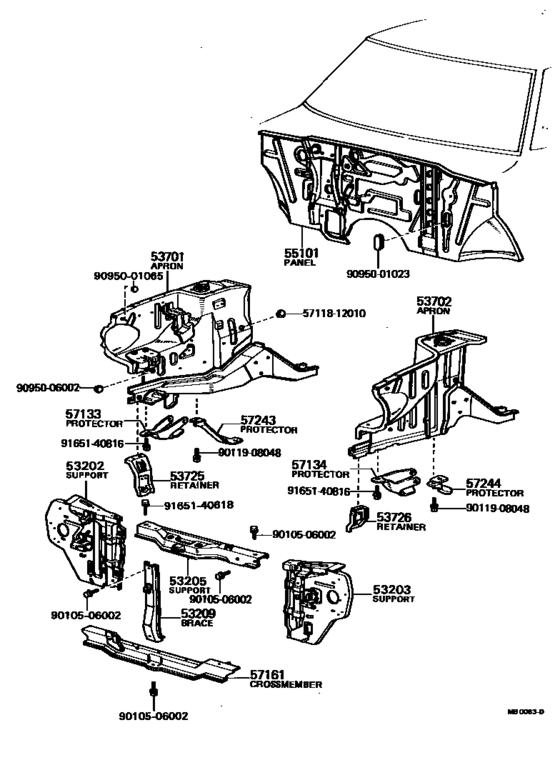

Front Fender Apron & Dash Panel ([04.1969 - ] (6904- )) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP36
- body
- V
- ENGINE
- 2K
- From
- 04.1969
- To
- 09.1978
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202
|
53202
53204-10010
Support Sub-Assy, Radiator, Rh
[04.1969 - 10.1970] KP3# |
53204-10010 |
— | ||
|
53202
|
53202
53204-10011
Support Sub-Assy, Radiator, Rh
[10.1970 - 12.1971] KP3# |
53204-10011 |
— | ||
|
53202
|
53202
53204-10012
Support Sub-Assy, Radiator, Rh
[01.1972 - 10.1973] KP3# |
53204-10012 |
— | ||
| replacement | |||||
|
53202
|
53202
53204-10040 Support Sub-Assy, Radiator, Rh[01.1972 - 10.1973] KP3# |
53204-10040 |
US $115.02 |
||
|
53202
|
53202
53204-10013
Support Sub-Assy, Radiator, Rh
[10.1973 - 11.1975] KP3# |
53204-10013 |
— | ||
| replacement | |||||
|
53202
|
53202
53204-10040 Support Sub-Assy, Radiator, Rh[10.1973 - 11.1975] KP3# |
53204-10040 |
US $115.02 |
||
|
53202
|
53202
53204-10014 Support Sub-Assy, Radiator, RhRADIATOR, RH [11.1975 - 08.1988] KP3# |
53204-10014 |
US $99.01 |
||
|
53203
|
53203
53205-10010
Support Sub-Assy, Radiator, Lh
[04.1969 - 10.1970] KP3# |
53205-10010 |
— | ||
|
53203
|
53203
53205-10011
Support Sub-Assy, Radiator, Lh
[10.1970 - 12.1970] KP3# |
53205-10011 |
— | ||
|
53203
|
53203
53205-10012
Support Sub-Assy, Radiator, Lh
[01.1972 - 11.1975] KP3# |
53205-10012 |
— | ||
| replacement | |||||
|
53203
|
53203
53205-10030 Support Sub-Assy, Radiator, Lh[01.1972 - 11.1975] KP3# |
53205-10030 |
US $115.02 |
||
|
53203
|
53203
53205-10013 Support Sub-Assy, Radiator, LhRADIATOR, LH [11.1975 - 08.1988] KP3# |
53205-10013 |
US $96.10 |
||
|
53205
|
53205
53202-10010
Support Sub-Assy, Radiator, Upper
[04.1969 - 10.1970] KP3# |
53202-10010 |
— | ||
| replacement | |||||
|
53205
|
53205
53202-10030
Support Sub-Assy, Radiator, Upper
[04.1969 - 10.1970] KP3# |
53202-10030 |
— | ||
|
53205
|
53205
53202-10011
Support Sub-Assy, Radiator, Upper
[10.1970 - 12.1971] KP3# |
53202-10011 |
— | ||
|
53205
|
53205
53202-10012
Support Sub-Assy, Radiator, Upper
[01.1972 - 07.1974] KP3# |
53202-10012 |
— | ||
| replacement | |||||
|
53205
|
53205
53202-10013
Support Sub-Assy, Radiator, Upper
[01.1972 - 07.1974] KP3# |
53202-10013 |
— | ||
|
53205
|
53205
53202-10013
Support Sub-Assy, Radiator, Upper
[07.1974 - 11.1975] KP3# |
53202-10013 |
— | ||
|
53205
|
53205
53202-10014 Support Sub-Assy, Radiator, UpperRADIATOR, UPPER [11.1975 - 08.1988] KP3# |
53202-10014 |
US $84.45 |
||
|
53209
|
53209
53209-10020 Brace Sub-Assy, Hood LockHOOD LOCK [01.1972 - 08.1988] KP3# |
53209-10020 |
US $14.12 |
||
|
53209
|
53209
53217-10030
Brace Sub-Assy, Hood Lock
[04.1969 - 12.1971] KP3# |
53217-10030 |
— | ||
|
53701
|
53701
53701-10041 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [04.1969 - 10.1971] KP3#..RHD |
53701-10041 |
US $508.14 |
||
| replacements | |||||
|
53701
|
53701
53701-10081 Apron Sub-assy, Front Fender, Rh[04.1969 - 10.1971] KP3#..RHD |
53701-10081 |
US $511.06 |
||
|
53701
|
53701
77241-10024
Tube, Fuel Main, No.1
[04.1969 - 10.1971] KP3#..RHD |
77241-10024 |
— | ||
|
53701
|
53701
77241-10033
Tube, Fuel Main, No.1
[04.1969 - 10.1971] KP3#..RHD |
77241-10033 |
— | ||
|
53701
|
53701
77241-11062
Tube, Fuel Main, No.1
[04.1969 - 10.1971] KP3#..RHD |
77241-11062 |
— | ||
|
53701
|
53701
53701-10042
Apron Sub-Assy, Front Fender, Rh
[10.1971 - 12.1971] KP3#..RHD |
53701-10042 |
— | ||
| replacement | |||||
|
53701
|
53701
53701-10081 Apron Sub-assy, Front Fender, Rh[10.1971 - 12.1971] KP3#..RHD |
53701-10081 |
US $511.06 |
||
|
53701
|
53701
53701-10043 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [01.1972 - 04.1974] KP3#..RHD |
53701-10043 |
US $508.14 |
||
| replacement | |||||
|
53701
|
53701
53701-10072
Apron Sub-Assy, Front Fender, Rh
[01.1972 - 04.1974] KP3#..RHD |
53701-10072 |
— | ||
|
53701
|
53701
53701-10072
Apron Sub-Assy, Front Fender, Rh
[04.1974 - 11.1975] KP3#..RHD |
53701-10072 |
— | ||
|
53701
|
53701
53701-10073 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [11.1975 - 01.1982] KP3#..RHD |
53701-10073 |
US $511.06 |
||
| replacements | |||||
|
53701
|
53701
90950-01866 Plug, Hole(For Front Door Panel)[11.1975 - 01.1982] KP3#..RHD |
90950-01866 |
from US $2.15 |
||
|
53701
|
53701
53701-96400 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [11.1975 - 01.1982] KP3#..RHD |
53701-96400 |
US $511.06 |
||
|
53702
|
53702
53702-10071 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [04.1969 - 12.1971] KP3#..RHD |
53702-10071 |
US $508.14 |
||
| replacement | |||||
|
53702
|
53702
53702-10081 Apron Sub-assy, Front Fender, Lh[04.1969 - 12.1971] KP3#..RHD |
53702-10081 |
US $511.06 |
||
|
53702
|
53702
53702-10072 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [01.1972 - 04.1974] KP3#..RHD |
53702-10072 |
US $538.72 |
||
| replacement | |||||
|
53702
|
53702
53702-10073
Apron Sub-Assy, Front Fender, Lh
[01.1972 - 04.1974] KP3#..RHD |
53702-10073 |
— | ||
|
53702
|
53702
53702-10073
Apron Sub-Assy, Front Fender, Lh
[04.1974 - 11.1975] KP3#..RHD |
53702-10073 |
— | ||
|
53702
|
53702
53702-10074 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [11.1975 - 01.1982] KP3#..RHD |
53702-10074 |
US $511.06 |
||
| replacement | |||||
|
53702
|
53702
53702-96400 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [11.1975 - 01.1982] KP3#..RHD |
53702-96400 |
US $511.06 |
||
|
53725
|
53725
53707-11010
Retainer, Front Bumper Stay, Rh
[04.1969 - 08.1988] KP36,37 |
53707-11010 |
— | ||
|
53726
|
53726
53708-11010
Retainer, Front Bumper Stay, Lh
[04.1969 - 08.1988] KP36,37 |
53708-11010 |
— | ||
|
55101
|
55101
55101-10080
Panel Sub-Assy, Dash
[04.1969 - 12.1971] KP3#..RHD |
55101-10080 |
— | ||
|
55101
|
55101
55101-10081
Panel Sub-Assy, Dash
[01.1972 - 10.1973] KP3#..RHD |
55101-10081 |
— | ||
|
55101
|
55101
55101-10082
Panel Sub-Assy, Dash
[10.1973 - 11.1975] KP3#..RHD |
55101-10082 |
— | ||
|
55101
|
55101
55101-10180
Panel Sub-Assy, Dash
[11.1975 - 01.1982] KP3#..RHD |
55101-10180 |
— | ||
|
57133
|
57133
57021-10010 Protector, Strut Bar Bracket, RhSTRUT BAR BRACKET, RH [03.1971 - 01.1982] KP30,36 COLD SPEC |
57021-10010 |
US $41.06 |
||
|
57133
|
57133
57133-10010
Protector, Strut Bar Bracket, Rh
[04.1969 - 03.1971] KP3# COLD SPEC |
57133-10010 |
— | ||
| replacement | |||||
|
57133
|
57133
57021-10010 Protector, Strut Bar Bracket, RhSTRUT BAR BRACKET, RH [04.1969 - 03.1971] KP3# COLD SPEC |
57021-10010 |
US $41.06 |
||
|
57134
|
57134
57022-10010 Protector, Strut Bar Bracket, LhSTRUT BAR BRACKET, LH [03.1971 - 01.1982] KP30,36 COLD SPEC |
57022-10010 |
US $41.06 |
||
|
57134
|
57134
57134-10010
Protector, Strut Bar Bracket, Lh
[04.1969 - 03.1971] KP3# COLD SPEC |
57134-10010 |
— | ||
| replacement | |||||
|
57134
|
57134
57022-10010 Protector, Strut Bar Bracket, LhSTRUT BAR BRACKET, LH [04.1969 - 03.1971] KP3# COLD SPEC |
57022-10010 |
US $41.06 |
||
|
57161
|
57161
57104-10010
Crossmember, Front
[04.1969 - 11.1975] KP3# |
57104-10010 |
— | ||
|
57161
|
57161
57104-10011
Crossmember, Front
[11.1975 - 08.1988] KP3# |
57104-10011 |
— | ||
|
57243
|
57243
57243-10010 Protector, Lower Arm, RhLOWER ARM, RH [03.1971 - 01.1982] KP30,36 COLD SPEC |
57243-10010 |
US $26.06 |
||
|
57244
|
57244
57244-10010
Protector, Lower Arm, Lh
[03.1971 - 01.1982] KP30,36 COLD SPEC |
57244-10010 |
— | ||
|
5711812010
|
5711812010
57118-12010 Plate Sub-assy, Front Side Member, Front Lh |
57118-12010 |
US $3.20 |
||
|
9010506002
|
9010506002
90105-06002 New Genuine Part |
90105-06002 |
US $2.33 |
||
| replacement | |||||
|
9010506002
|
9010506002
91521-40614
New Genuine Part
|
91521-40614 |
— | ||
|
9011908048
|
9011908048
90119-08048
New Genuine Part
|
90119-08048 |
— | ||
| replacement | |||||
|
9011908048
|
9011908048
90119-08657 New Genuine Part |
90119-08657 |
US $1.61 |
||
|
9095001023
|
9095001023
90950-01023
Plug, Hole, No.1(For Dash Panel)
|
90950-01023 |
— | ||
|
9095001065
|
9095001065
90950-01065 Plug, Hole(For Front Fender Apron) |
90950-01065 |
US $5.02 |
||
|
9095006002
|
9095006002
90950-06002 Cover, Front Floor Hole |
90950-06002 |
US $1.08 |
||
|
9165140618
|
9165140618
91651-40618 New Genuine Part |
91651-40618 |
US $2.80 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
