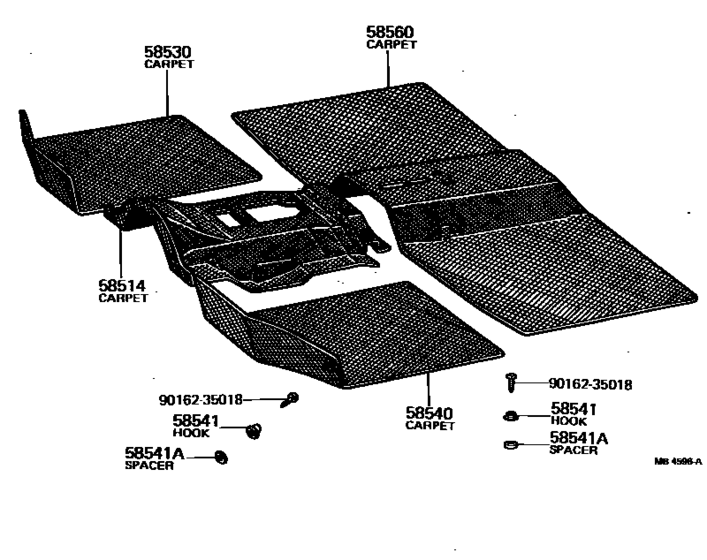

Mat & Carpet ([07.1974 - ] (7407- )) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP36
- body
- V
- ENGINE
- 2K
- From
- 04.1969
- To
- 09.1978
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58514
|
58514
58514-10013-01
Carpet, Floor, Front Center
[11.1975 - 09.1976] KP3#..(SED,V)..RHD BLACK,BLACK,TRIM2# |
58514-10013-01 |
— | ||
|
58514
|
58514
58514-10013-06
Carpet, Floor, Front Center
[11.1975 - 09.1976] KP3#..(SED,V)..RHD BROWN,BROWN,TRIM4# |
58514-10013-06 |
— | ||
|
58514
|
58514
58514-10014-01
Carpet, Floor, Front Center
[09.1976 - 01.1977] KP3#..(SED,V)..RHD BLACK,BLACK,TRIM2# |
58514-10014-01 |
— | ||
|
58514
|
58514
58514-10014-06
Carpet, Floor, Front Center
[09.1976 - 01.1977] KP3#..(SED,V)..RHD BROWN,BROWN,TRIM4# |
58514-10014-06 |
— | ||
|
58514
|
58514
58514-10015-01
Carpet, Floor, Front Center
[01.1977 - 09.1978] KP30,36..(SED,V)..RHD BLACK,BLACK,TRIM2# |
58514-10015-01 |
— | ||
|
58514
|
58514
58514-10015-06
Carpet, Floor, Front Center
[01.1977 - 09.1978] KP30,36..(SED,V)..RHD LIGHT BROWN,BROWN,TRIM4# |
58514-10015-06 |
— | ||
|
58530
|
58530
58510-10180-01
Carpet Assy, Floor, Front Rh
[11.1975 - 09.1976] KP3#..(SED,V)..RHD BLACK,BLACK,TRIM2# |
58510-10180-01 |
— | ||
|
58530
|
58530
58510-10180-06
Carpet Assy, Floor, Front Rh
[11.1975 - 09.1976] KP3#..(SED,V)..RHD BROWN,BROWN,TRIM4# |
58510-10180-06 |
— | ||
|
58530
|
58530
58510-10181-01
Carpet Assy, Floor, Front Rh
[09.1976 - 01.1977] KP3#..(SED,V)..RHD BLACK,BLACK,TRIM2# |
58510-10181-01 |
— | ||
|
58530
|
58530
58510-10181-06
Carpet Assy, Floor, Front Rh
[09.1976 - 01.1977] KP3#..(SED,V)..RHD BROWN,BROWN,TRIM4# |
58510-10181-06 |
— | ||
|
58530
|
58530
58510-10182-01
Carpet Assy, Floor, Front Rh
[01.1977 - 09.1978] KP30,36..(SED,V)..RHD BLACK,BLACK,TRIM2# |
58510-10182-01 |
— | ||
|
58530
|
58530
58510-10182-06
Carpet Assy, Floor, Front Rh
[01.1977 - 09.1978] KP30,36..(SED,V)..RHD LIGHT BROWN,BROWN,TRIM4# |
58510-10182-06 |
— | ||
|
58540
|
58540
58540-10010-01
Carpet Assy, Floor, Front Lh
[11.1975 - 09.1976] KP3#..(SED,V)..RHD BLACK,BLACK,TRIM2# |
58540-10010-01 |
— | ||
|
58540
|
58540
58540-10010-16
Carpet Assy, Floor, Front Lh
[11.1975 - 09.1976] KP3#..(SED,V)..RHD BROWN,BROWN,TRIM4# |
58540-10010-16 |
— | ||
|
58540
|
58540
58540-10011-01
Carpet Assy, Floor, Front Lh
[09.1976 - 01.1977] KP3#..(SED,V)..RHD BLACK,BLACK,TRIM2# |
58540-10011-01 |
— | ||
|
58540
|
58540
58540-10011-06
Carpet Assy, Floor, Front Lh
[09.1976 - 01.1977] KP3#..(SED,V)..RHD BROWN,BROWN,TRIM4# |
58540-10011-06 |
— | ||
|
58540
|
58540
58540-10012-01
Carpet Assy, Floor, Front Lh
[01.1977 - 09.1978] KP30,36..(SED,V)..RHD BLACK,BLACK,TRIM2# |
58540-10012-01 |
— | ||
|
58540
|
58540
58540-10012-06
Carpet Assy, Floor, Front Lh
[01.1977 - 09.1978] KP30,36..(SED,V)..RHD LIGHT BROWN,BROWN,TRIM4# |
58540-10012-06 |
— | ||
|
58541
|
58541
58521-20010 Hook, Male, No.1MALE, NO.1 [11.1975 - 01.1976] KP3#..(SED,V)..RHD |
58521-20010 |
US $2.18 |
||
|
58541A
|
58541A
90560-04166
Spacer(For Hook Male No.1)
[11.1975 - 01.1976] KP3#..(SED,V)..RHD |
90560-04166 |
— | ||
|
58560
|
58560
58560-10014-01
Carpet Assy, Floor, Rear
[05.1977 - 09.1978] KP30,36..SED,V W/SEAT BELT,BLACK,BLACK,TRIM2# |
58560-10014-01 |
— | ||
|
58560
|
58560
58560-10014-06
Carpet Assy, Floor, Rear
[05.1977 - 09.1978] KP30,36..SED,V W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4# |
58560-10014-06 |
— | ||
|
58560
|
58560
58560-11020-01
Carpet Assy, Floor, Rear
[11.1975 - 01.1976] KP36..V..RHD W/SEAT BELT,BLACK,BLACK,TRIM2# |
58560-11020-01 |
— | ||
| replacement | |||||
|
58560
|
58560
58570-10010-01
Carpet Assy, Floor, Rear
[11.1975 - 01.1976] KP36..V..RHD W/SEAT BELT,BLACK,BLACK,TRIM2# |
58570-10010-01 |
— | ||
|
58560
|
58560
58560-11020-06
Carpet Assy, Floor, Rear
[11.1975 - 01.1976] KP36..V..RHD W/SEAT BELT,BROWN,BROWN,TRIM4# |
58560-11020-06 |
— | ||
| replacement | |||||
|
58560
|
58560
58570-10010-06
Carpet Assy, Floor, Rear
[11.1975 - 01.1976] KP36..V..RHD W/SEAT BELT,BROWN,BROWN,TRIM4# |
58570-10010-06 |
— | ||
|
58560
|
58560
58560-11021-01
Carpet Assy, Floor, Rear
[09.1976 - 01.1977] KP36..V W/SEAT BELT,BLACK,BLACK,TRIM2# |
58560-11021-01 |
— | ||
| replacement | |||||
|
58560
|
58560
58570-10011-01
Carpet Assy, Floor, Rear
[09.1976 - 01.1977] KP36..V W/SEAT BELT,BLACK,BLACK,TRIM2# |
58570-10011-01 |
— | ||
|
58560
|
58560
58560-11021-06
Carpet Assy, Floor, Rear
[09.1976 - 01.1977] KP36..V W/SEAT BELT,BROWN,BROWN,TRIM4# |
58560-11021-06 |
— | ||
| replacement | |||||
|
58560
|
58560
58570-10011-06
Carpet Assy, Floor, Rear
[09.1976 - 01.1977] KP36..V W/SEAT BELT,BROWN,BROWN,TRIM4# |
58570-10011-06 |
— | ||
|
58560
|
58560
58560-11022-01 Carpet Assy, Floor, RearFLOOR, REAR [01.1977 - 05.1977] KP36..V W/SEAT BELT,BLACK,BLACK,TRIM2# |
58560-11022-01 |
US $176.18 |
||
| replacement | |||||
|
58560
|
58560
58560-10014-01
Carpet Assy, Floor, Rear
[01.1977 - 05.1977] KP36..V W/SEAT BELT,BLACK,BLACK,TRIM2# |
58560-10014-01 |
— | ||
|
58560
|
58560
58560-11022-06 Carpet Assy, Floor, RearFLOOR, REAR [01.1977 - 05.1977] KP36..V W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4# |
58560-11022-06 |
US $176.18 |
||
| replacement | |||||
|
58560
|
58560
58560-10014-06
Carpet Assy, Floor, Rear
[01.1977 - 05.1977] KP36..V W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4# |
58560-10014-06 |
— | ||
|
58560
|
58560
58570-10012-01
Carpet Assy, Floor, Rear
[05.1977 - 09.1978] KP30,36..SED,V W/O SEAT BELT,BLACK,BLACK,TRIM2# |
58570-10012-01 |
— | ||
|
58560
|
58560
58570-10012-06
Carpet Assy, Floor, Rear
[05.1977 - 09.1978] KP30,36..SED,V W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4# |
58570-10012-06 |
— | ||
|
58560
|
58560
58570-11020-01
Carpet Assy, Floor, Rear
[11.1975 - 01.1976] KP36..V..RHD W/O SEAT BELT,BLACK,BLACK,TRIM2# |
58570-11020-01 |
— | ||
| replacement | |||||
|
58560
|
58560
58570-10010-01
Carpet Assy, Floor, Rear
[11.1975 - 01.1976] KP36..V..RHD W/O SEAT BELT,BLACK,BLACK,TRIM2# |
58570-10010-01 |
— | ||
|
58560
|
58560
58570-11020-06
Carpet Assy, Floor, Rear
[11.1975 - 01.1976] KP36..V..RHD W/O SEAT BELT,BROWN,BROWN,TRIM4# |
58570-11020-06 |
— | ||
| replacement | |||||
|
58560
|
58560
58570-10010-06
Carpet Assy, Floor, Rear
[11.1975 - 01.1976] KP36..V..RHD W/O SEAT BELT,BROWN,BROWN,TRIM4# |
58570-10010-06 |
— | ||
|
58560
|
58560
58570-11021-01
Carpet Assy, Floor, Rear
[09.1976 - 01.1977] KP36..V W/O SEAT BELT,BLACK,BLACK,TRIM2# |
58570-11021-01 |
— | ||
| replacement | |||||
|
58560
|
58560
58570-10011-01
Carpet Assy, Floor, Rear
[09.1976 - 01.1977] KP36..V W/O SEAT BELT,BLACK,BLACK,TRIM2# |
58570-10011-01 |
— | ||
|
58560
|
58560
58570-11021-06
Carpet Assy, Floor, Rear
[09.1976 - 01.1977] KP36..V W/O SEAT BELT,BROWN,BROWN,TRIM4# |
58570-11021-06 |
— | ||
| replacement | |||||
|
58560
|
58560
58570-10011-06
Carpet Assy, Floor, Rear
[09.1976 - 01.1977] KP36..V W/O SEAT BELT,BROWN,BROWN,TRIM4# |
58570-10011-06 |
— | ||
|
58560
|
58560
58570-11022-01 Carpet Assy, Floor, RearFLOOR, REAR [01.1977 - 05.1977] KP36..V W/O SEAT BELT,BLACK,BLACK,TRIM2# |
58570-11022-01 |
US $176.18 |
||
| replacement | |||||
|
58560
|
58560
58570-10012-01
Carpet Assy, Floor, Rear
[01.1977 - 05.1977] KP36..V W/O SEAT BELT,BLACK,BLACK,TRIM2# |
58570-10012-01 |
— | ||
|
58560
|
58560
58570-11022-06 Carpet Assy, Floor, RearFLOOR, REAR [01.1977 - 05.1977] KP36..V W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4# |
58570-11022-06 |
US $176.18 |
||
| replacement | |||||
|
58560
|
58560
58570-10012-06
Carpet Assy, Floor, Rear
[01.1977 - 05.1977] KP36..V W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4# |
58570-10012-06 |
— | ||
|
9016235018
|
9016235018
90162-35018 New Genuine Part |
90162-35018 |
US $2.18 |
||
