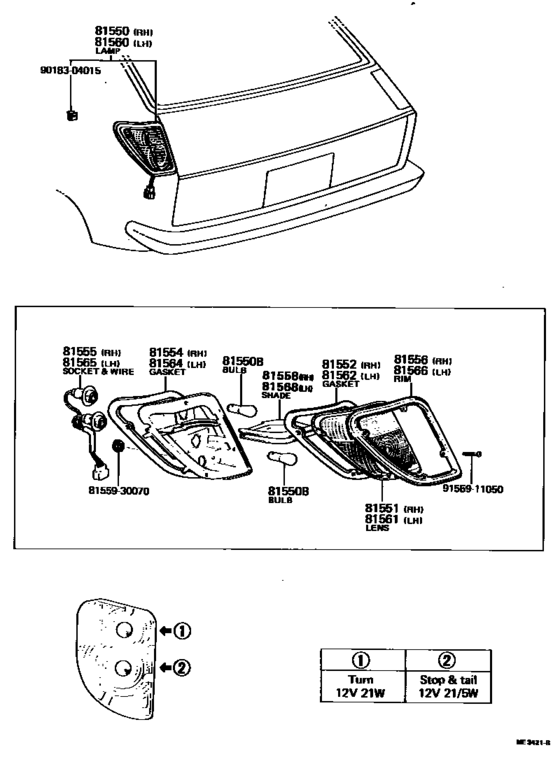

Rear Combination Lamp ([01.1972 - 09.1978] (7201-7809)V) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP36
- body
- V
- ENGINE
- 2K
- From
- 04.1969
- To
- 09.1978
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-11062
Lamp Assy, Rear Combination, Rh
[10.1973 - 09.1978] KP36..V AMBER-RED |
81550-11062 |
— | ||
|
81550
|
81550
81550-19165
Lamp Assy, Rear Combination, Rh
[04.1969 - 12.1971] KP36..V RED |
81550-19165 |
— | ||
|
81550
|
81550
81550-19565
Lamp Assy, Rear Combination, Rh
[01.1972 - 10.1973] KP36..V AMBER-RED |
81550-19565 |
— | ||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[01.1972 - 09.1978] KP30,36..SED,V 12V 21W,12V 21W |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-11230 Bulb, Fog Lamp[04.1969 - 12.1971] KP3# 12V 23W,12V 23W |
99132-11230 |
US $3.05 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[01.1972 - 08.1988] KP3# 12V 21/5W,12V 21/5W |
99132-21210 |
from US $2.74 |
||
|
81551
|
81551
81551-11050
Lens, Rear Combination Lamp, Rh
[04.1969 - 12.1971] KP36..V RED |
81551-11050 |
— | ||
|
81551
|
81551
81551-11051
Lens, Rear Combination Lamp, Rh
[01.1972 - 09.1978] KP36..V AMBER-RED |
81551-11051 |
— | ||
|
81552
|
81552
81552-11050
Gasket, Rear Combination Lamp Lens, Rh
[04.1969 - 09.1978] KP36..V |
81552-11050 |
— | ||
|
81554
|
81554
81554-11050
Gasket, Rear Combination Lamp Body, Rh
[04.1969 - 09.1978] KP36..V |
81554-11050 |
— | ||
|
81555
|
81555
81555-11052
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[10.1973 - 09.1978] KP36..V |
81555-11052 |
— | ||
|
81555
|
81555
81555-11061
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1972 - 10.1973] KP36..V |
81555-11061 |
— | ||
|
81556
|
81556
81556-11050
Rim, Rear Combination Lamp, Rh
[04.1969 - 09.1978] KP36..V |
81556-11050 |
— | ||
|
81558
|
81558
81557-11051
Shade, Rear Combination Lamp, No.1 Rh
[01.1972 - 09.1978] KP36..V |
81557-11051 |
— | ||
|
81560
|
81560
81560-11042
Lamp Assy, Rear Combination, Lh
[10.1973 - 09.1978] KP36..V AMBER-RED |
81560-11042 |
— | ||
|
81560
|
81560
81560-19155
Lamp Assy, Rear Combination, Lh
[04.1969 - 12.1971] KP36..V RED |
81560-19155 |
— | ||
|
81560
|
81560
81560-19545
Lamp Assy, Rear Combination, Lh
[01.1972 - 10.1973] KP36..V AMBER-RED |
81560-19545 |
— | ||
|
81561
|
81561
81561-11030
Lens, Rear Combination Lamp, Lh
[04.1969 - 12.1971] KP36..V RED |
81561-11030 |
— | ||
|
81561
|
81561
81561-11031
Lens, Rear Combination Lamp, Lh
[01.1972 - 09.1978] KP36..V AMBER-RED |
81561-11031 |
— | ||
|
81562
|
81562
81552-11050
Gasket, Rear Combination Lamp Lens, Rh
[04.1969 - 09.1978] KP36..V |
81552-11050 |
— | ||
|
81564
|
81564
81554-11050
Gasket, Rear Combination Lamp Body, Rh
[04.1969 - 09.1978] KP36..V |
81554-11050 |
— | ||
|
81565
|
81565
81555-10052
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[10.1973 - 09.1978] KP36..V |
81555-10052 |
— | ||
|
81565
|
81565
81555-11061
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1972 - 10.1973] KP36..V |
81555-11061 |
— | ||
|
81566
|
81566
81566-11030
Rim, Rear Combination Lamp, Lh
[04.1969 - 09.1978] KP36..V |
81566-11030 |
— | ||
|
81568
|
81568
81567-11031
Shade, Rear Combination Lamp, No.1 Lh
[01.1972 - 09.1978] KP36..V |
81567-11031 |
— | ||
|
8155930070
|
8155930070
81559-30070
Moulding, Rear Combination Lamp, Rh
|
81559-30070 |
— | ||
|
9018304015
|
9018304015
90183-04015 New Genuine Part |
90183-04015 |
US $2.77 |
||
|
9155911050
|
9155911050
91559-11050
New Genuine Part
|
91559-11050 |
— |
