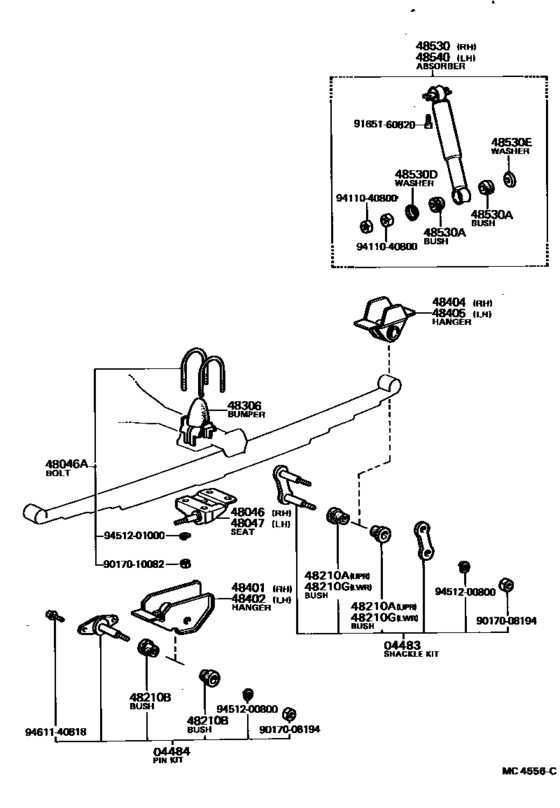

Rear Spring & Shock Absorber ([04.1969 - 09.1978] (6904-7809)V) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP36
- body
- V
- ENGINE
- 2K
- From
- 04.1969
- To
- 09.1978
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-10020 Shackle Kit, Rear SpringREAR SPRING [04.1969 - 09.1978] KP30,36..SED,V |
04483-10020 |
US $27.52 |
||
| replacement | |||||
|
04483
|
04483
04483-10030
Shackle Kit, Rear Spring
[04.1969 - 09.1978] KP30,36..SED,V |
04483-10030 |
— | ||
|
04484
|
04484
04484-10020 Pin Kit, Rear SpringREAR SPRING [04.1969 - 09.1978] KP30,36..SED,V |
04484-10020 |
US $23.73 |
||
|
48046
|
48046
48046-11020
Seat Sub-Assy, Spring U Bolt, Rh
[04.1969 - 09.1978] KP36..V |
48046-11020 |
— | ||
|
48046A
|
48046A
90118-10051 Bolt, U(For Rear Spring)U(FOR REAR SPRING) [04.1969 - 09.1978] KP30,36..SED,V |
90118-10051 |
US $9.90 |
||
| replacements | |||||
|
48046A
|
48046A
90117-10135 New Genuine Part[04.1969 - 09.1978] KP30,36..SED,V |
90117-10135 |
US $29.99 |
||
|
48046A
|
48046A
94110-51000 Nut(For Steering Center Arm)[04.1969 - 09.1978] KP30,36..SED,V |
94110-51000 |
from US $0.74 |
||
|
48046A
|
48046A
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)[04.1969 - 09.1978] KP30,36..SED,V |
94512-01000 |
from US $0.78 |
||
|
48047
|
48047
48047-11020
Seat Sub-Assy, Spring U Bolt, Lh
[04.1969 - 09.1978] KP36..V |
48047-11020 |
— | ||
|
48210A
|
48210A
90385-10015 Bush(For Rear Spring Shackle Upper)[04.1969 - 02.1976] KP3# |
90385-10015 |
US $10.75 |
||
|
48210B
|
48210B
90385-10055 Bush(For Rear Spring Pin)[04.1969 - 09.1978] KP30,36..SED,V |
90385-10055 |
US $8.59 |
||
|
48210G
|
48210G
90385-10015 Bush(For Rear Spring Shackle Upper)[04.1969 - 02.1976] KP3# |
90385-10015 |
US $10.75 |
||
|
48306
|
48306
48341-11031 Bumper Sub-Assy, Rear SpringREAR SPRING [04.1969 - 09.1978] KP36..V |
48341-11031 |
US $11.50 |
||
|
48401
|
48401
57711-10010
Bracket Sub-Assy, Rear Spring, Front Rh
[04.1969 - 09.1978] KP30,36..SED,V |
57711-10010 |
— | ||
|
48402
|
48402
57712-10010
Bracket Sub-Assy, Rear Spring, Front Lh
[04.1969 - 09.1978] KP30,36..SED,V |
57712-10010 |
— | ||
|
48404
|
48404
57702-11010
Bracket Sub-Assy, Rear Spring, Rear Rh
[04.1969 - 09.1978] KP36..V |
57702-11010 |
— | ||
|
48405
|
48405
57702-11010
Bracket Sub-Assy, Rear Spring, Rear Rh
[04.1969 - 09.1978] KP36..V |
57702-11010 |
— | ||
|
48530
|
48530
48531-19085 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [04.1969 - 12.1971] KP36..V |
48531-19085 |
US $88.82 |
||
| replacement | |||||
|
48530
|
48530
48531-19087 Absorber Assy, Shock, Rear Rh[04.1969 - 12.1971] KP36..V |
48531-19087 |
US $88.82 |
||
|
48530
|
48530
48531-19086 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [01.1972 - 09.1978] KP36..V |
48531-19086 |
US $88.82 |
||
| replacement | |||||
|
48530
|
48530
48531-19087 Absorber Assy, Shock, Rear Rh[01.1972 - 09.1978] KP36..V |
48531-19087 |
US $88.82 |
||
|
48530A
|
48530A
90385-12008 Bush(For Rear Shock Absorber)[04.1969 - 12.1971] KP3# |
90385-12008 |
US $5.38 |
||
|
48530D
|
48530D
90948-03001 Washer, Rear Shock Absorber Cushion, No.3REAR SHOCK ABSORBER CUSHION, NO.3 [04.1969 - 12.1971] KP3# |
90948-03001 |
US $1.60 |
||
|
48530D
|
48530D
90948-03002 Washer, Rear Shock Absorber Cushion, No.3REAR SHOCK ABSORBER CUSHION, NO.3 [01.1972 - 08.1988] KP36,37 |
90948-03002 |
US $1.75 |
||
|
48530E
|
48530E
90948-03001 Washer, Rear Shock Absorber Cushion, No.3REAR SHOCK ABSORBER CUSHION, NO.3 [01.1972 - 01.1974] KP36 |
90948-03001 |
US $1.60 |
||
|
48530E
|
48530E
90948-03002 Washer, Rear Shock Absorber Cushion, No.3REAR SHOCK ABSORBER CUSHION, NO.3 [04.1969 - 12.1971] KP3# |
90948-03002 |
US $1.75 |
||
|
48530E
|
48530E
90948-03013 Washer, Rear Shock Absorber Cushion, No.4REAR SHOCK ABSORBER CUSHION, NO.4 [01.1974 - 08.1988] KP36,37 |
90948-03013 |
US $3.06 |
||
|
48540
|
48540
48531-19085 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [04.1969 - 12.1971] KP36..V |
48531-19085 |
US $88.82 |
||
| replacement | |||||
|
48540
|
48540
48531-19087 Absorber Assy, Shock, Rear Rh[04.1969 - 12.1971] KP36..V |
48531-19087 |
US $88.82 |
||
|
48540
|
48540
48531-19086 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [01.1972 - 09.1978] KP36..V |
48531-19086 |
US $88.82 |
||
| replacement | |||||
|
48540
|
48540
48531-19087 Absorber Assy, Shock, Rear Rh[01.1972 - 09.1978] KP36..V |
48531-19087 |
US $88.82 |
||
|
9017008194
|
9017008194
90170-08194
Nut(For Backing Plate To Rear Axle Housing Setting)
|
90170-08194 |
— | ||
| replacement | |||||
|
9017008194
|
9017008194
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.87 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9461140818
|
9461140818
94611-40818
New Genuine Part
|
94611-40818 |
— | ||
