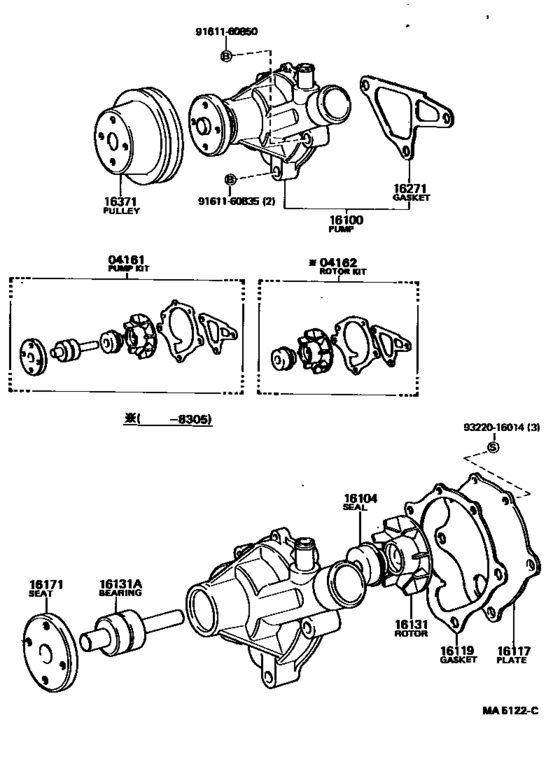

Water Pump ([07.1970 - ] (7007- )) Diagram Toyota TOYOTA1000
- Year
- 1969 - 1978
- Sales region
- General
- Frame
- KP36
- body
- V
- ENGINE
- 2K
- From
- 04.1969
- To
- 09.1978
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04161
|
04161
04161-12010
Pump Kit, Water
[01.1972 - 04.1974] 2K..KP3# |
04161-12010 |
— | ||
|
04161
|
04161
04161-13010
Pump Kit, Water
[07.1977 - 06.1981] 2K,3KH..KP3# |
04161-13010 |
— | ||
| replacement | |||||
|
04161
|
04161
04161-13013
Pump Kit, Water
[07.1977 - 06.1981] 2K,3KH..KP3# |
04161-13013 |
— | ||
|
04161
|
04161
04161-22011
Pump Kit, Water
[04.1969 - 06.1970] 2K..KP3# |
04161-22011 |
— | ||
|
04161
|
04161
04161-22012
Pump Kit, Water
[07.1970 - 12.1971] 2K..KP3# |
04161-22012 |
— | ||
|
04161
|
04161
04161-24010
Pump Kit, Water
[04.1974 - 07.1975] 2K..KP3# |
04161-24010 |
— | ||
| replacement | |||||
|
04161
|
04161
04161-24011
Pump Kit, Water
[04.1974 - 07.1975] 2K..KP3# |
04161-24011 |
— | ||
|
04161
|
04161
04161-24011
Pump Kit, Water
[07.1975 - 07.1977] 2K..KP3# |
04161-24011 |
— | ||
|
04162
|
04162
04162-13010
Rotor Kit, Water Pump
[07.1977 - 10.1979] 2K,3KH..KP3# |
04162-13010 |
— | ||
| replacement | |||||
|
04162
|
04162
04162-13013
Rotor Kit, Water Pump
[07.1977 - 10.1979] 2K,3KH..KP3# |
04162-13013 |
— | ||
|
04162
|
04162
04162-22010
Rotor Kit, Water Pump
[04.1969 - 07.1970] 2K..KP3# |
04162-22010 |
— | ||
|
04162
|
04162
04162-22011 Rotor Kit, Water PumpWATER PUMP [07.1970 - 07.1975] 2K..KP3# |
04162-22011 |
US $25.48 |
||
| replacement | |||||
|
04162
|
04162
04162-22012
Rotor Kit, Water Pump
[07.1970 - 07.1975] 2K..KP3# |
04162-22012 |
— | ||
|
04162
|
04162
04162-22012
Rotor Kit, Water Pump
[07.1975 - 07.1977] 2K..KP3# |
04162-22012 |
— | ||
|
16100
|
16100
16100-29016 Pump Assy, Engine WaterWATER [04.1969 - 04.1974] 2K..KP3# |
16100-29016 |
US $129.58 |
||
| replacement | |||||
|
16100
|
16100
16100-29018 Pump Assy, Engine Water[04.1969 - 04.1974] 2K..KP3# |
16100-29018 |
US $107.74 |
||
|
16100
|
16100
16100-29027 Pump Assy, Engine WaterWATER [04.1974 - 07.1977] 2K..KP3# |
16100-29027 |
US $109.20 |
||
| replacement | |||||
|
16100
|
16100
16100-29066
Pump Assy, Engine Water
[04.1974 - 07.1977] 2K..KP3# |
16100-29066 |
— | ||
|
16100
|
16100
16100-29028 Pump Assy, Engine WaterWATER [07.1977 - 05.1983] 2K,3KH..KP3# |
16100-29028 |
US $110.66 |
||
| replacement | |||||
|
16100
|
16100
16100-29066
Pump Assy, Engine Water
[07.1977 - 05.1983] 2K,3KH..KP3# |
16100-29066 |
— | ||
|
16104
|
16104
16104-22010 Seal Set, Water PumpWATER PUMP [07.1970 - 07.1975] 2K..KP3# |
16104-22010 |
US $36.40 |
||
|
16104
|
16104
16104-30011 Seal Set, Water PumpWATER PUMP [04.1969 - 07.1970] 2K..KP3# |
16104-30011 |
US $29.70 |
||
| replacement | |||||
|
16104
|
16104
16104-41040 Seal Set, Water PumpWATER PUMP [04.1969 - 07.1970] 2K..KP3# |
16104-41040 |
US $29.99 |
||
|
16104
|
16104
16104-41110
Seal Set, Water Pump
[07.1975 - 08.1979] 2K,3KH..KP3# |
16104-41110 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[07.1975 - 08.1979] 2K,3KH..KP3# |
16104-15020 |
US $21.26 |
||
|
16117
|
16117
16117-13010
Plate, Water Pump
[07.1977 - 05.1983] 2K,3KH..KP3# |
16117-13010 |
— | ||
|
16117
|
16117
16117-22011
Plate, Water Pump
[04.1969 - 07.1977] 2K..KP3# |
16117-22011 |
— | ||
|
16119
|
16119
16124-22010 Gasket, Water Pump BodyWATER PUMP BODY [04.1969 - 06.1981] 2K,3KH..KP3# |
16124-22010 |
US $5.24 |
||
| replacement | |||||
|
16119
|
16119
16124-24015 Gasket, Water Pump Body[04.1969 - 06.1981] 2K,3KH..KP3# |
16124-24015 |
US $4.66 |
||
|
16131
|
16131
16131-13010 Rotor, Water Pump[07.1977 - 08.1988] 2K,3KH..KP3# |
16131-13010 |
US $9.32 |
||
| replacement | |||||
|
16131
|
16131
16131-13011 Rotor, Water Pump[07.1977 - 08.1988] 2K,3KH..KP3# |
16131-13011 |
US $9.17 |
||
|
16131
|
16131
16131-22010 Rotor, Water PumpWATER PUMP [04.1969 - 11.1969] 2K..KP3# |
16131-22010 |
US $13.10 |
||
| replacement | |||||
|
16131
|
16131
16131-22011
Rotor, Water Pump
[04.1969 - 11.1969] 2K..KP3# |
16131-22011 |
— | ||
|
16131
|
16131
16131-22011
Rotor, Water Pump
[11.1969 - 07.1975] 2K..KP3# |
16131-22011 |
— | ||
|
16131
|
16131
16131-22012 Rotor, Water PumpWATER PUMP [07.1975 - 03.1976] 2K..KP3# |
16131-22012 |
US $11.21 |
||
| replacement | |||||
|
16131
|
16131
16131-24030
Rotor, Water Pump
[07.1975 - 03.1976] 2K..KP3# |
16131-24030 |
— | ||
|
16131
|
16131
16131-24030
Rotor, Water Pump
[03.1976 - 07.1977] 2K..KP3# |
16131-24030 |
— | ||
|
16131A
|
16131A
90369-30002
Bearing, Water Pump
[04.1969 - 04.1974] 2K..KP3# |
90369-30002 |
— | ||
|
16131A
|
16131A
90369-30063 Bearing, Water PumpWATER PUMP [04.1974 - 08.1988] 2K,3KH..KP3# |
90369-30063 |
US $38.15 |
||
|
16171
|
16171
16171-22011
Seat, Water Pump Pulley
[04.1969 - 04.1974] 2K..KP3# |
16171-22011 |
— | ||
|
16171
|
16171
16171-24030 Seat, Water Pump Pulley[04.1974 - 07.1975] 2K..KP3# |
16171-24030 |
US $14.41 |
||
|
16171
|
16171
16171-24031 Seat, Water Pump Pulley[07.1975 - 08.1988] 2K,3KH..KP3# |
16171-24031 |
US $14.71 |
||
|
16271
|
16271
16271-22010
Gasket, Water Pump
[04.1969 - 12.1978] 2K,3KH..KP3# |
16271-22010 |
— | ||
| replacement | |||||
|
16271
|
16271
16271-13030
Gasket, Water Pump
[04.1969 - 12.1978] 2K,3KH..KP3# |
16271-13030 |
— | ||
|
16371
|
16371
16371-22010 Pulley, FanFAN [04.1969 - 04.1974] 2K..KP3# |
16371-22010 |
US $16.02 |
||
|
16371
|
16371
16371-24050
Pulley, Fan
[04.1974 - 08.1988] 2K,3KH..KP3# |
16371-24050 |
— | ||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $2.15 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
from US $0.65 |
||
