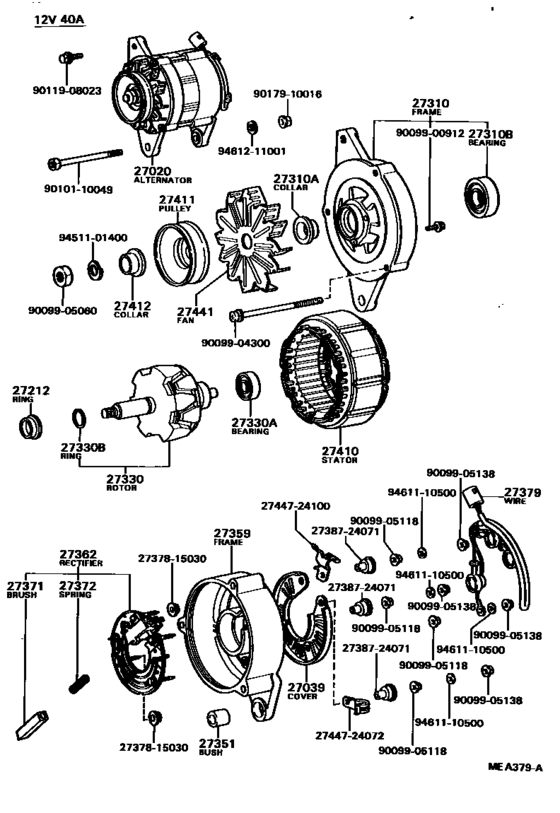

Alternator ([01.1981 - 08.1981] (8101-8108)3KH) Diagram Toyota TOYOTA1000
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- KP37
- body
- PIC
- ENGINE
- 3KH
- From
- 07.1977
- To
- 08.1981
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-12012 Alternator Assy[07.1975 - 01.1981] 2K,3KH..KP3# 12V 30A |
27020-12012 |
US $525.62 |
||
|
27020
|
27020
27020-13041 Alternator Assy[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27020-13041 |
US $771.68 |
||
|
27039
|
27039
27039-11014
Cover, Alternator Rear End
[04.1974 - 01.1981] 2K,3KH..KP3# 12V 30A |
27039-11014 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-12030
Cover, Alternator Rear End
[04.1974 - 01.1981] 2K,3KH..KP3# 12V 30A |
27039-12030 |
— | ||
|
27039
|
27039
27039-18011
Cover, Alternator Rear End
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27039-18011 |
— | ||
|
27212
|
27212
27212-39050
Ring, Space(For Alternator Rotor)
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27212-39050 |
— | ||
|
27212
|
27212
90099-19068 Ring, Space(For Alternator Rotor)[04.1969 - 01.1981] 2K,3KH..KP3# 12V 30A |
90099-19068 |
US $1.16 |
||
|
27310
|
27310
27310-13050
Frame Assy, Drive End, Alternator
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27310-13050 |
— | ||
|
27310
|
27310
27310-22012
Frame Assy, Drive End, Alternator
[04.1969 - 01.1981] 2K,3KH..KP3# 12V 30A |
27310-22012 |
— | ||
|
27310A
|
27310A
27412-31040
Collar Or Nut(For Alternator Drive End Frame)
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27412-31040 |
— | ||
|
27310A
|
27310A
27412-56040
Collar Or Nut(For Alternator Drive End Frame)
[07.1975 - 01.1981] 2K,3KH..KP3# 12V 30A |
27412-56040 |
— | ||
|
27310B
|
27310B
90099-10012 Bearing(For Alternator Drive End Frame)[02.1971 - 01.1981] 2K,3KH..KP3# 12V 30A |
90099-10012 |
US $8.74 |
||
|
27310B
|
27310B
90099-10126
Bearing(For Alternator Drive End Frame)
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
90099-10126 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10125 Bearing(For Alternator Drive End Frame)[01.1981 - 08.1981] 3KH..KP37 12V 40A |
90099-10125 |
from US $8.74 |
||
|
27330
|
27330
27330-22012
Rotor Assy, Alternator
[04.1969 - 01.1981] 2K,3KH..KP3# 12V 30A |
27330-22012 |
— | ||
|
27330
|
27330
27330-33010
Rotor Assy, Alternator
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27330-33010 |
— | ||
|
27330A
|
27330A
90099-10111
Bearing(For Alternator Rotor)
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
90099-10111 |
— | ||
| replacement | |||||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
90099-10116 |
— | ||
|
27330A
|
27330A
97110-06201
Bearing(For Alternator Rotor)
[04.1969 - 01.1981] 2K,3KH..KP3# 12V 30A,40A |
97110-06201 |
— | ||
|
27330B
|
27330B
90099-07048
Ring, Snap(For Alternator Rotor)
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
90099-07048 |
— | ||
|
27351
|
27351
27351-24020
Bush(For Alternator Rectifier End Frame)
[10.1973 - 01.1981] 2K,3KH..KP3# 12V 30A |
27351-24020 |
— | ||
|
27351
|
27351
27351-38051
Bush(For Alternator Rectifier End Frame)
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27351-38051 |
— | ||
|
27359
|
27359
27359-13040
Frame, Alternator Rectifier End
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27359-13040 |
— | ||
|
27359
|
27359
27359-31090
Frame, Alternator Rectifier End
[07.1975 - 01.1981] 2K,3KH..KP3# 12V 30A |
27359-31090 |
— | ||
|
27362
|
27362
27362-13040
Rectifier Assy, W/brush
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27362-13040 |
— | ||
|
27371
|
27371
27371-31011 Brush, Alternator[04.1969 - 08.1988] 2K,3KH..KP3# 12V 30A,40A |
27371-31011 |
from US $2.45 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[04.1969 - 08.1988] 2K,3KH..KP3# 12V 30A,40A |
27372-31011 |
— | ||
|
27379
|
27379
27037-24101
Wire, Alternator Lead
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27037-24101 |
— | ||
|
27410
|
27410
27410-11014
Stator Assy, Alternator
[04.1974 - 01.1981] 2K,3KH..KP3# 12V 30A |
27410-11014 |
— | ||
|
27410
|
27410
27410-15030
Stator Assy, Alternator
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27410-15030 |
— | ||
| replacement | |||||
|
27410
|
27410
27410-38120
Stator Assy, Alternator
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27410-38120 |
— | ||
|
27411
|
27411
27411-12012
Pulley, Alternator
[07.1975 - 01.1981] 2K,3KH..KP3# 12V 30A |
27411-12012 |
— | ||
|
27411
|
27411
27411-26111
Pulley, Alternator
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27411-26111 |
— | ||
|
27412
|
27412
27412-44030
Ring, Space(For Alternator Rotor)
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27412-44030 |
— | ||
| replacement | |||||
|
27412
|
27412
27412-44031
Collar, Spacer(For Alternator Pulley)
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27412-44031 |
— | ||
|
27441
|
27441
27441-31090
Fan, Alternator
[07.1975 - 01.1981] 2K,3KH..KP3# 12V 30A |
27441-31090 |
— | ||
|
27441
|
27441
27441-34030
Fan, Alternator
[01.1981 - 08.1981] 3KH..KP37 12V 40A |
27441-34030 |
— | ||
|
2737815030
|
2737815030
27378-15030
Insulator, Alternator, No.1
|
27378-15030 |
— | ||
|
2738724071
|
2738724071
27387-24071
Insulator, Terminal
|
27387-24071 |
— | ||
|
2744724072
|
2744724072
27447-24072
Clip, Alternator Cord
|
27447-24072 |
— | ||
|
2744724100
|
2744724100
27447-24100
Clip, Alternator Cord
|
27447-24100 |
— | ||
|
9009900912
|
9009900912
90099-00912
New Genuine Part
|
90099-00912 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905138
|
9009905138
90099-05138
New Genuine Part
|
90099-05138 |
— | ||
|
9010110049
|
9010110049
90101-10049
Bolt, Hexagon(For Air Pump Bracket Setting)
|
90101-10049 |
— | ||
| replacement | |||||
|
9010110049
|
9010110049
90105-10221 Bolt, Hexagon(For Air Pump Bracket Setting) |
90105-10221 |
from US $3.10 |
||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.91 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9461110500
|
9461110500
94611-10500 New Genuine Part |
94611-10500 |
US $2.06 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
