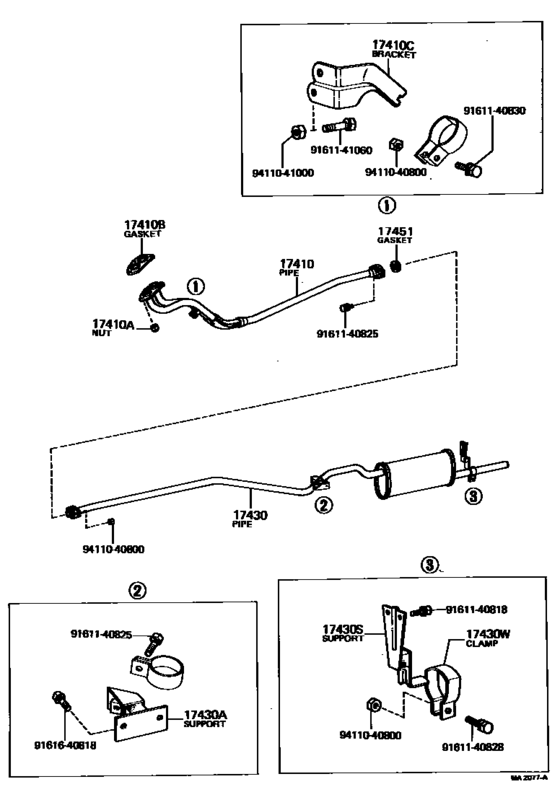

Exhaust Pipe ([07.1977 - 08.1981] (7707-8108)3KH) Diagram Toyota TOYOTA1000
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- KP37
- body
- PIC
- ENGINE
- 3KH
- From
- 07.1977
- To
- 08.1981
- Vehicle Model
- 1000
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-24120 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [07.1977 - 08.1981] 3KH..KP37 |
17410-24120 |
US $131.04 |
||
|
17410A
|
17410A
90179-10010 Nut, Exhaust Pipe Set Stud Bolt[05.1976 - 06.1984] 2K,3KH..KP3# |
90179-10010 |
from US $1.31 |
||
|
17410B
|
17410B
17451-22010
Gasket, Exhaust Pipe
[07.1977 - 08.1981] 3KH..KP37 |
17451-22010 |
— | ||
| replacement | |||||
|
17410B
|
17410B
17451-13010 Gasket, Exhaust Pipe[07.1977 - 08.1981] 3KH..KP37 |
17451-13010 |
US $9.61 |
||
|
17410C
|
17410C
17571-24050
Bracket, Exhaust Pipe Front (For Front)
[07.1977 - 08.1977] 3KH..KP37 |
17571-24050 |
— | ||
|
17410C
|
17410C
17571-24051 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1977 - 08.1981] 3KH..KP37 |
17571-24051 |
US $19.07 |
||
|
17430
|
17430
17430-24220
Pipe Assy, Exhaust, Tail
[07.1977 - 08.1981] 3KH..KP37 |
17430-24220 |
— | ||
|
17430A
|
17430A
17562-12030 Bracket, Exhaust Tail Pipe(For Front)EXHAUST TAIL PIPE(FOR FRONT) [07.1977 - 08.1981] 3KH..KP37 |
17562-12030 |
US $19.80 |
||
|
17430S
|
17430S
17563-12031 Bracket, Exhaust Tail Pipe (For Rear)EXHAUST TAIL PIPE (FOR REAR) [07.1977 - 08.1981] 3KH..KP37 |
17563-12031 |
US $20.53 |
||
|
17430W
|
17430W
90461-23276 Clamp No.2, Exhaust Tail Pipe (For Rear)EXHAUST TAIL PIPE(FOR FRONT) [07.1977 - 08.1981] 3KH..KP37 |
90461-23276 |
US $3.64 |
||
|
17451
|
17451
90917-06006
Gasket, Exhaust Pipe
[11.1975 - 08.1988] 2K,3KH..KP3# |
90917-06006 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06037 Gasket, Exhaust Pipe[11.1975 - 08.1988] 2K,3KH..KP3# |
90917-06037 |
from US $2.98 |
||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161140828
|
9161140828
91611-40828 Bolt(For Clutch Release Cylinder Setting) |
91611-40828 |
US $2.77 |
||
| replacement | |||||
|
9161140828
|
9161140828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9161140830
|
9161140830
91611-40830
Bolt(For Clutch Release Cylinder Setting)
|
91611-40830 |
— | ||
| replacement | |||||
|
9161140830
|
9161140830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.41 |
||
|
9161141060
|
9161141060
91611-41060 Bolt(For Clutch Release Cylinder Setting) |
91611-41060 |
US $2.77 |
||
| replacement | |||||
|
9161141060
|
9161141060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $2.15 |
||
|
9161640818
|
9161640818
91616-40818 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91616-40818 |
US $2.33 |
||
| replacement | |||||
|
9161640818
|
9161640818
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
