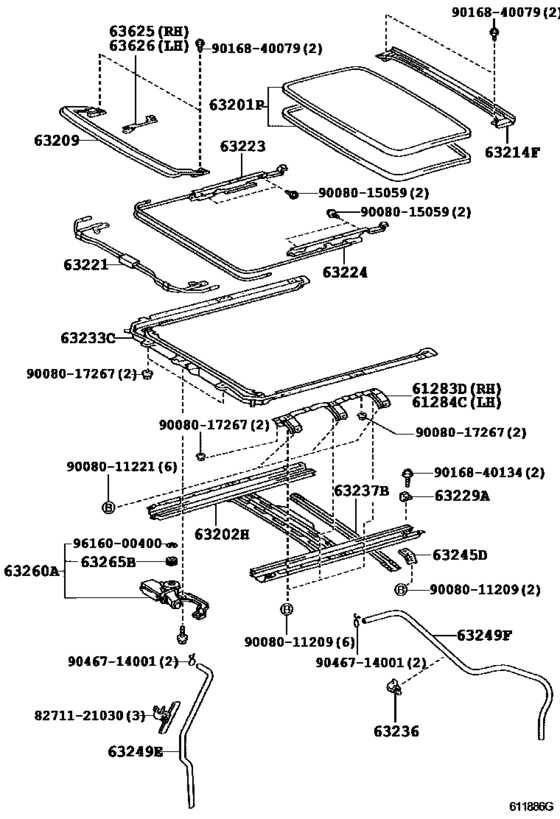

Roof Panel & Back Panel ([10.2003 - ] (0310- )UCK31,41) Diagram Toyota TUNDRA
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- UCK41
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- DECK
- SD
- CAB
- DCB
- From
- 08.2004
- To
- 12.2006
- Gear Shift Type
- 5HC
- Vehicle Model
- TUNDRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61283D
|
61283D
61283-0C011
Bracket, Sliding Roof Housing Side Mounting, Rh
[08.2004 -] UCK31,41 |
61283-0C011 |
— | ||
|
61284C
|
61284C
61284-0C011
Bracket, Sliding Roof Housing Side Mounting, Lh
[08.2004 -] UCK31,41 |
61284-0C011 |
— | ||
|
63201P
|
63201P
63201-0C010
Glass Sub-Assy, Sliding Roof
[08.2004 -] UCK31,41 |
63201-0C010 |
— | ||
|
63202H
|
63202H
63202-0C012
Rail Sub-Assy, Slide Roof
[08.2004 -] UCK31,41 |
63202-0C012 |
— | ||
|
63209
|
63209
63209-0C010
Panel Sub-Assy, Roof Wind Deflector
[08.2004 -] UCK31,41 |
63209-0C010 |
— | ||
|
63214F
|
63214F
63214-0C010
Channel, Roof Drip, Rear
[08.2004 -] UCK31,41 |
63214-0C010 |
— | ||
|
63221
|
63221
63221-0C010
Casing, Sliding Roof Cable Guide
[08.2004 -] UCK31,41 |
63221-0C010 |
— | ||
|
63223
|
63223
63223-0C010 Cable, Sliding Roof Drive, RhSLIDING ROOF DRIVE, RH [08.2004 -] UCK31,41 |
63223-0C010 |
US $259.17 |
||
|
63224
|
63224
63224-0C010 Cable, Sliding Roof Drive, LhSLIDING ROOF DRIVE, LH [08.2004 -] UCK31,41 |
63224-0C010 |
US $259.17 |
||
|
63229A
|
63229A
63229-28030 Stopper, Sliding Roof Sunshade[08.2004 -] UCK31,41 |
63229-28030 |
US $1.60 |
||
|
63233C
|
63233C
63233-0C010
Panel, Sliding Roof Housing
[08.2004 -] UCK31,41 |
63233-0C010 |
— | ||
|
63236
|
63236
63236-08030
Clamp, Sliding Roof Or Removable Roof Drain Hose
[12.2005 -] UCK31,41 |
63236-08030 |
— | ||
|
63236
|
63236
63236-34010 Clamp, Sliding Roof Or Removable Roof Drain Hose[08.2004 - 11.2005] UCK31,41 |
63236-34010 |
US $2.04 |
||
|
63237B
|
63237B
63237-0C010
Frame, Sliding Roof Housing, Rear
[08.2004 -] UCK31,41 |
63237-0C010 |
— | ||
|
63245D
|
63245D
63245-0C010
Bracket, Sliding Roof Housing Rear Mounting, Rh
[08.2004 -] UCK31,41 |
63245-0C010 |
— | ||
|
63249E
|
63249E
63249-0C010
Hose, Sliding Roof Drain
[08.2004 -] UCK31,41 |
63249-0C010 |
— | ||
|
63249F
|
63249F
63249-0C040
Hose, Sliding Roof Drain
[08.2004 -] UCK31,41 |
63249-0C040 |
— | ||
|
63249F
|
63249F
63249-0C070
Hose, Sliding Roof Drain
[08.2004 -] UCK31,41 W(SRS CURTAIN SHIELD AIR BAG) |
63249-0C070 |
— | ||
|
63260A
|
63260A
63260-0C010 Gear Sub-Assy, Sliding Roof DriveSLIDING ROOF DRIVE [08.2004 -] UCK31,41 |
63260-0C010 |
US $633.36 |
||
|
63265B
|
63265B
63265-30020 Gear, Sliding Roof Drive[08.2004 -] UCK31,41 |
63265-30020 |
US $20.79 |
||
|
63625
|
63625
63625-0C010
Block, Sliding Roof Guide, Rh
[08.2004 -] UCK31,41 |
63625-0C010 |
— | ||
|
63626
|
63626
63626-0C010
Block, Sliding Roof Guide, Lh
[08.2004 -] UCK31,41 |
63626-0C010 |
— | ||
|
8271121030
|
8271121030
82711-21030 Wire, Fuse To Fuse(for Combustion Heater) |
82711-21030 |
US $1.75 |
||
|
9008011209
|
9008011209
90080-11209
New Genuine Part
|
90080-11209 |
— | ||
|
9008011221
|
9008011221
90080-11221 New Genuine Part |
90080-11221 |
US $0.52 |
||
|
9008015059
|
9008015059
90080-15059 New Genuine Part |
90080-15059 |
US $1.60 |
||
|
9008017267
|
9008017267
90080-17267
New Genuine Part
|
90080-17267 |
— | ||
|
9016840079
|
9016840079
90168-40079 New Genuine Part |
90168-40079 |
US $1.75 |
||
|
9016840134
|
9016840134
90168-40134 New Genuine Part |
90168-40134 |
US $1.16 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.76 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
