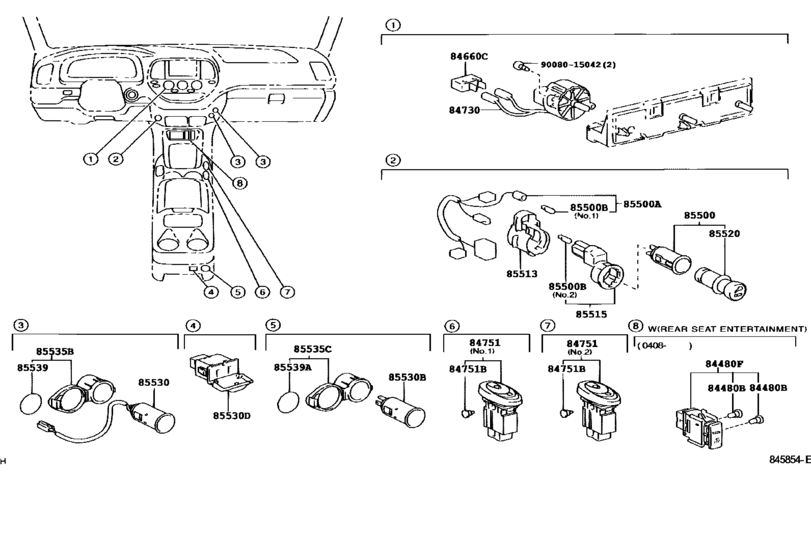

Switch & Relay & Computer ([10.2003 - ] INSTRMENT PANEL (0310- )UCK31,41) Diagram Toyota TUNDRA
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- UCK41
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- DECK
- SD
- CAB
- DCB
- From
- 08.2004
- To
- 12.2006
- Gear Shift Type
- 5HC
- Vehicle Model
- TUNDRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84480B
|
84480B
90011-01038
Bulb, Air Conditioner Control
[08.2004 -] UCK31,41 14V 0.84W,W(CAP) |
90011-01038 |
— | ||
|
84480B
|
84480B
90011-01065
Bulb, Main Switch Assy
[08.2004 -] UCK31,41 14V 0.63W |
90011-01065 |
— | ||
|
84480F
|
84480F
84480-0C030
Switch Assy, Main
[08.2004 -] UCK31,41 |
84480-0C030 |
— | ||
|
84660C
|
84660C
84660-0C010
Switch, Cooler
[08.2004 -] GSK30,UCK3#,4# |
84660-0C010 |
— | ||
|
84730
|
84730
84732-0C010
Switch Assy, Heater Blower
[08.2004 -] GSK30,UCK3#,4# |
84732-0C010 |
— | ||
|
84751
|
84751
84751-0C010
Switch, Seat Heater
[08.2004 -] UCK31,41..LIMD NO.1 |
84751-0C010 |
— | ||
|
84751
|
84751
84751-0C020
Switch, Seat Heater
[08.2004 -] UCK31,41..LIMD NO.2 |
84751-0C020 |
— | ||
|
85500
|
85500
85500-02011 Lighter Assy, Cigarette[08.2004 -] GSK30,UCK3#,4# |
85500-02011 |
US $40.04 |
||
|
85500A
|
85500A
82390-0C020
Wire, Cigarette Lighter
[08.2004 -] UCK30;UCK40..USA;UCK40..ACB..CND;GSK30,UCK31,41..LIMD,SR5 W(ILLUMINATION) |
82390-0C020 |
— | ||
|
85500B
|
85500B
84999-10250 Bulb, Key Cylinder Lamp[08.2004 -] UCK30;UCK40..USA;UCK40..ACB..CND;GSK30,UCK31,41..LIMD,SR5 14V 1.4W,NO.2 |
84999-10250 |
from US $4.70 |
||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[08.2004 -] UCK30;UCK40..USA;UCK40..ACB..CND;GSK30,UCK31,41..LIMD,SR5 14V 1.4W,NO.1 |
90981-11014 |
from US $1.92 |
||
|
85513
|
85513
85513-02010 Cover, Cigarette Lighter[08.2004 -] GSK30,UCK3#,4# |
85513-02010 |
US $5.10 |
||
|
85515
|
85515
85515-02040 Stay, Cigarette Lighter Bezel[08.2004 -] UCK30;UCK40..USA;UCK40..ACB..CND;GSK30,UCK31,41..LIMD,SR5 |
85515-02040 |
US $20.82 |
||
|
85520
|
85520
85520-06020 Knob And Element Assy, Cigarette Lighter[08.2004 -] GSK30,UCK3#,4# |
85520-06020 |
US $26.94 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[08.2004 -] GSK30,UCK3#,4# |
85530-33020 |
from US $15.52 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[08.2004 -] GSK30,UCK3#,4# |
85530-06010 |
from US $26.06 |
||
|
85530
|
85530
85530-34010 Socket Assy, Power Outlet, No.1POWER POINT [08.2004 -] UCK31,41 W(CONSOL BOX) |
85530-34010 |
US $37.56 |
||
|
85530B
|
85530B
85530-33020 Socket Assy, Power Outlet, No.1[08.2004 -] UCK31,41 |
85530-33020 |
from US $15.52 |
||
| replacement | |||||
|
85530B
|
85530B
85530-06010 Socket Assy, Power Outlet, No.1[08.2004 -] UCK31,41 |
85530-06010 |
from US $26.06 |
||
|
85530D
|
85530D
85530-34030-B0 Socket Assy, Power Outlet, No.2POWER POINT, NO.2 [08.2004 -] UCK31,41 DK.CHARCOAL,TRIM11 |
85530-34030-B0 |
US $37.56 |
||
|
85530D
|
85530D
85530-34030-B1 Socket Assy, Power Outlet, No.2POWER POINT, NO.2 [08.2004 -] UCK31,41 DK.GRAY,TRIM12 |
85530-34030-B1 |
US $37.56 |
||
|
85530D
|
85530D
85530-34030-E1 Socket Assy, Power Outlet, No.2POWER POINT, NO.2 [08.2004 -] UCK31,41 SANDAL WOOD,TRIM42,43 |
85530-34030-E1 |
US $37.56 |
||
|
85535B
|
85535B
85535-0C010-B0
Cover, Power Outlet Socket, No.1
[08.2004 -] UCK31,41 DK.CHARCOAL,TRIM11 |
85535-0C010-B0 |
— | ||
|
85535B
|
85535B
85535-0C010-B1
Cover, Power Outlet Socket, No.1
[08.2004 -] UCK31,41 DK.GRAY,TRIM12 |
85535-0C010-B1 |
— | ||
|
85535B
|
85535B
85535-0C010-E1
Cover, Power Outlet Socket, No.1
[08.2004 -] UCK31,41 SANDAL WOOD,TRIM42,43 |
85535-0C010-E1 |
— | ||
|
85535B
|
85535B
85535-0C020-B0
Cover, Power Outlet Socket, No.1
[08.2004 -] UCK31,41 W(CONSOLE BOX),DK.CHARCOAL,TRIM11 |
85535-0C020-B0 |
— | ||
|
85535B
|
85535B
85535-0C020-B1
Cover, Power Outlet Socket, No.1
[08.2004 -] UCK31,41 W(CONSOLE BOX),DK.GRAY,TRIM12 |
85535-0C020-B1 |
— | ||
|
85535B
|
85535B
85535-0C020-E1
Cover, Power Outlet Socket, No.1
[08.2004 -] UCK31,41 W(CONSOLE BOX),SANDAL WOOD,TRIM42,43 |
85535-0C020-E1 |
— | ||
|
85535C
|
85535C
85535-0C020-B0
Cover, Power Outlet Socket, No.1
[08.2004 -] UCK31,41 DK.CHARCOAL,TRIM11 |
85535-0C020-B0 |
— | ||
|
85535C
|
85535C
85535-0C020-B1
Cover, Power Outlet Socket, No.1
[08.2004 -] UCK31,41 DK.GRAY,TRIM12 |
85535-0C020-B1 |
— | ||
|
85535C
|
85535C
85535-0C020-E1
Cover, Power Outlet Socket, No.1
[08.2004 -] UCK31,41 SANDAL WOOD,TRIM42,43 |
85535-0C020-E1 |
— | ||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[08.2004 -] GSK30,UCK3#,4# |
85539-60020 |
US $1.41 |
||
|
85539A
|
85539A
85539-60020 Label, Power Outlet Notice[08.2004 -] UCK31,41 |
85539-60020 |
US $1.41 |
||
|
9008015042
|
9008015042
90080-15042
New Genuine Part
|
90080-15042 |
— | ||
