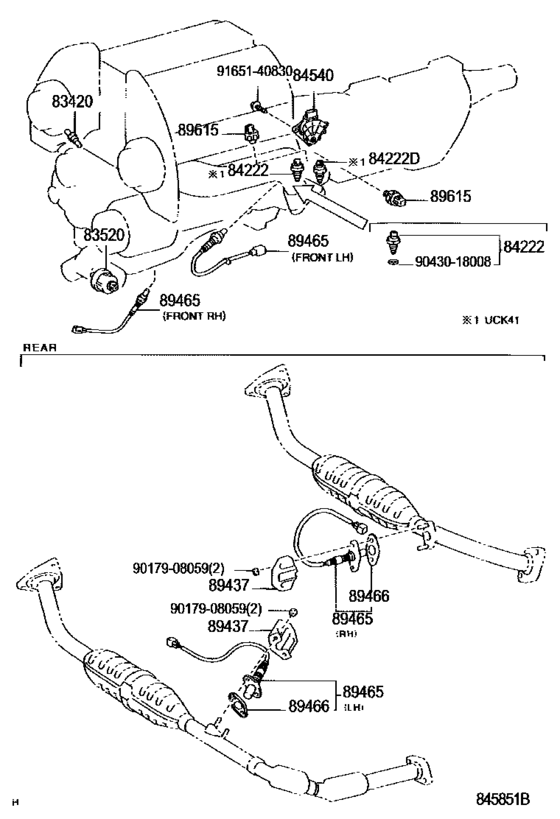

Switch & Relay & Computer ([10.2003 - 08.2004] ENGINE & TRANSMISSION (0310-0408)UCK31,41) Diagram Toyota TUNDRA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- UCK41
- grade
- SR5
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- DECK
- SD
- CAB
- DCB
- From
- 10.2003
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- TUNDRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[08.2002 - 08.2004] UCK3#,4# |
83420-20040 |
from US $35.65 |
||
|
83520
|
83520
83520-34020
Gage Assy,oil Pressure Sender
[08.2002 - 08.2004] VCK30..SR5;UCK3#,4#,VCK40 |
83520-34020 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-60051 Gage Assy,oil Pressure Sender[08.2002 - 08.2004] VCK30..SR5;UCK3#,4#,VCK40 |
83520-60051 |
from US $37.54 |
||
|
84222
|
84222
84222-12010 Switch, Transfer Indicator, No.1[08.2002 - 08.2004] UCK4# |
84222-12010 |
from US $49.25 |
||
|
84222D
|
84222D
84222-35121 Switch, Transfer Indicator, No.1[10.2003 - 08.2004] UCK41 |
84222-35121 |
from US $48.50 |
||
|
84540
|
84540
84540-30320 Switch Assy, Neutral Start[08.2002 - 08.2004] UCK3#,4#,VCK30,40..4HC |
84540-30320 |
US $174.24 |
||
|
89437
|
89437
89437-42010 Cover, Sensor[08.2002 - 08.2004] UCK3#,4# |
89437-42010 |
US $12.08 |
||
|
89465
|
89465
89465-09320 Sensor, OxygenOXYGEN [08.2002 - 08.2004] UCK4# REAR RH |
89465-09320 |
US $223.49 |
||
|
89465
|
89465
89465-09380 Sensor, OxygenOXYGEN [08.2002 - 08.2004] UCK4# REAR LH |
89465-09380 |
US $139.78 |
||
|
89465
|
89465
89465-0C140
Sensor, Oxygen
[05.2003 - 08.2004] UCK3#,4# PART NUMBER LABEL=89465-0C140,FRONT LH |
89465-0C140 |
— | ||
|
89465
|
89465
89465-0C150
Sensor, Oxygen
[05.2003 - 08.2004] UCK3#,4# PART NUMBER LABEL=89465-0C150,FRONT RH |
89465-0C150 |
— | ||
|
89465
|
89465
89465-34120 Sensor, OxygenOXYGEN [08.2002 - 08.2004] UCK3#,4# PART NUMBER LABEL=89465-34120,FRONT LH |
89465-34120 |
US $157.25 |
||
|
89465
|
89465
89465-34130 Sensor, OxygenOXYGEN [08.2002 - 08.2004] UCK3#,4# PART NUMBER LABEL=89465-34130,FRONT RH |
89465-34130 |
US $157.25 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[08.2002 - 08.2004] UCK3#,4#,VCK30,40 |
89466-20020 |
from US $13.88 |
||
|
89615
|
89615
89615-52010 Sensor, Knock Control[08.2002 - 08.2004] UCK3#,4# |
89615-52010 |
from US $134.67 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
