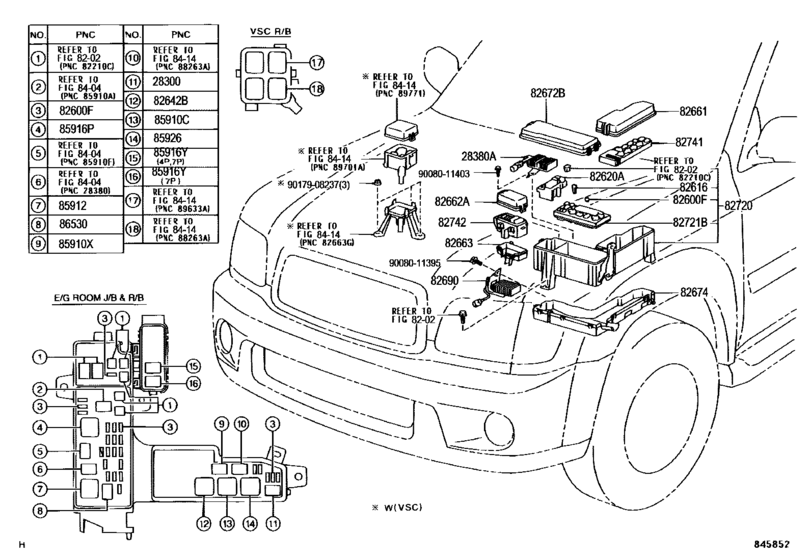

Switch & Relay & Computer ([10.2003 - 08.2004] ENGINE ROOM (0310-0408)UCK31,41) Diagram Toyota TUNDRA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- UCK41
- grade
- SR5
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- DECK
- SD
- CAB
- DCB
- From
- 10.2003
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- TUNDRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[08.2002 - 08.2004] 2UZFE,5VZFE..UCK3#,4#,VCK30,40 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[08.2002 - 08.2004] 2UZFE,5VZFE..UCK3#,4#,VCK30,40 |
28300-21020 |
from US $40.58 |
||
|
28380A
|
28380A
23080-50070 Resister, Fuel PumpFUEL PUMP [08.2002 - 08.2004] 2UZFE..UCK3#,4# |
23080-50070 |
US $75.71 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[08.2002 - 08.2004] UCK3#,4#,VCK30,40 7.5A,MINI FUSE |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[08.2002 - 08.2004] UCK3#,4#,VCK30,40 10A,MINI FUSE |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[10.2003 - 08.2004] UCK31,41 15A,MINI FUSE |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[10.2003 - 08.2004] UCK31,41 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[08.2002 - 08.2004] UCK3#,4#,VCK30,40 30A,MINI FUSE |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[10.2003 - 08.2004] UCK31,41 25A,MINI FUSE |
90080-82033 |
— | ||
|
82616
|
82616
82616-58010 Puller, Fuse[10.2003 - 08.2004] UCK31,41 |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-0C010
Block Assy, Fusible Link
[10.2003 - 08.2004] UCK31,41 |
82620-0C010 |
— | ||
|
82642B
|
82642B
90987-02025 Relay[08.2002 - 08.2004] UCK3#,4#,VCK30,40 |
90987-02025 |
from US $44.54 |
||
|
82661
|
82661
82661-0C130
Cover, Relay Block, No.1
[10.2003 - 08.2004] UCK31,41 |
82661-0C130 |
— | ||
|
82662A
|
82662A
82662-0C010
Cover, Relay Block, Upper, No.1
[10.2003 - 08.2004] UCK31,41 |
82662-0C010 |
— | ||
|
82663
|
82663
82663-0C040
Cover, Relay Block, Lower
[10.2003 - 08.2004] UCK31,41 |
82663-0C040 |
— | ||
|
82672B
|
82672B
82672-0C050
Cover, Junction Block
[10.2003 - 08.2004] UCK31,41 |
82672-0C050 |
— | ||
|
82672B
|
82672B
82672-0C060
Cover, Junction Block
[10.2003 - 08.2004] UCK31,41 W(VSC) |
82672-0C060 |
— | ||
|
82674
|
82674
82674-0C020
Cover, Junction Block Lower
[10.2003 - 08.2004] UCK31,41 |
82674-0C020 |
— | ||
| replacement | |||||
|
82674
|
82674
82674-0C021
Cover, Junction Block Lower
[10.2003 - 08.2004] UCK31,41 |
82674-0C021 |
— | ||
|
82690
|
82690
82690-34020 Resistor Assy, Dim Dip LampDIM DIP LAMP [08.2002 - 08.2004] UCK3#,4#,VCK30,40 |
82690-34020 |
US $112.11 |
||
|
82720
|
82720
82720-0C011
Block Assy, Engine Room Junction
[10.2003 - 08.2004] UCK31,41 |
82720-0C011 |
— | ||
|
82721B
|
82721B
82721-0C010
Block, Engine Room Junction
[10.2003 - 08.2004] UCK31,41 |
82721-0C010 |
— | ||
|
82741
|
82741
82741-0C020
Block, Engine Room Relay
[10.2003 - 08.2004] UCK31,41 |
82741-0C020 |
— | ||
|
82742
|
82742
82741-0C050
Block, Engine Room Relay, No.2
[10.2003 - 08.2004] UCK31,41 |
82741-0C050 |
— | ||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[08.2002 - 08.2004] UCK3#,4#,VCK30,40 |
90987-04010 |
from US $42.71 |
||
|
85910X
|
85910X
90084-98031 Relay, Ignition, No.1[08.2002 - 08.2004] UCK3#,4#,VCK30,40..LIMD,SR5 |
90084-98031 |
US $63.48 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[10.2003 - 08.2004] UCK31,41 |
90987-04010 |
from US $42.71 |
||
|
85916P
|
85916P
90987-02025 Relay[08.2002 - 08.2004] UCK3#,4#,VCK30,40 |
90987-02025 |
from US $44.54 |
||
|
85916Y
|
85916Y
90084-98031 Relay, Ignition, No.1[10.2003 - 08.2004] UCK31,41 4P:REFR TO ILLUSTRTION |
90084-98031 |
US $63.48 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[08.2002 - 08.2004] UCK3#,4#,VCK30,40 |
90987-04010 |
from US $42.71 |
||
|
86530
|
86530
90084-98031 Relay, Ignition, No.1[10.2003 - 08.2004] UCK31,41 |
90084-98031 |
US $63.48 |
||
|
9008011395
|
9008011395
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9008011403
|
9008011403
90080-11403
New Genuine Part
|
90080-11403 |
— | ||
|
9017908237
|
9017908237
90179-08237 New Genuine Part |
90179-08237 |
US $1.76 |
||
